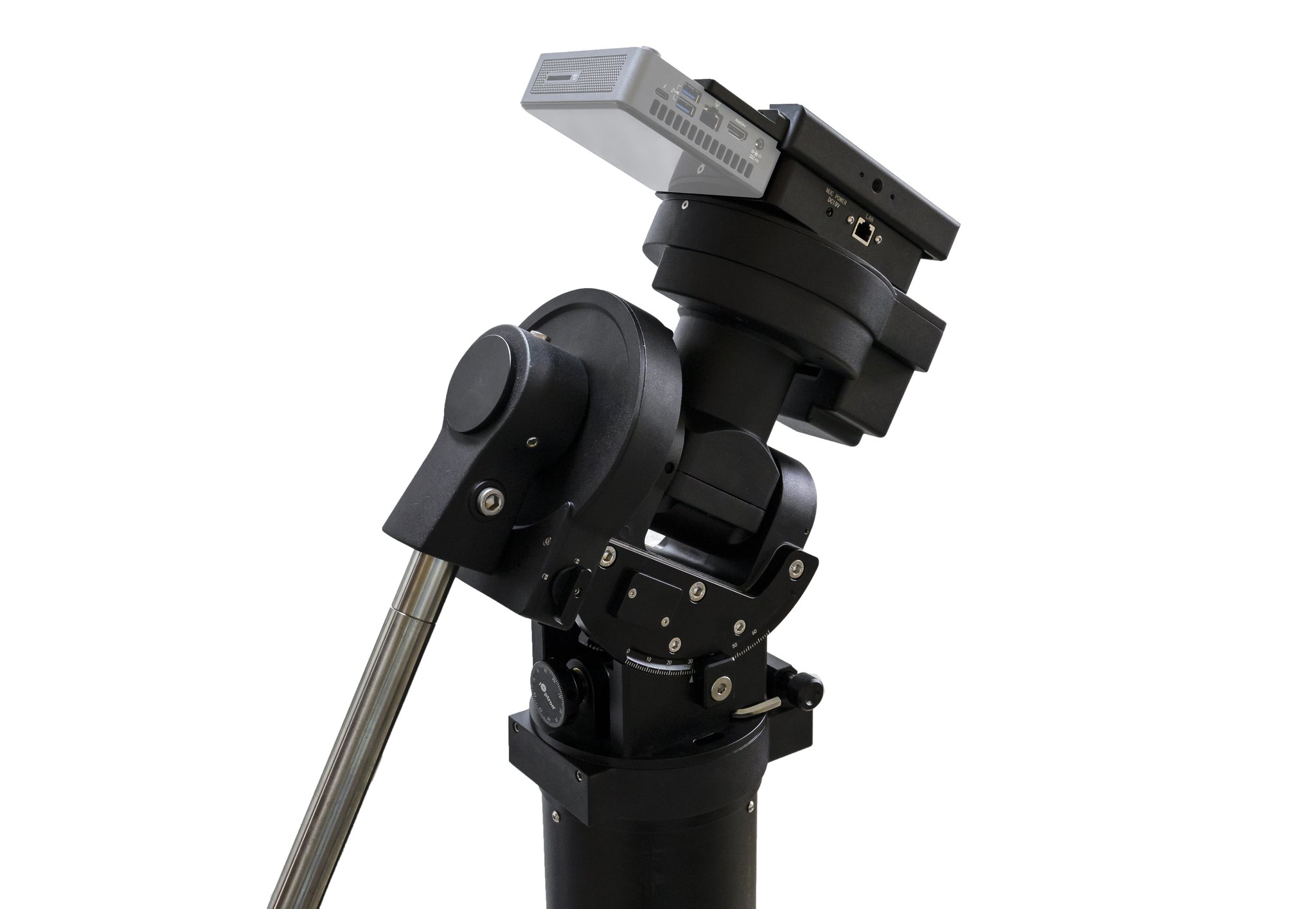

CEM70EC-NUC Center Balance Equatorial Mount w Encoders NUC Ready
iOptron
From $4,958.00
3 stores

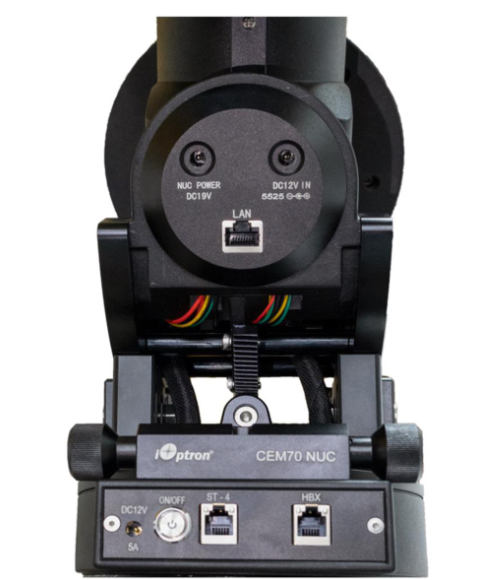

The iOptron CEM70EC-NUC is a center-balanced equatorial mount designed for serious astrophotographers and visual observers who require high payload capacity with portability. Featuring a unique center-balanced design with a 70-pound payload capacity yet weighing only 30 pounds, this GoTo mount offers exceptional stability and precise tracking with real-time Periodic Error Correction (RPEC) via high-resolution RA encoders. Built-in iPolar electronic polar scope technology and integrated cable management system work seamlessly with Intel NUC mini computers, making it ideal for fully-automated remote observing setups or portable field imaging rigs. The mount includes the Go2Nova 8407+ hand controller with a database of over 200,000 objects and ships with a protective hard case.
High Point Scientific
CEM70EC NUC Ready Center-Balanced Equatorial Mount with Hard Case - No Tripod
Ships to US only
$4,958.00
OPT
CEM70EC-NUC Center Balance Equatorial Mount w Encoders NUC Ready
Worldwide shipping
$4,958.00
Astroshop.eu
Mount CEM70EC-NUC
Worldwide shipping
€5,190.00
~$6,118.48
Specifications
| Payload Capacity | 70 lb |
| Encoders | High-resolution RA encoder for RPEC |
| Dec Worm Wheel Diameter | 151 mm |
| Pointing Accuracy | 0.07′ |
| RA Bearing Diameter | 80 mm |
| Counterweight Provided | 21 lb |
| Worm Diameter | 21.2 mm |
| RA Axle Diameter | 55 mm |
| Counterweight Shaft Length | 415 mm |
| RA Worm Wheel Diameter | 151 mm |
| Worm Period | 348 s |
| Tracking Accuracy (PE rms) | 3.5″ |
| Dec Axle Diameter | 55 mm |
| Mount Weight | 30 lb |
| Hand Controller | Go2Nova 8407+ with 200,000+ object database |
| Power Draw Slewing | 1.1 A |
| Periodic Error (by encoder) | 0.3″ |
| Features | iPolar electronic polar scope, Park & Zero position, Meridian flip, Built-in 32-channel GPS, Real-time PEC (RPEC), Dual-fit 8 inch Vixen & Losmandy dovetail saddle |
| Included Accessories | 21 lb counterweight, counterweight shaft, iPolar electronic polar scope, Go2Nova 8407+ hand controller, hard protective case |
| RA Worm Wheel Teeth | 248 |
| Stepper Motor | 1.8-degree with 128 micro-steps |
| Maximum Slew Speed | 3.75° |
| Latitude Adjustment Range | 0° |
| Power Draw Tracking | 0.6 A |
| Mount type | Center-Balanced Equatorial (German Equatorial) |
| NUC Computer Compatibility | Intel NUC (thickness ≤38mm) |
| Power Supply | 12 V |
| Dec Worm Wheel Teeth | 248 |
| DEC Bearing Diameter | 80 mm |
| Counterweight Shaft Diameter | 28 mm |
| Azimuth Adjustment Range | 4° |
