CEM40EC-NUC Center Balance Equatorial Mount w Encoders NUC Ready
iOptron
From $4,118.00
2 stores

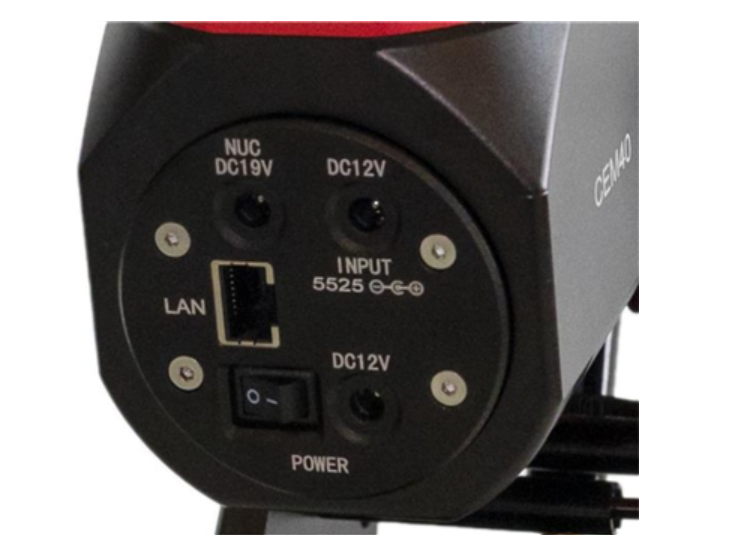

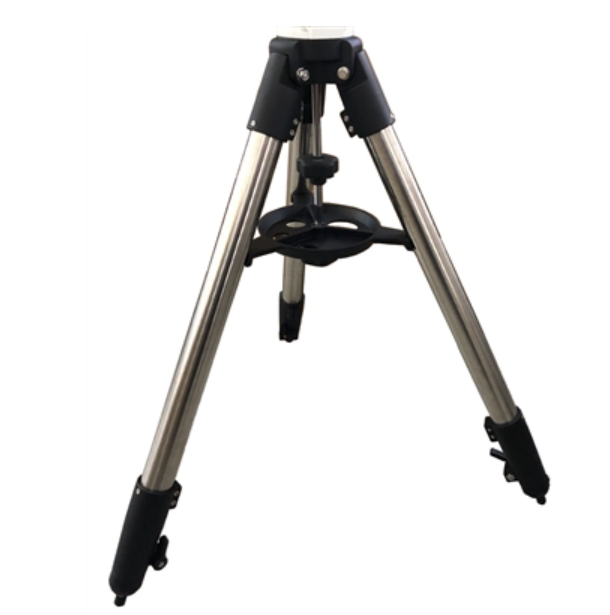

The iOptron CEM40EC-NUC redefines what a portable equatorial mount can do, featuring a center-balanced architecture, built-in high-resolution encoder on the RA axis, and true sub-arcsecond RMS tracking accuracy (< 0.25 arcsec). The CEM40EC-NUC is compatible with Intel NUC mini computers and equipped with high resolution RA encoders for real time PEC (RPEC). It includes the rugged 1.75" LiteRoc stainless steel tripod for enhanced field stability, and supports up to 40 pounds of payload while weighing just 15.8 pounds. A high-resolution encoder built into the RA axis allows for Real-Time Periodic Error Correction (RPEC) without requiring any user calibration, meaning the mount corrects tracking errors on the fly as they occur—no training, no stored curves, and no delay.
Specifications
| Mount type | Center-Balanced German Equatorial Mount (CEM) |
| Dovetail Compatibility | Losmandy and Vixen-style |
| Object Library | 212,000+ |
| Tripod Included | 1.75 inch LiteRoc |
| Mount Head Weight | 7.2 kg |
| GPS | 32-Channel |
| Max NUC Thickness | 38 mm |
| Max Slew Speed | 4.5° |
| Polar Finder | iPolar Electronic Polar Finder |
| Motor Resolution | 200″ |
| Operating Voltage | 12 V |
| Power Consumption (Tracking) | 0.6 A |
| RA Encoder | High-Resolution with RPEC |
| Tracking Accuracy | 0.25′ |
| Saddle Type | Universal Self-Centering Saddle (USCS) |
| Payload Capacity | 40 lb |
| NUC Computer Support | ✓ |
| Power Consumption (GoTo) | 0.9 A |
| Hand Controller | Go2Nova 8407+ |
| Counterweight Included | 11 lb |
