CEM70EC
iOptron
$5,329.00
1 stores

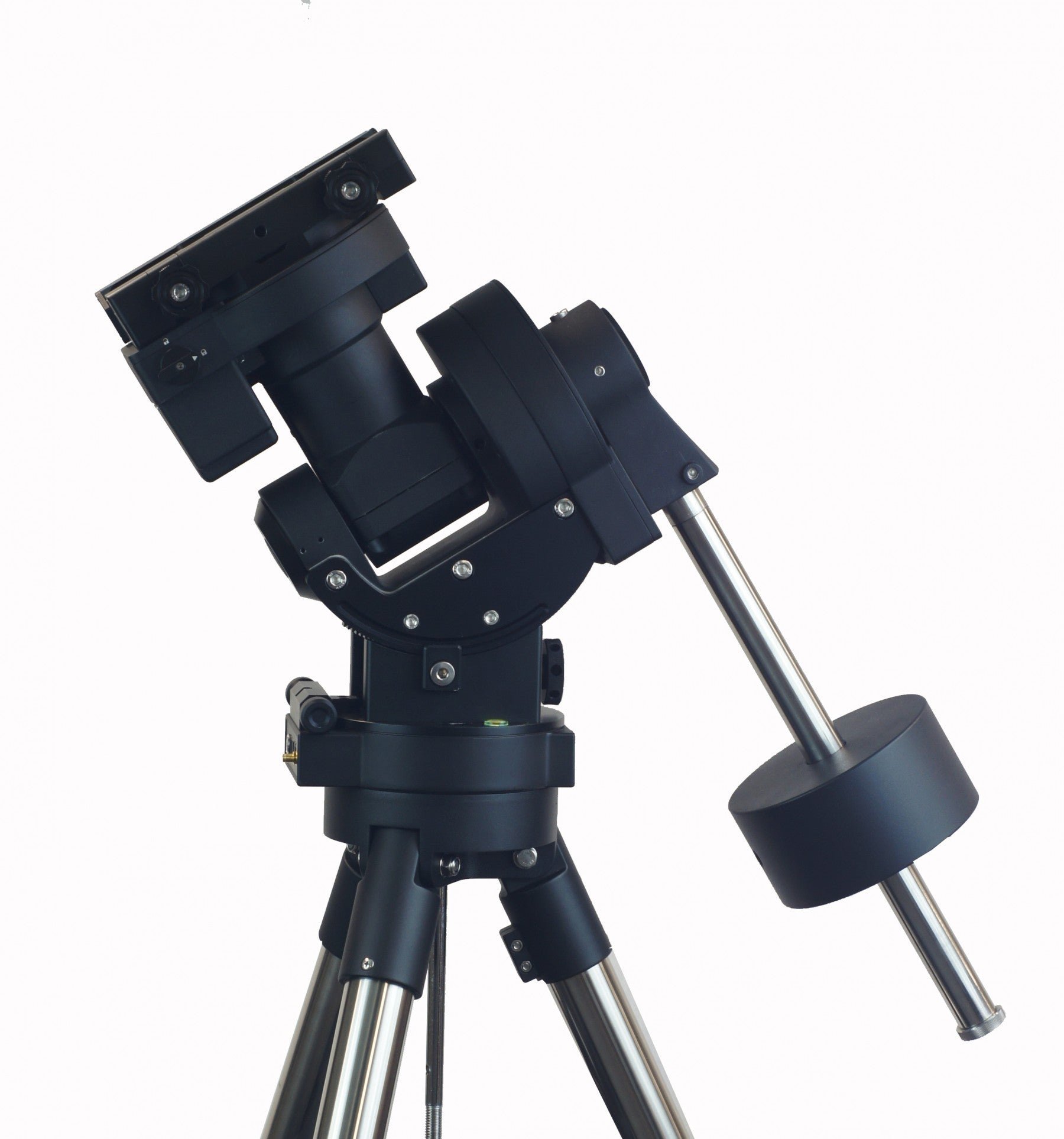

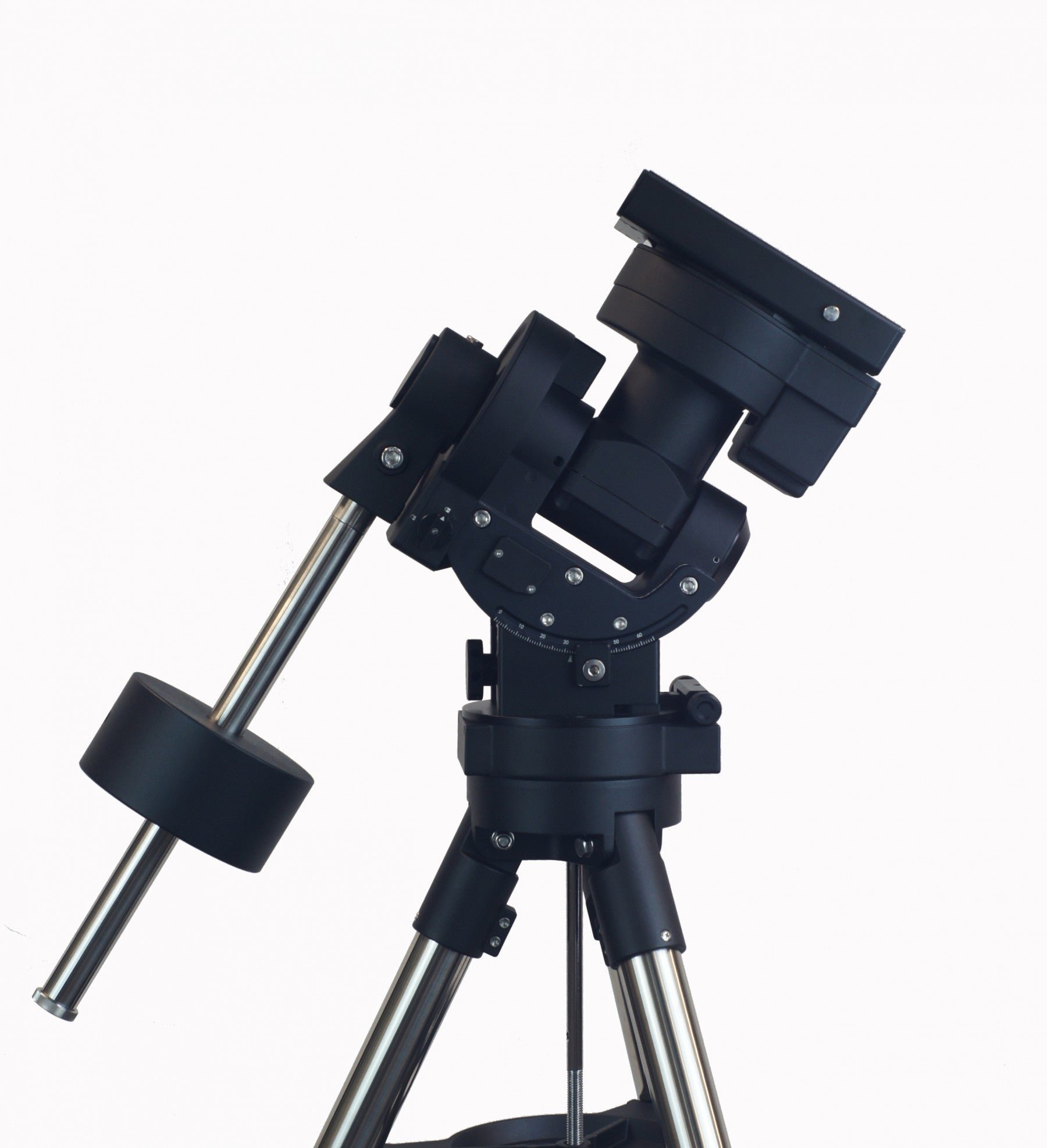

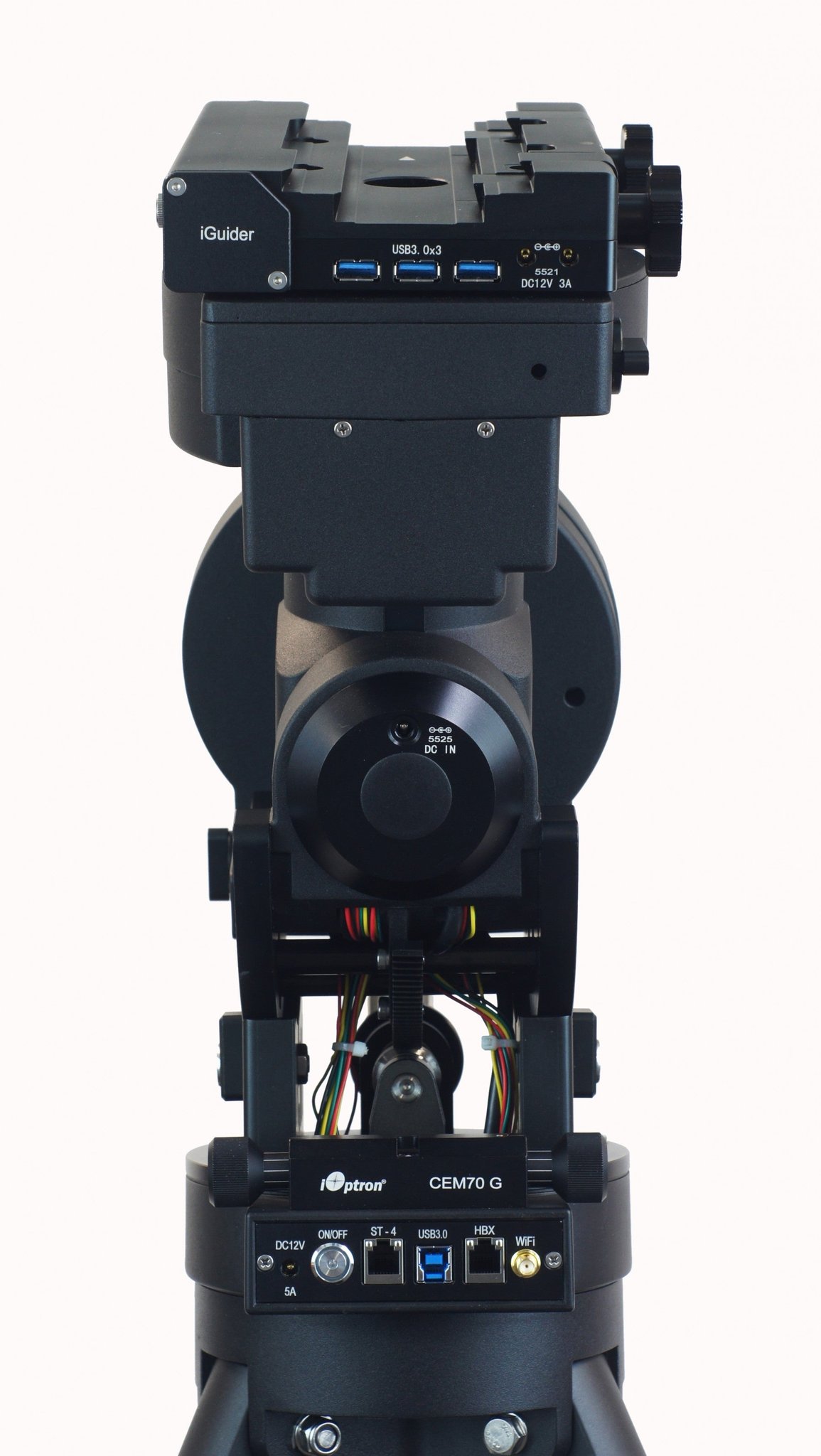

The iOptron CEM70EC is a center-balanced German equatorial mount engineered for serious astrophotographers and visual observers seeking high payload capacity with exceptional portability. Featuring a unique center-balanced design that places the payload at the mount's center of gravity, it delivers 70 pounds of payload capacity while weighing only 30 pounds, providing an outstanding 2.33:1 payload-to-weight ratio ideal for transporting to dark-sky sites. The EC model incorporates high-resolution encoders with real-time periodic error correction (RPEC), reducing periodic error from ±3.5 arcseconds to less than 0.3 arcseconds RMS, combined with iOptron's Go2Nova 8407+ hand controller featuring 359,000+ object database and integrated 32-channel GPS for precise celestial targeting and long-exposure astrophotography.
Specifications
| Dec Worm Wheel Teeth | 248 |
| DEC Bearing Diameter | 80 mm |
| Latitude Adjustment Range | 0° |
| Worm Period | 348 s |
| Payload Capacity | 70 lb |
| RA Worm Wheel Diameter | 151 mm |
| RA Axle Diameter | 55 mm |
| Counterweight Shaft Length | 415 mm |
| Mount type | Center-Balanced Equatorial (CEM) |
| Power Requirement | 9 to 15 |
| Saddle Type | Dual 8-inch Losmandy and Vixen |
| Maximum Slew Speed | 3.75° |
| Polar Scope | iPolar electronic |
| Hand Controller Database Objects | 359000 |
| Periodic Error Correction | Real-time PEC (RPEC) |
| Mount Weight | 30 lb |
| Dec Worm Wheel Diameter | 151 mm |
| RA Bearing Diameter | 80 mm |
| Payload to Mount Weight Ratio | 2.33 |
| Worm Diameter | 21.2 mm |
| Counterweight Shaft Diameter | 28 mm |
| RA Worm Wheel Teeth | 248 |
| Dec Axle Diameter | 55 mm |
| Counterweight Mass | 20 lb |
| Motor Tracking Current | 0.6 A |
| Motor Step Resolution | 0.07″ |
| Hand Controller | Go2Nova 8407+ |
| GPS Channels | 32 |
| Motor Slewing Current | 1.1 A |
| Operating Temperature Range | -20 °C |
