HAZ130
iOptron
From ~$10,729.03
2 stores
In stock

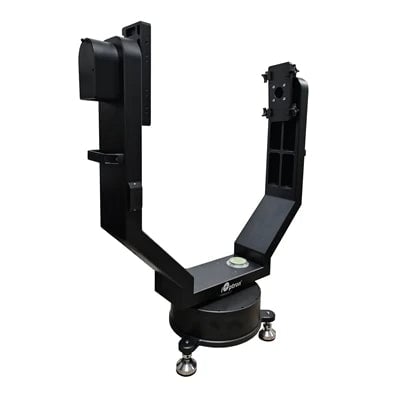

The iOptron HAZ130 is a high-capacity alt-azimuth mount featuring dual strain wave gear (SWG) drives designed to support large optical tube assemblies up to 16" F/8 RC telescopes with exceptional stability for both visual astronomy and astrophotography. With a 132 lb payload capacity and rapid 6°/sec maximum slew speed, it excels at tracking celestial objects and satellites with backlash-free precision driven by quiet stepper motors. The rugged all-metal CNC-machined fork design includes dual adjustable Losmandy saddles, electronic friction braking, Go2Nova 8411 hand controller with OLED display, and full computer control compatibility for modern observing systems.
Specifications
| Drive Motor Type | Stepper Motor |
| Input Voltage | 100 V |
| Output Current | 5 A |
| Hand Controller | Go2Nova 8411 with OLED display |
| Dovetail Saddle | Losmandy |
| Structure Material | All metal, CNC machined, Anodized |
| Mount Weight | 32 lb |
| Azimuth Range | 0° |
| Computer Control | ✓ |
| Firmware Upgradeable | ✓ |
| Mount type | Alt-Azimuth Fork |
| Gear System | Dual Strain Wave Gear (SWG) |
| Maximum Slew Speed | 6° |
| Brake System | Electronic Friction Brake |
| Level Indicator | High Precision Level Bubble |
| Payload Capacity | 60 lb |
| Altitude Range | 0° |
| Output Voltage | 12 V |
| Hand Controller Database | 212000 |
| Communication Port | USB |
| Minimum Mounting Base Size | 17.7 in |
| Alt Axle to Base Height | 810 mm |
| Power Consumption Tracking | 0.6 A |
| Power Consumption GoTo | 1.2 A |
| Operating Temperature Range | -20 °C |
| Control System | GOTONOVA and Commander |
| Mounting Base Size | 450 mm |
