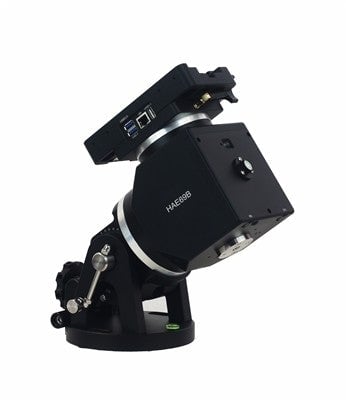

HAE69 iMate
iOptron
From $4,869.00
3 stores
The iOptron HAE69 iMate is a lightweight, compact, medium-payload alt-azimuth/equatorial hybrid mount designed for modern astrophotography. Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69 delivers unparalleled weight-to-payload efficiency, offering a payload capacity of 31 kg (69 lbs) with a mount weight of 8.6 kg (19 lbs, including dovetail saddle). The iMate models feature an internal main board with a powerful 64-bit ARM based on-board computer, Wi-Fi, and preloaded KStars planetarium software, Ekos control and automation tool and INDI drivers, enabling fully autonomous and remote imaging sessions without requiring an external handset or laptop.
Specifications
| Payload Capacity | 69 lb |
| Gear Period | 270 s |
| Mount Weight | 19 lb |
| Periodic Error | 15″ |
| iMate Processor | 64-bit ARM |
| Finish | Black anodized |
| iMate SD Card Slot | 64 GB |
| Power Outputs | 3x 12V DC |
| Power-Down Memory | ✓ |
| RA Reduction Ratio | 800:1 |
| Construction Material | All metal CNC machined |
| Electronic Friction Brake | ✓ |
| DEC Reduction Ratio | 800:1 |
| Azimuth Adjustment Range | 0° |
| Mount type | Dual AZ/EQ Hybrid |
| Included Software | KStars, Ekos, INDI drivers, iPolarServer |
| Saddle Type | Dual Vixen/Losmandy-D |
| Dual Mounting Modes | Alt-azimuth and Equatorial |
| Gear System | Strain Wave Gear (both axes) |
| Drive Motor | Stepper Motor |
| iMate Storage | 32 GB |
| Autoguiding Port | ST-4 compatible |
| WiFi | ✓ |
| USB Ports | 2 |
