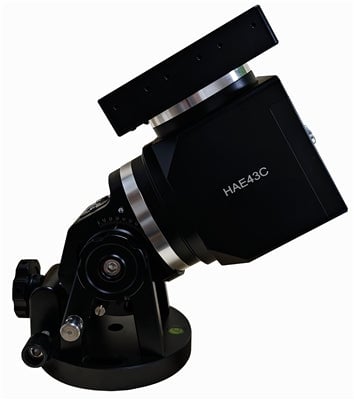

HAE43C Strain Wave AZ/EQ Mount
iOptron
From $3,239.00
4 stores
The iOptron HAE43C is a lightweight, dual-mode alt-azimuth/equatorial mount designed for both visual observation and astrophotography. Weighing under 13 pounds, it offers an impressive 44-pound payload capacity without requiring counterweights, utilizing advanced strain wave gear technology for precise tracking on both RA and DEC axes. The mount features an internal control board with USB-C connectivity for computer control via ASCOM/Commander or INDI drivers, along with optional Go2Nova hand controller support, electronic friction braking for safe power interruption handling, and compatibility with standard Vixen and Losmandy-D dovetail saddles. The HAE43EC variant includes high-precision RA axis encoders with real-time periodic error correction (RPEC) for exceptional tracking accuracy, enabling many astrophotographers to image unguided.
Astronomics
HAE43C AZ/EQ dual SWG Mount
$3,239.00
High Point Scientific
HAE43C SWG Mount and Case
Ships to US only
$3,239.00
Astronomy Plus
HAE43C-EC AZ/EQ dual SWG (HE434C)
Worldwide shipping
CA$6,620.00
~$4,804.59
Astroshop.eu
Mount HAE43C-EC AZ/EQ dual SWG
Worldwide shipping
€4,890.00
~$5,756.98
Specifications
| Payload Capacity | 20 lb |
| Slew Speed Control | 0.99X to 1.01X sidereal |
| HAE43EC RA Encoder | High precision with Real-Time PEC (RPEC) |
| Mount Weight | 5.8 lb |
| Control Methods | USB-C, ASCOM/Commander (Windows), INDI (macOS), optional 8411 hand controller |
| Warranty | 2 |
| Mount Head Weight | 12.8 kg |
| Mount type | AZ/EQ Dual Mode |
| Saddle Style | Dual Vixen/Losmandy-D |
| Gearing Technology | Strain Wave Gear (Harmonic Drive) |
| Object Database | 212000 |
| Dual Saddle Type | Vixen and Losmandy-D styles |
| Payload Capacity (Imperial) | 44 lb |
| Features | Electronic friction brake, power down memory, ST-4 autoguiding port, Wi-Fi connectivity, internal main board |
| Gear Period | 270 s |
