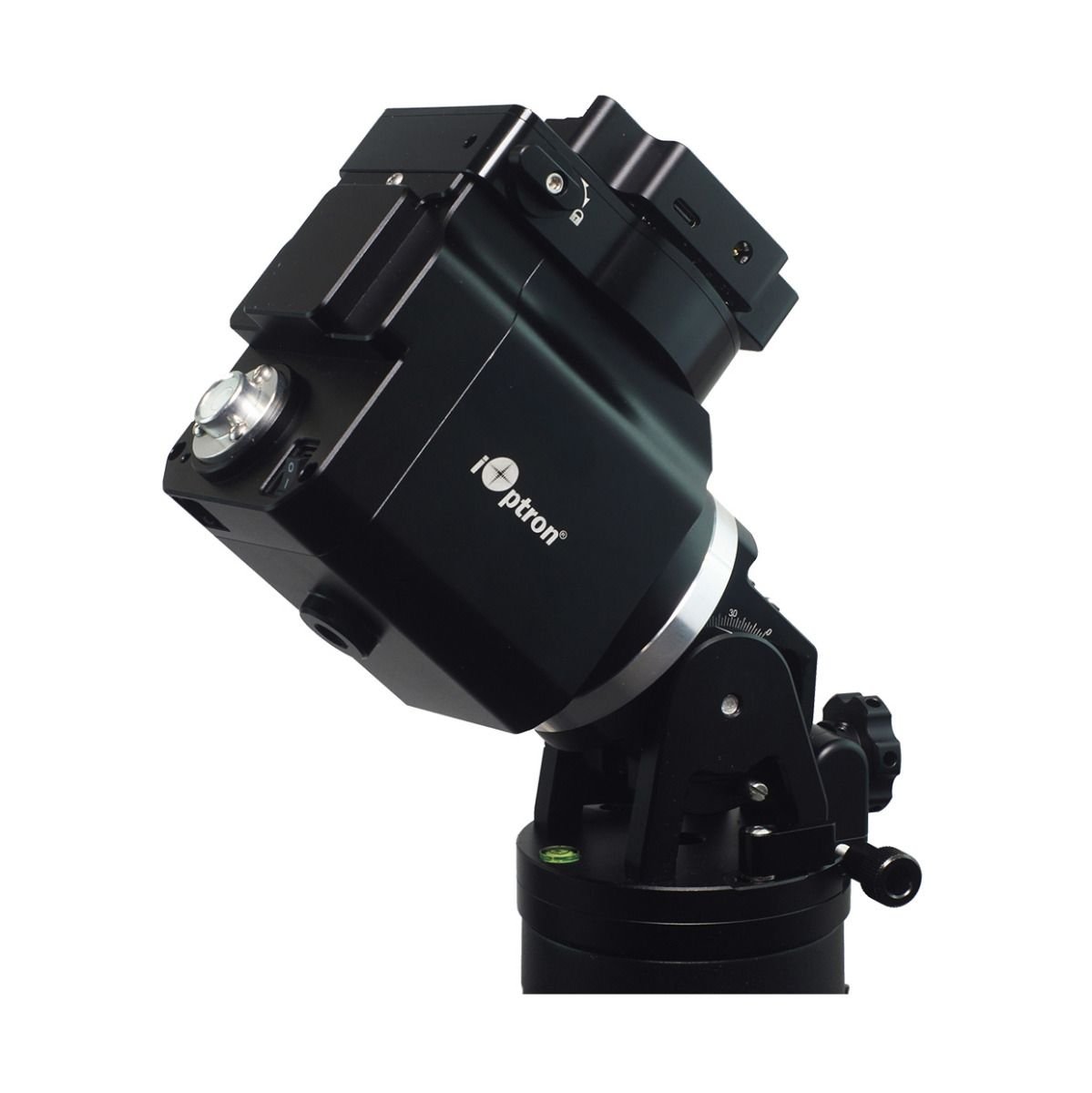

HAE16C Ultra Compact Hybrid SWG Mount Head
iOptron
From $1,499.00
3 stores

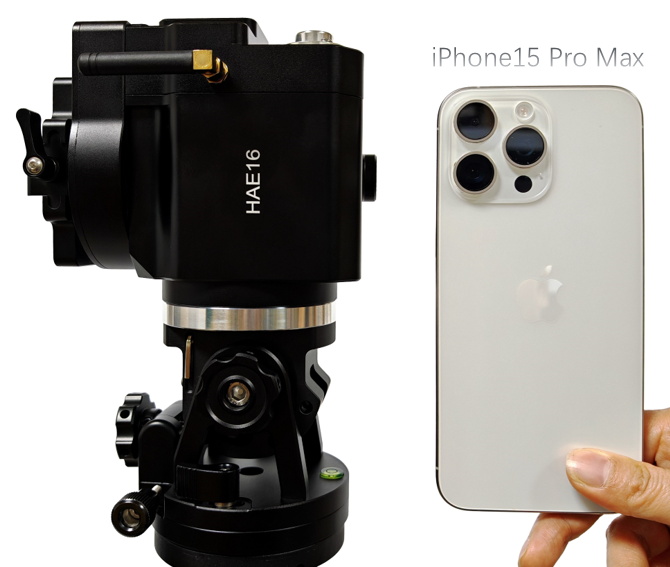

The iOptron HAE16C is a state-of-the-art portable astronomy mount that is ultra-compact and hybrid, weighing just 5.7 pounds while supporting an astounding 18 pounds of equipment on its own. Utilizing state of the art strain wave gear technology on the RA axis, with a traditional worm gear on the DEC, the HAE16C delivers tracking accuracy that other SWG mounts can't match. Its dual EQ/AltAz capabilities allow conversion between equatorial and alt-azimuth modes in just a matter of minutes without the added bulk of conventional dual systems. Unique features include an electronic friction brake which allows the mount to stop safely, upgradable firmware, built-in Wi-Fi, and zero position locator.
High Point Scientific
HAE16C Ultra Compact Hybrid SWG Mount Head and Case
Ships to US only
$1,499.00
Astroshop.eu
Mount HAE16C Dual AZ/EQ SWG Hybrid
Worldwide shipping
€1,590.00
~$1,871.90
Astronomy Plus
HAE16C Dual AZ/EQ SWG Hybrid Mount (HE162C)
Worldwide shipping
CA$2,809.00
~$2,038.68
Specifications
| Gear Period | 360 s |
| Compatible Control Methods | ASCOM/Commander, INDI, iOptron Commander Lite, SkySafari, Raspberry Pi |
| Maximum Payload with Counterweight | 26.5 kg |
| Dovetail Saddle | Vixen Compatible |
| Zero Position Locator | ✓ |
| Built-in Wi-Fi | ✓ |
| Mount Weight | 5.7 lb |
| Requires Counterweight | false |
| RA Axis Drive | Strain Wave Gear 14 |
| Mounting Modes | Dual AZ/EQ |
| Electronic Friction Brake | Yes (RA Axis) |
| USB-C Ports | 2 (one on base, one on dovetail saddle) |
| Payload Capacity | 18 lb |
| DEC Axis Drive | Traditional Worm Gear |
