From $399.00
5 stores

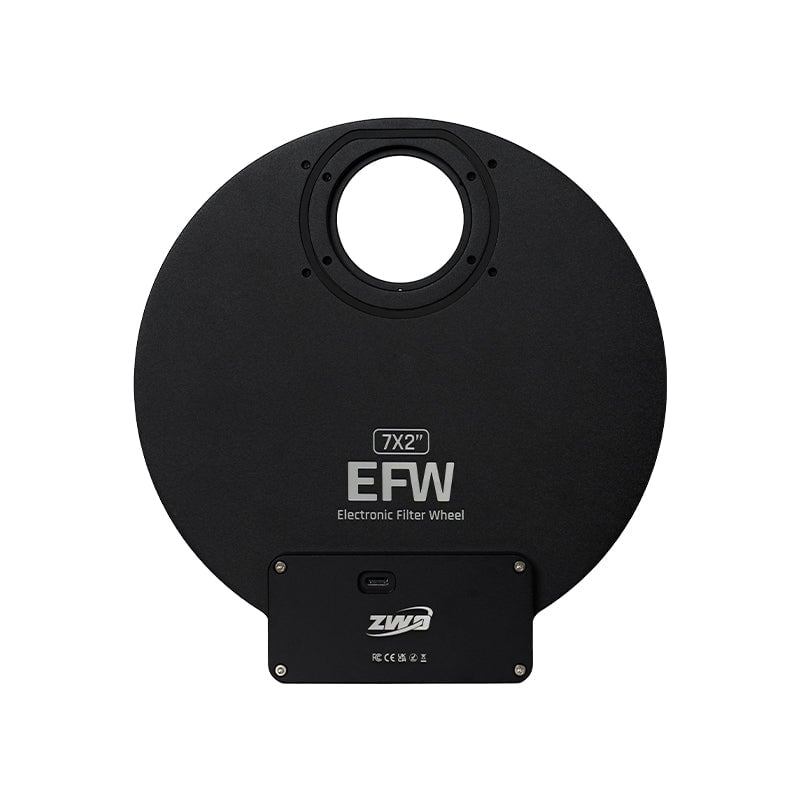

The ZWO EFW-7x2 filter wheel offers precise electronic control of filter positioning during astronomical imaging. It accepts up to seven 2" threaded filters or 50.4mm unmounted filters with a cell height not exceeding 7mm, and is made of black-anodized aircraft-grade aluminum with a thickness of only 20mm, powered by a Japanese-made stepper motor. The bi-directional electronic filter wheel is powered and controlled through the USB port on your camera or directly via a USB cable connected to your computer, requiring no extra power supplies. Ideal for deep-sky imaging, this filter wheel allows seamless integration of a wide range of astrophotography filters, enabling complex filter sequences and rapid adjustments during imaging sessions.
Starizona
EFW 7x2" (2025) 7-Position Precision Electronic Filter Wheel
$399.00
Astronomics
EFW 7-Position Filter Wheel for 2"
$399.00
Astronomy Plus
EFW 7x2" Filter Wheel - NEW GEN (EFW-7x2-25)
CA$559.00
~$408.52
High Point Scientific
ZWO 7 Position Electronic Filter Wheel for 50mm Square Filters for ASI461MM-P
$599.00
Astroshop.eu
Filterrad EFW 7x 2"
€599.00
~$706.16
| Maximum Filter Height | 7 mm |
| Motor Type | Japanese stepper motor (NPM) |
| Filter Size | 2 in |
| Maximum Power Consumption | 120 W |
| Control Interface | ASCOM and SDK |
| Maximum Thread Length | 3 mm |
| Weight | 650 lb |
| Maximum Unmounted Filter Diameter | 50.4 mm |
| Rotation Direction | Bidirectional |
| Filter Positions | 7 |
| Power Supply Voltage | 5 V |
| Power Connection | USB 2.0 |
| Thickness | 20 in |
| Material | Black-anodized aircraft-grade aluminum |
