External Motor Controller
Pegasus Astro
From ~$171.56
5 stores

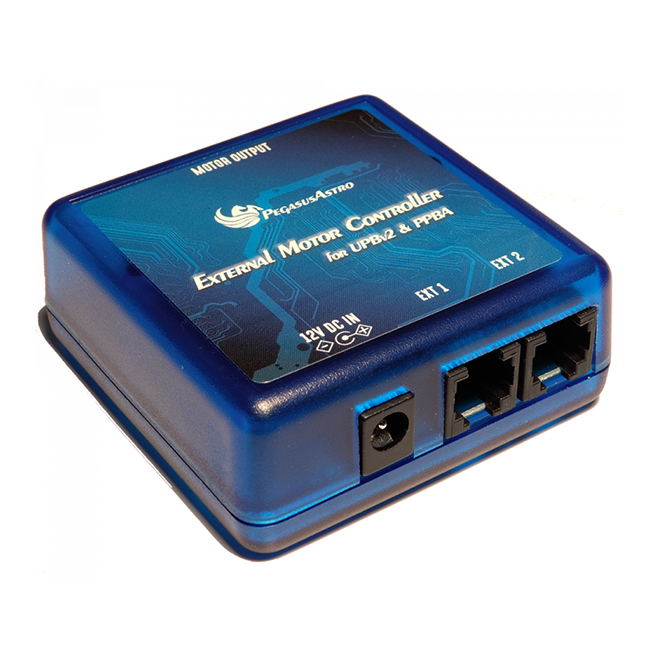

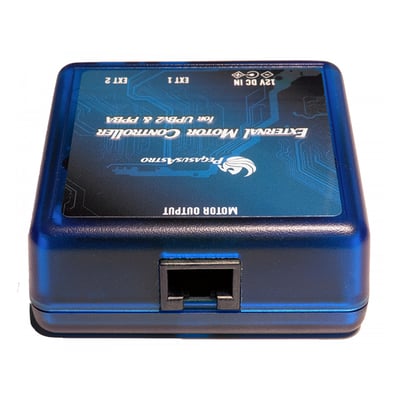

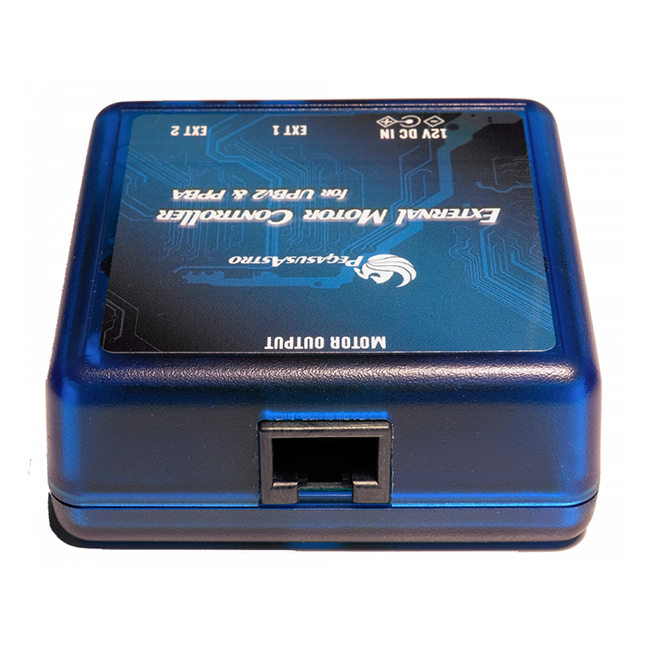

The External Motor Controller (XMC) expands the focus capabilities of the Ultimate Powerbox v2 and adds focus functionality to the Pocket Powerbox Advance. It can drive a large bipolar or unipolar stepper motor with high precision up to 2 Amps per coil, and supports micro-stepping configurable via software to Full, Half, 1/4 step and 1/8 step for additional precision and smooth motor rotation. The device does not require a USB cable and can be attached directly to the EXT port of the Powerboxes.
Astronomy Plus
eXternal Motor Controller (XMOTORCTRL)
Worldwide shipping
CA$235.00
~$171.56
OPT
External Motor Controller
Worldwide shipping
$177.24
High Point Scientific
External Motor Controller
Ships to US only
$186.90
First Light Optics
Pegasus Astro eXternal Motor Controller
Worldwide shipping
£145.00
~$195.62
Astroshop.eu
eXternal Motor Controller
Worldwide shipping
€189.00
~$222.85
Specifications
| Preferred Supply Voltage | 12 V |
| Protection Features | Under-voltage, Over-current, Over-temperature protection |
| Power Input Connector | 2.1 mm Center Positive Socket |
| Micro-stepping Modes | Full, Half, 1/4 step, 1/8 step |
| Connectivity | RJ12 Socket |
| Height | 28 mm |
| Accepted Input Voltage Range | 8.2 V |
| Motor Output Connector | RJ45 Socket |
| Depth | 66 mm |
| Drive Current | 2 A |
| Motor Compatibility | Unipolar and Bipolar Stepper Motors |
| Width | 66 in |
