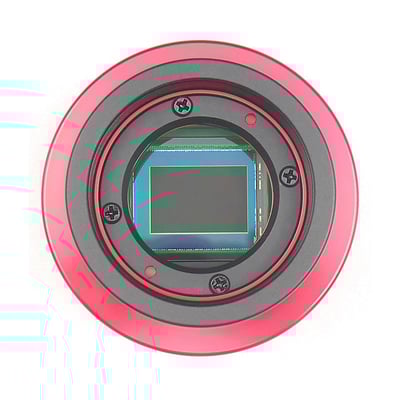

ASI294MC USB 3.0 Color Astronomy Camera - ASI294MC
ZWO
From $699.00
3 stores
In stock

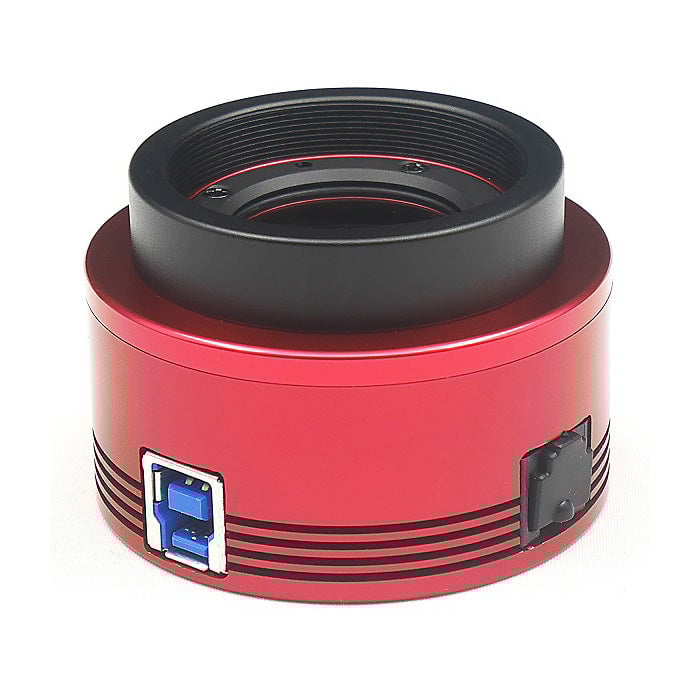

The ZWO ASI294MC is a versatile uncooled color astronomy camera equipped with Sony's IMX294CJK Micro-4/3 format sensor, ideal for both deep-sky and high-resolution planetary imaging. With 11.7 megapixels, large 4.63-micron pixels, and a full well capacity of 63,700 electrons, this camera delivers exceptional signal-to-noise ratio and low-illumination performance for astrophotography applications. The USB 3.0 interface enables fast data transmission at up to 19 fps in 10-bit mode or 16 fps in 14-bit mode at full resolution, making it equally capable for extended deep-sky exposures or rapid planetary capture.
Specifications
| Interface | USB 3.0 |
| Operating Temperature Range | -5 °C |
| Exposure Range | 32µs to 2000s |
| Sensor Format | Micro 4/3 |

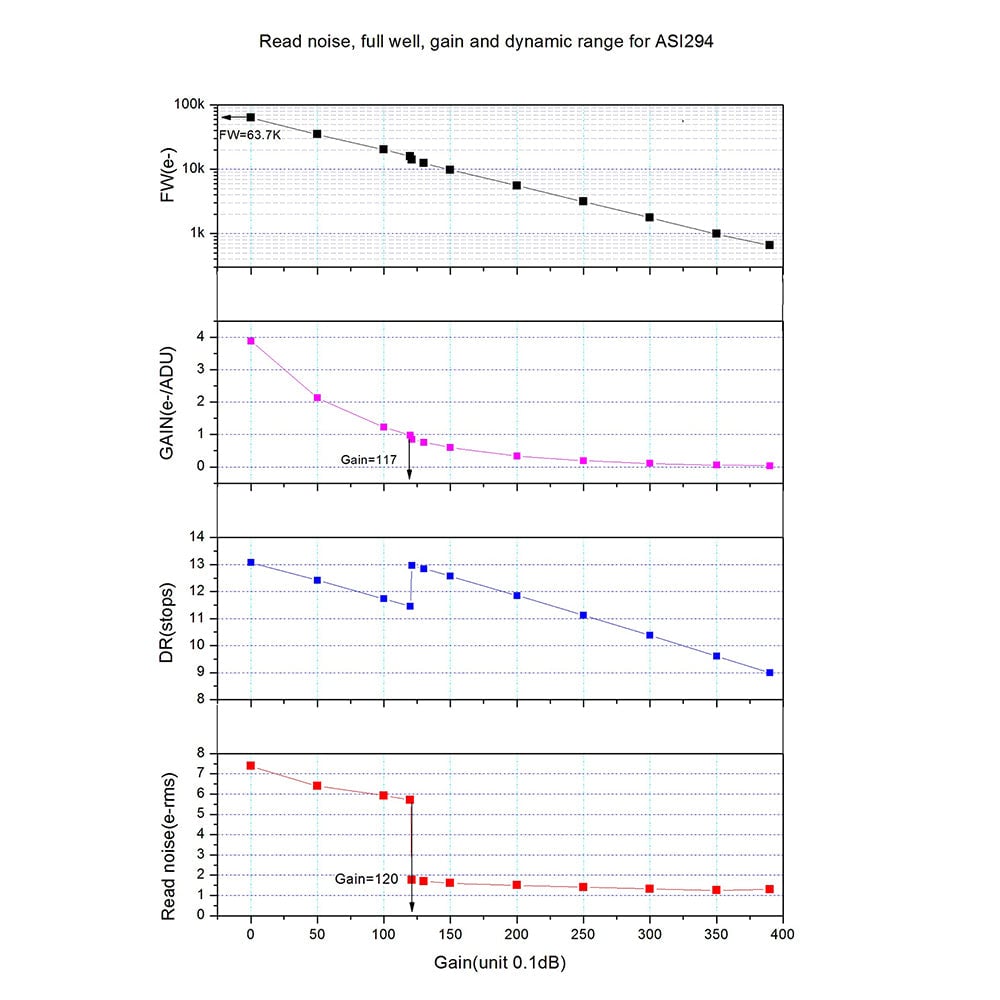

| Full Well Capacity | 63700 |

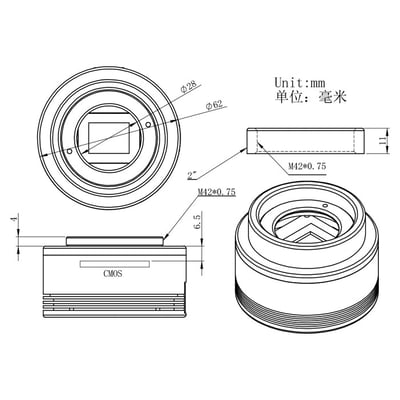

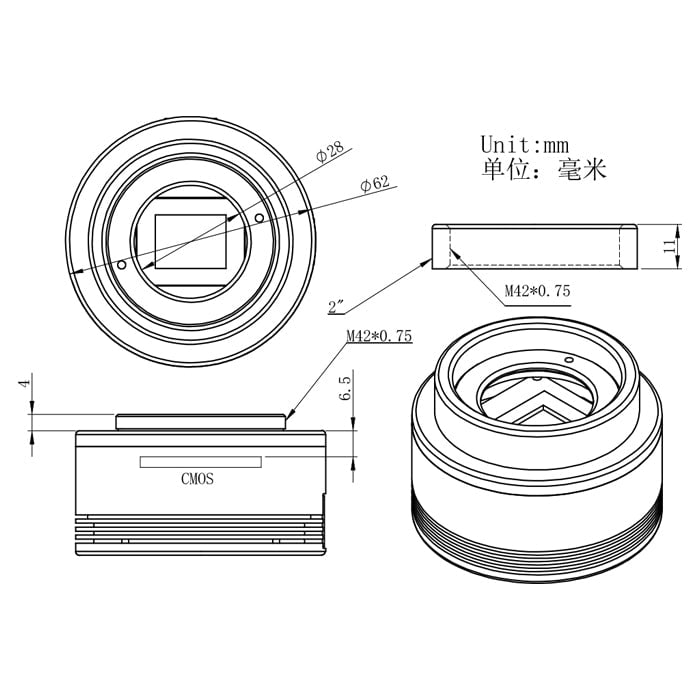

| Body Diameter | 62 mm |
| Pixel Array | 4144 x 2822 |
| ADC | 14-bit |
| Max Frame Rate 10-bit | 19 fps |
| Back Illuminated | ✓ |
| Max Frame Rate 14-bit | 16 fps |
| Cooling | Uncooled |
| Pixel Size | 4.63 μm |
| Dynamic Range | 13 |
| Back Focus Distance | 12.5 mm |
| Resolution | 11.7″ |

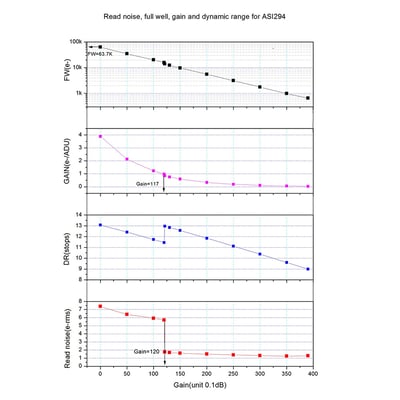

| Read Noise | 1.2 |
| Color Type | Bayer RGGB |
| ST4 Guider Port | ✓ |
| Storage Temperature Range | -20 °C |

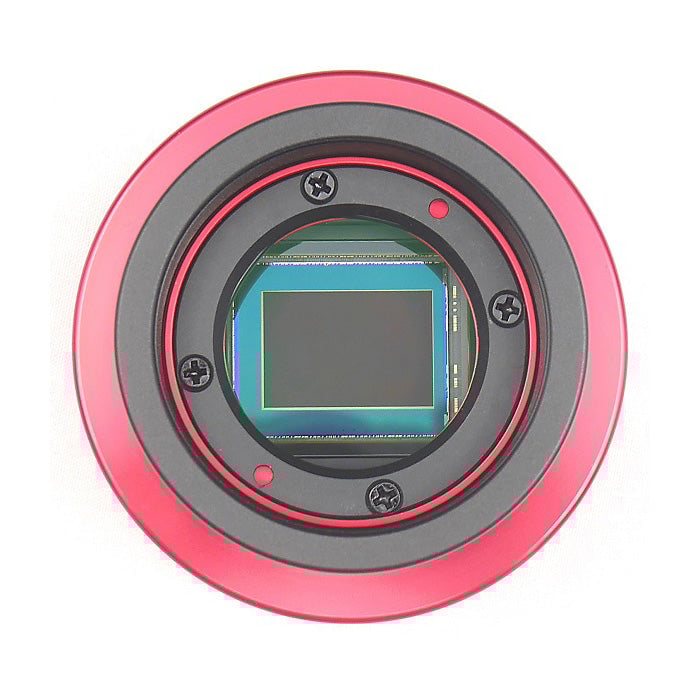

| Sensor | Sony IMX294CJK |
| Sensor diagonal | 23.2 |

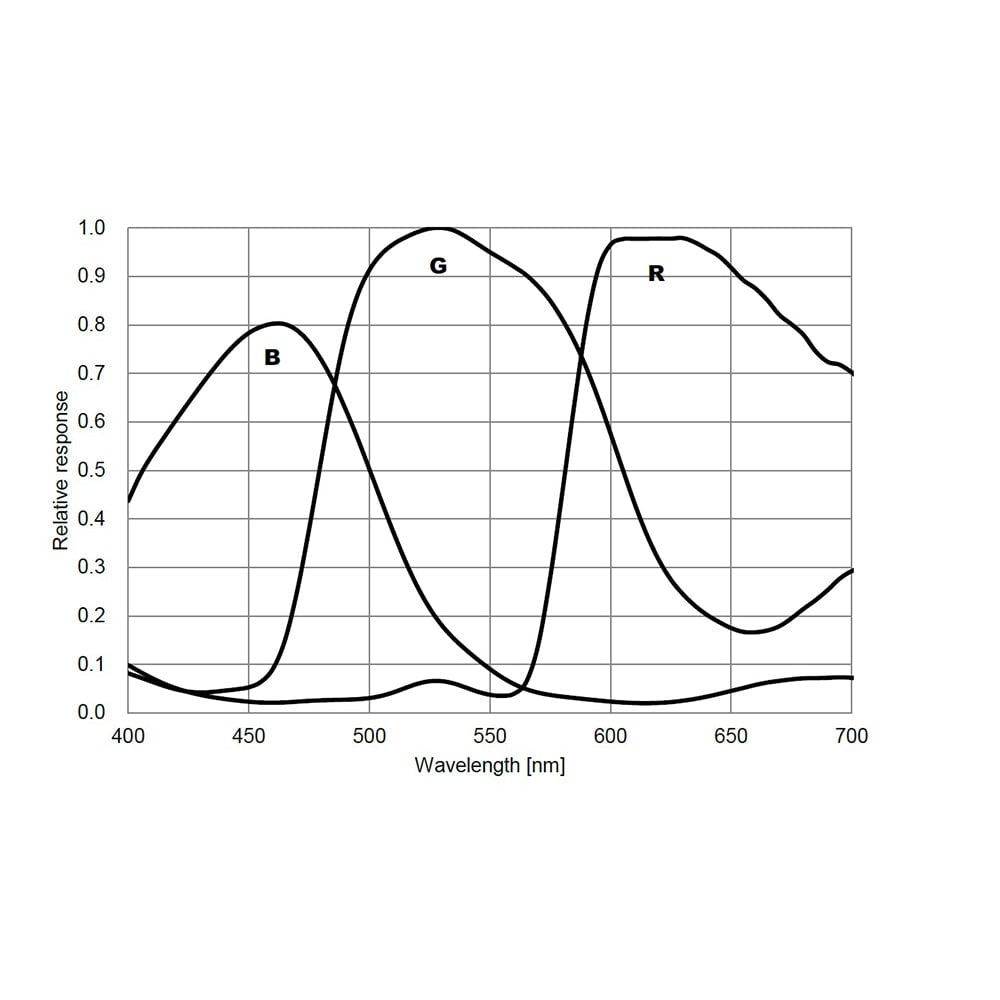

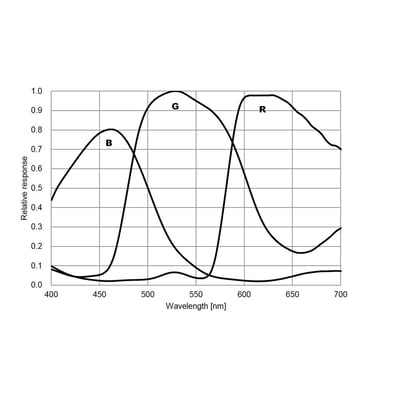

| Quantum Efficiency Peak | 75% |
| USB Bandwidth | 5 |
| Weight | 120 lb |
