Astroprices

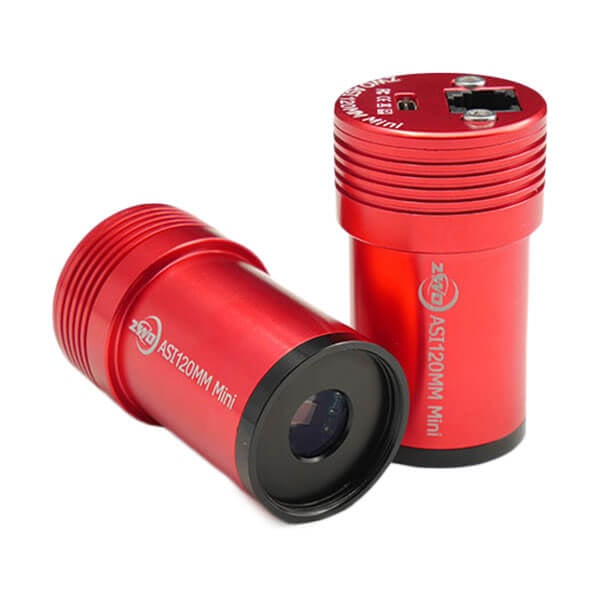

ASI120MM Mini

ZWO

From $149.00

8 stores

In stock

The ASI120MM-Mini uses a 1.2-megapixel monochrome sensor with a peak QE of 75% and low read noise to give an excellent level of performance despite its compact size. With a 1280x960 pixel array and 3.75µm pixel size, this camera strikes a perfect balance between high resolution and light sensitivity, making it ideal for deep-space guiding and detailed planetary imaging. Weighing just 60 grams, the ASI120MM Mini is one of the lightest cameras in its class, with a small footprint and 1.25" form factor allowing it to fit seamlessly into your existing imaging train.

Specifications

Sensor pixel size 3.75
Sensor diagonal 1
Sensor type CMOS Chip (AR0130CS)
Sensor On Semi AR0130CS
Sensor resolution 1280
Maximum Frame Rate 35 fps
Sensor Dimensions 4.8
Sensor read noise 3.5
Peak Quantum Efficiency 75%
ADC Bit Depth 12
Weight 60 lb
Full Well Capacity 13000
Interface USB 2.0 Type-C

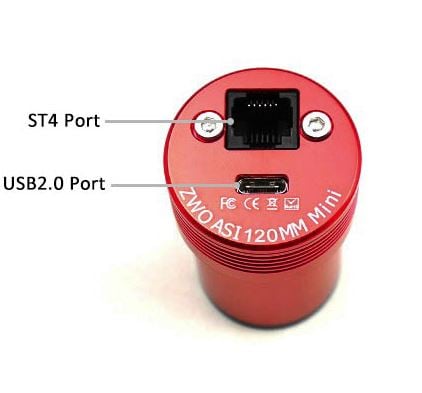

Autoguiding Port ST4

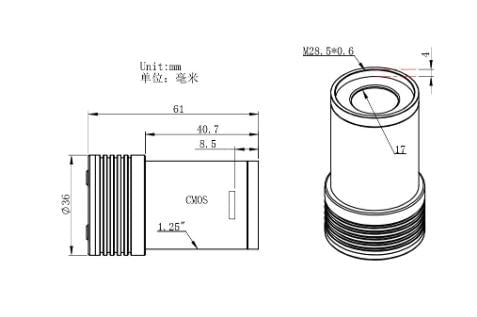

Frame Diameter 36 mm
Exposure Range 64µs-2000
Resolution 1.2″
