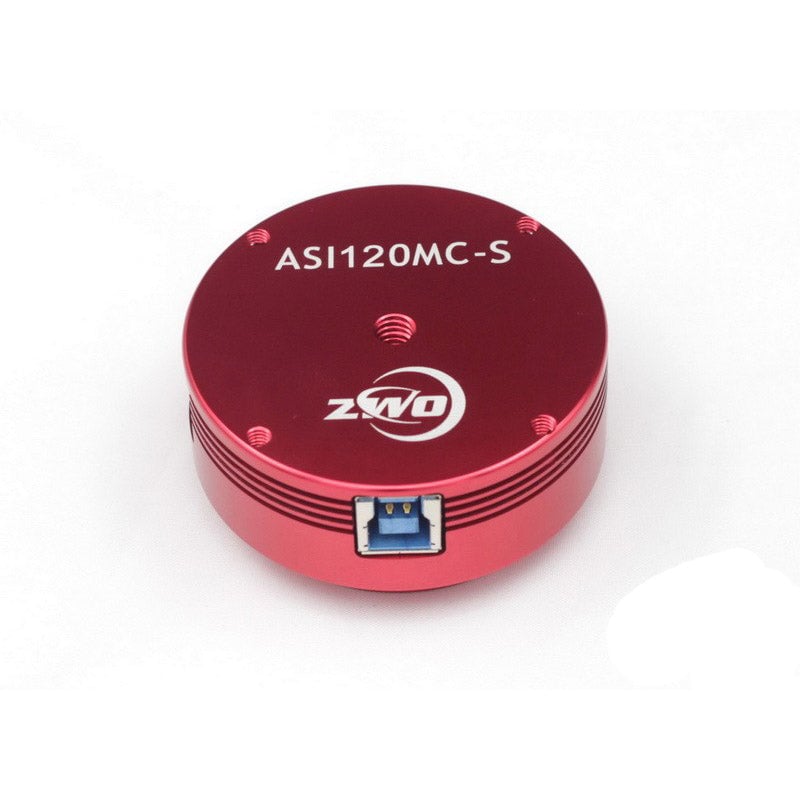

ASI120MC-S Super Speed Color CMOS Astronomy Camera - ASI120MC-S
ZWO
From $119.20
3 stores
The ZWO ASI120MC-S is a versatile 1.2-megapixel color CMOS astronomy camera designed for planetary, lunar, and bright deep-sky imaging with blazing-fast USB 3.0 data transfer. Featuring a 1/3-inch sensor with 3.75-micron pixels and 75% quantum efficiency, the camera achieves 60 fps at full resolution and up to 254 fps at reduced resolutions, enabling high-quality single-shot color imaging without filter wheels. The compact, CNC-machined aluminum body includes an IR-cut protective window, built-in ST4 autoguider port, and ships with a 150-degree wide-angle lens for all-sky imaging of meteors and aurora, making it an exceptionally flexible all-in-one solution for amateur and intermediate astrophotographers.
Agena Astro
Refurbished: ZWO ASI120MC-S 1.2 MP CMOS Color Super Speed Astronomy Camera with USB 3.0 CLN-...
Worldwide shipping
$119.20
TelescopesPlus
ASI120MC-S Super Speed Color CMOS Astronomy Camera - ASI120MC-S
$149.00
Astronomics
ASI120MC-S Color Astrophotography Camera
$149.00
Specifications
| Working Temperature Range | -5 °C |
| Storage Temperature Range | -20 °C |
| Includes 150-Degree Wide-Angle Lens | ✓ |
| Pixel Size | 3.75 μm |

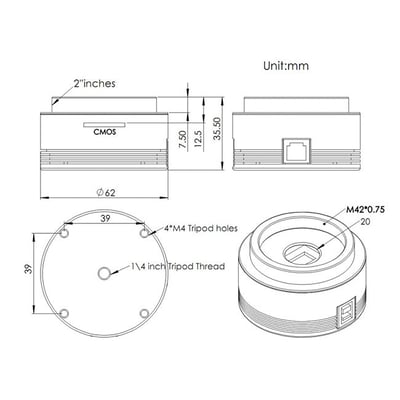

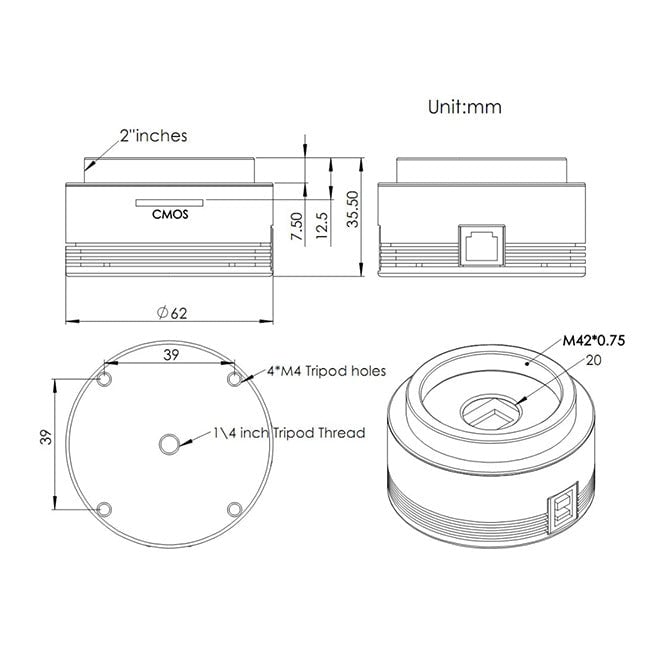

| Dimensions | 62mm diameter x 28mm length |
| Built-in ST4 Autoguider Port | ✓ |
| Color Type | Color (Bayer pattern) |
| Interface | USB 3.0 (backward compatible with USB 2.0) |
| Housing Material | CNC-machined red-anodized aluminum |
| Mount Thread Options | 1/4-20 inch (bottom) and four M4 threads (edges) |
| Sensor type | 1/3 inch CMOS AR0130CS |
| Exposure Range | 64us to 1000s |
| Protective Window | IR-cut glass |
| Resolution | 1280″ |
| Max Frame Rate (Full Resolution) | 60 fps |
| ADC | 12-bit |
| Max Frame Rate (Reduced Resolution) | 254 fps |
| Power Consumption | 150 W |
| Megapixels | 1.2 MP |
| Back Focus Distance | 12.5 mm |
| Quantum Efficiency (Peak) | 75% |
| Weight | 100 lb |
