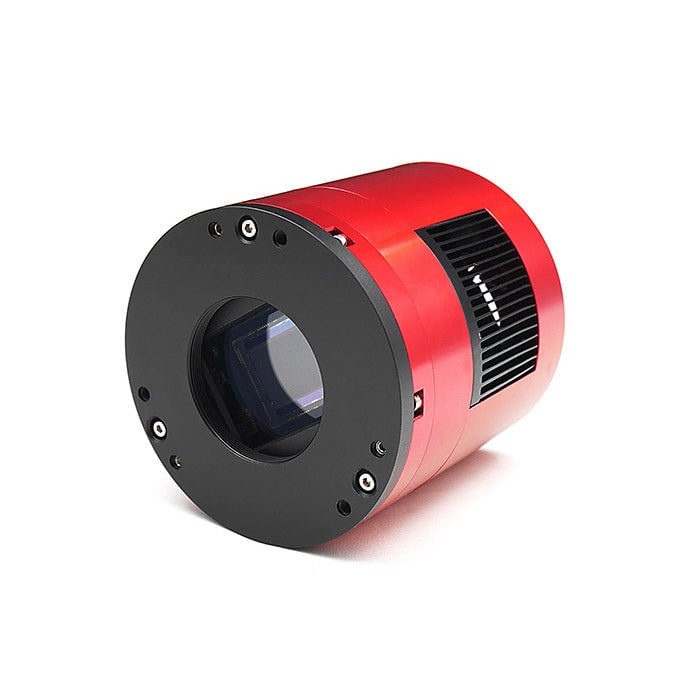

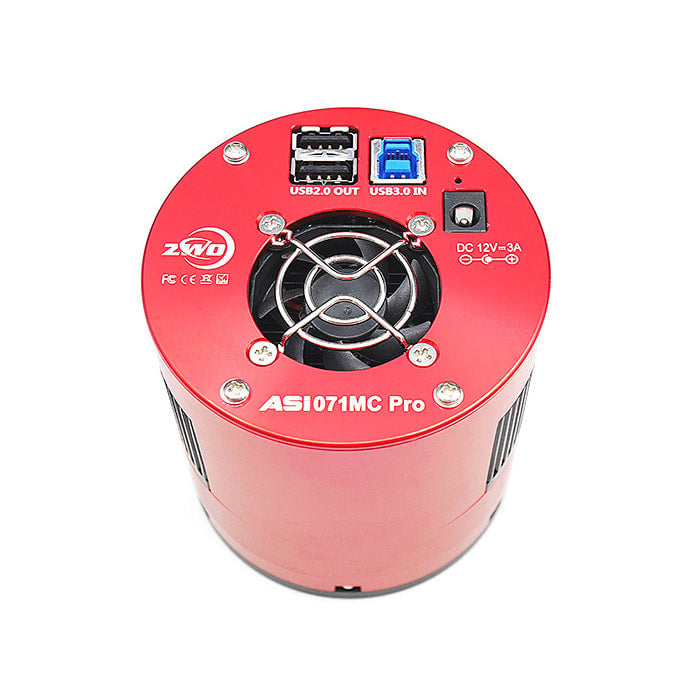

ASI071MC Pro Color Astronomy Camera - ASI071MC-P
ZWO
The ZWO ASI071MC Pro is a cooled APS-C format color astronomy camera designed for deep-sky, lunar, and solar imaging with professional-grade features. Built around Sony's IMX071 CMOS sensor with 16.2 megapixels and large 4.8μm pixels, it delivers exceptional sensitivity with exceptionally low read noise and a 14-bit dynamic range for clean, detailed astronomical images. The integrated two-stage TEC cooling system reduces sensor temperature 35-40°C below ambient, minimizing thermal noise for extended exposures, while the 256MB DDR3 buffer enables stable USB 3.0 data transfer up to 10 fps at full resolution with minimal amp-glow artifacts.
Looks like this product is no longer available.
Specifications
| Dynamic Range | 14 |

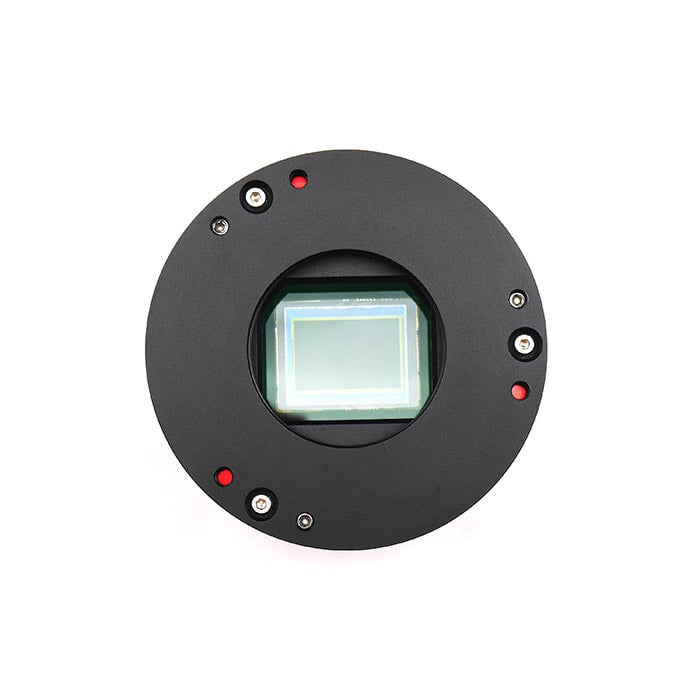

| Sensor type | Sony IMX071 CMOS |
| Sensor diagonal | 28.4 |
| Max FPS at 640x480 | 70 fps |
| Temperature Reduction | 35 °C |
| Mechanical Diameter | 86 mm |
| Working Temperature Range | -5 °C |
| Sensor Image Area | 23.6 mm |
| Dew Heater Power | 3.6 W |
| Resolution | 16″ |
| Exposure Range | 64 microseconds to 2000 seconds |
| Back Focus Distance | 17.5 mm |
| Supported Operating Systems | Windows, Linux, macOS |
| Color Format | Bayer Pattern (RGGB) |
| Sensor Format | APS-C |
| Shutter Type | Rolling electronic shutter |
| Weight | 640 lb |
| Storage Temperature Range | -20 °C |
| Full Well Capacity | 46000 |
| Cooling Power Consumption | 12V at 2A Max |
| ADC Bit Depth | 14 |
| USB Interface | USB 3.0 (backward compatible USB 2.0) |

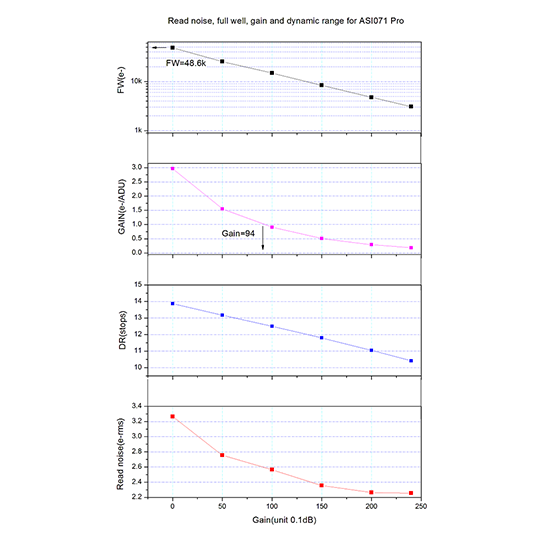

| Read Noise | 2.3 |
| Pixel Array | 4944 x 3284 |
| Memory Buffer | 256 |
| Mount Thread | M42 x 0.75 |
| Pixel Size | 4.78 μm |
| Max FPS at Full Resolution | 10 fps |

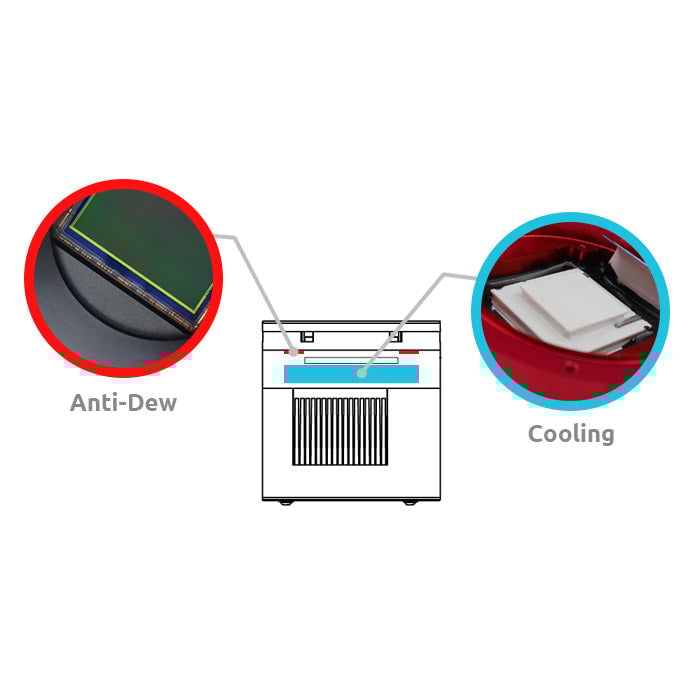

| Cooling System | Two-stage TEC |
| Protective Window | AR-coated BK7 glass |
