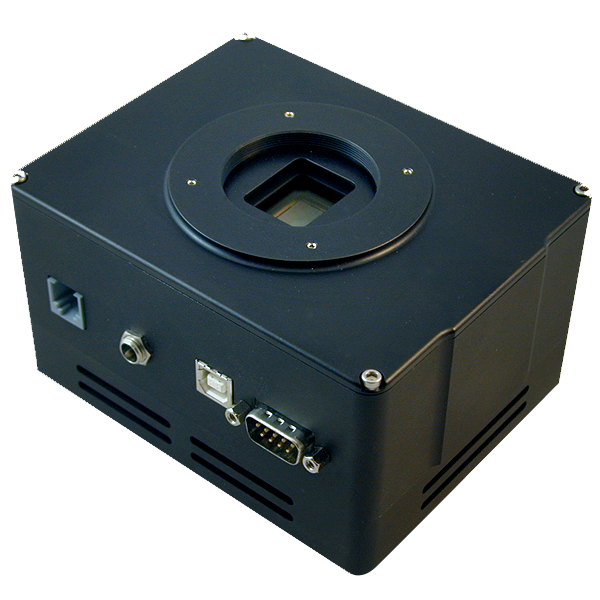

STF-8050M Monochrome Astronomy Camera with FW5-8300 Filter Wheel
SBIG
From $3,940.00
2 stores
The SBIG STF-8050M is a high-quality monochrome CCD camera featuring 8.1 megapixels with 5.5 micron pixels for exceptional image detail. Its monochrome sensor ensures superior contrast and precision with very low read noise of only 9 electrons, while the electronic shutter enables fast exposure times ranging from 0.001 seconds to 3600 seconds. The camera features robust cooling with a delta greater than -50 degrees Celsius, achieved through a heat sink working in unison with an inbuilt fan. The bundle includes the FW5-8300 filter wheel with five 36mm filter positions that adds only 20mm of backfocus, making this system an excellent choice for solar, lunar, and planetary imaging as well as deep space work with a filter wheel.
Specifications
| Sensor type | Kodak KAI-08050 Monochrome CCD |
| Shutter Type | Electronic |
| Filter Wheel Footprint | 5 in |
| Pixel Size | 5.5 μm |
| Maximum Exposure Time | 3600 s |
| Read Noise | 9 |
| Cooling Delta | -50 °C |
| Resolution | 8.1″ |
| Minimum Exposure Time | 0.001 s |
| Filter Wheel Weight | 632 g |
| Filter Wheel Positions | 5 |
| Filter Size | 36 in |
| Sensor Format | 4/3 inch (22mm diagonal) |
| Download Speed | 0.5 s |
| Filter Wheel Backfocus | 20 mm |
