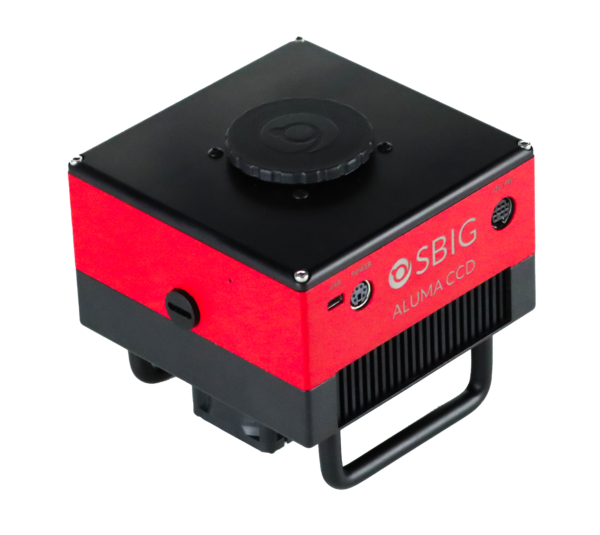

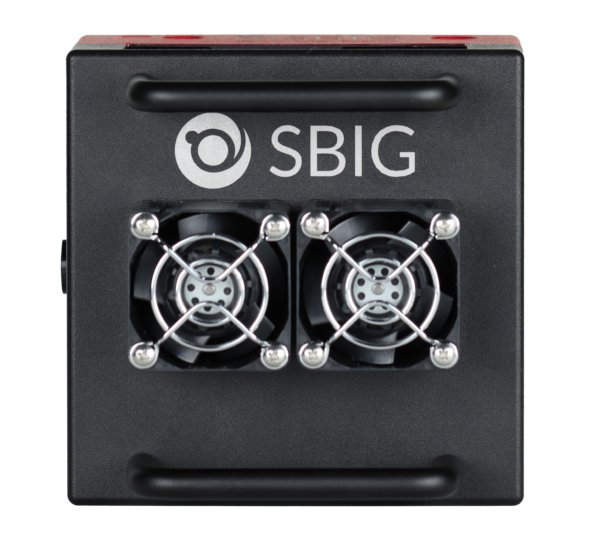

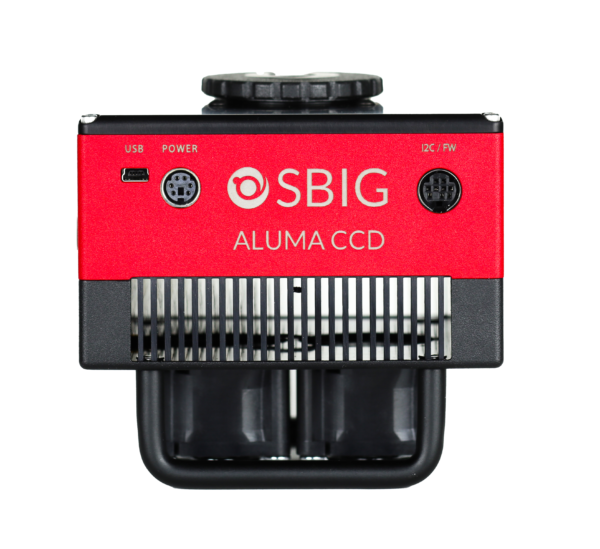

Aluma CCD 77-00 Camera
SBIG
From $14,999.00
2 stores
In stock
The SBIG Aluma CCD 77-00 is a research-grade imaging camera featuring a 512 x 512 pixel back-illuminated full-frame CCD sensor with 24 micron pixels, offering extremely low noise and exceptional sensitivity. This lightweight (2.2 lbs) and compact camera includes two-stage cooling, USB 2.0 interface, an ultra-reliable even-illumination shutter, and fast low-noise readout. The camera uses the E2V CCD 77-00 sensor with peak quantum efficiency of 93% with midband coatings. These cameras are designed for longer focal length instruments typically with apertures greater than 40 cm.
Specifications
| Resolution | 0.26″ |
| Included Software | MaxIm LT |
| Camera Dimensions (with handles) | 4.5 in |
| Array Size | 512 |
| Weight | 2.2 lb |
| Interface | USB 2.0 |
| Driver Support | ASCOM, Native Drivers |
| Quantum Efficiency (Peak) | 93% |
| Sensor Format | Back-Illuminated Full-Frame |
| Cooling Delta from Ambient | -50 °C |
| Sensor type | E2V CCD 77-00 Back-Illuminated Full-Frame |
| Cooling System | Two-Stage Thermoelectric |
| Data Type | 16-bit |
| Pixel Size | 24 μm |
| Shutter Type | Twin Vane Mechanical Even-Illumination |
| Chip Size | 12.3 mm |
