533M Cooled Monochrome CMOS Camera W/ CFW3 Small 7 Position Filter Wheel & Small Off-Axis Guider
QHY
From $1,459.00
3 stores

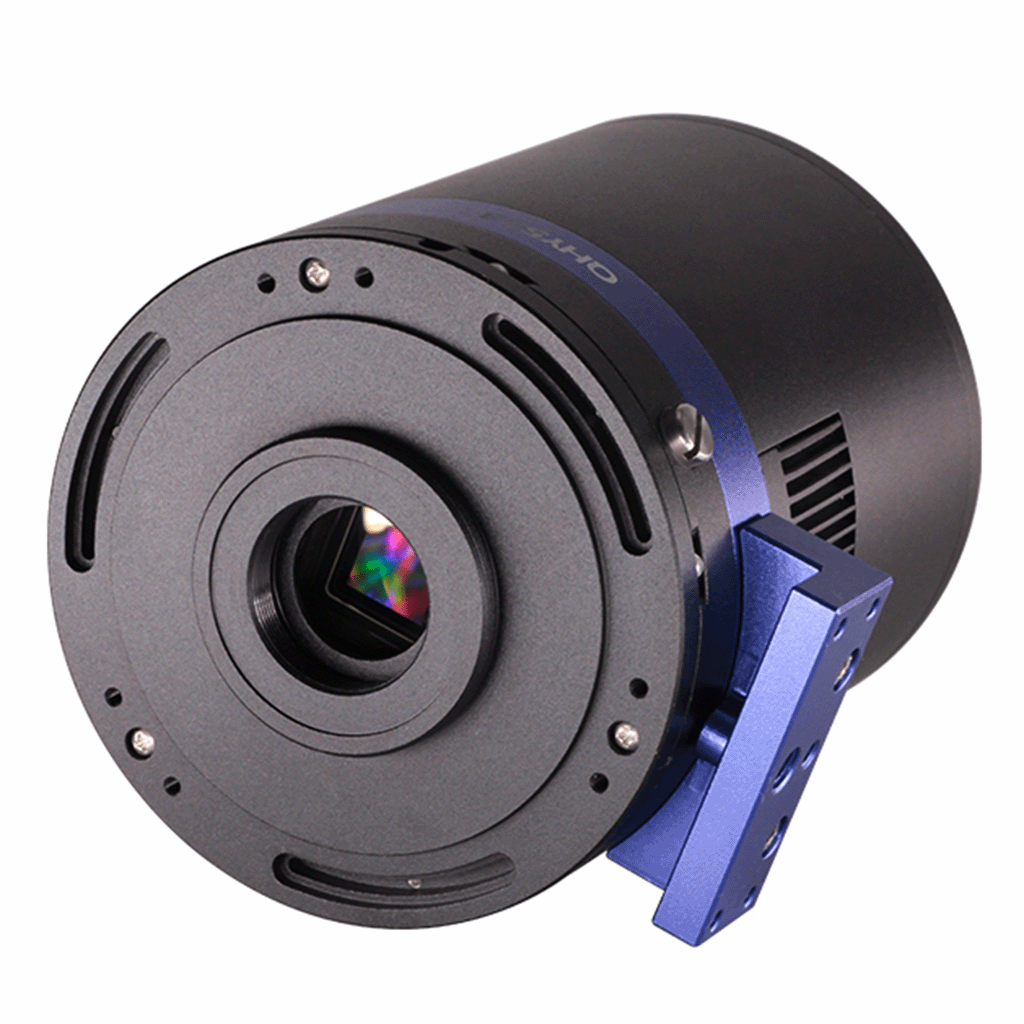

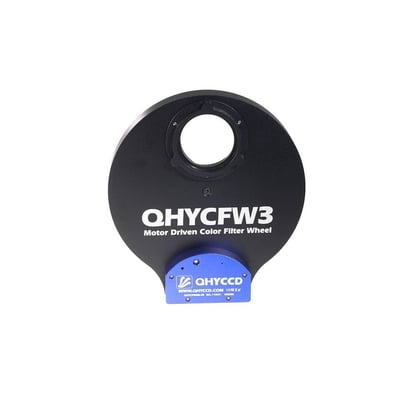

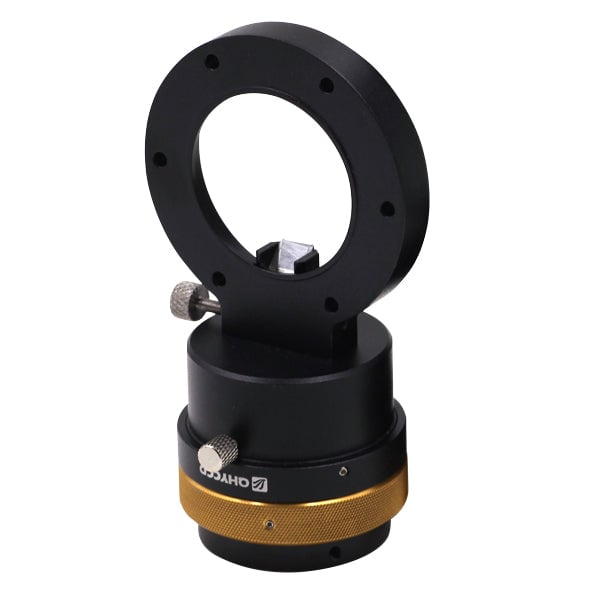

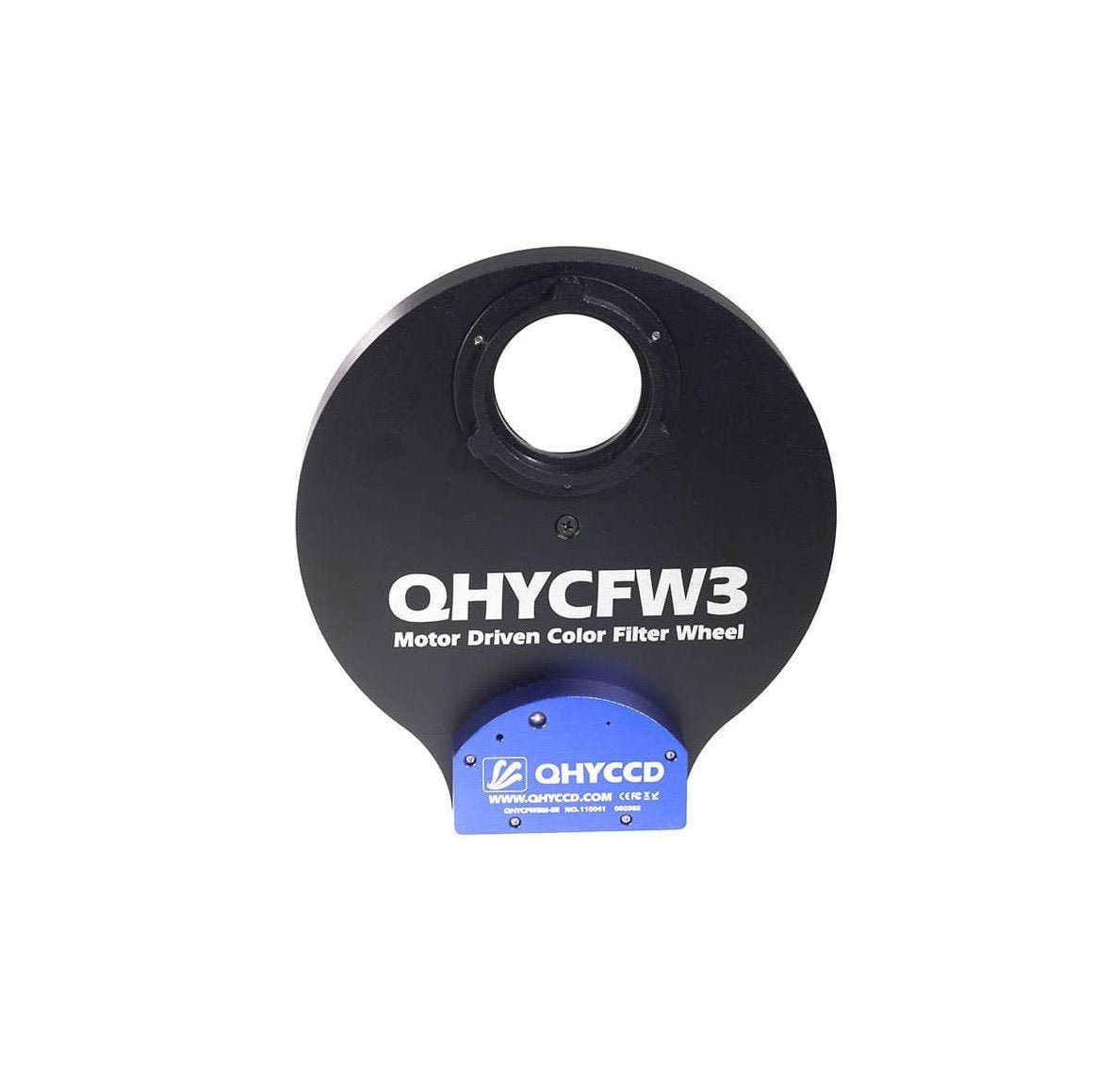

The QHY533M is a back-illuminated CMOS camera with 3.76um pixels featuring zero amplifier glow, low noise and high sensitivity, paired with a seven-position filter wheel for 1.25" or 31 mm round filters and a small off-axis guider with 35 mm to the center point and only 10 mm thick design. The 533M's 9MP, 1" sensor enables fine detail resolution while the internal 1GB buffer allows for 27 frame captures per second in 8-bit mode, or 18 frames per second in full 16-bit mode. The camera features active dual-stage cooling and anti-dew technology with built-in heaters to keep the optical window clear from fogging, making this complete system ideal for narrowband astrophotography and portable deep-sky imaging setups.
OPT
533M Cooled Monochrome CMOS Camera W/ CFW3 Small 7 Position Filter Wheel & Small Off-Axis Guider
Worldwide shipping
$1,459.00
High Point Scientific
QHY533M Camera Kit with Small Color Filter Wheel and Small OAG
Ships to US only
$1,584.00
Agena Astro
QHY 533M Cooled Monochrome Astronomy Camera Kit with Small OAG & 1.25"/31mm Filter Wheel
Worldwide shipping
$1,667.00
Specifications
| Sensor type | Back-Illuminated CMOS |
| Sensor Model | Sony IMX533M |
| Resolution | 3003″ |
| Bit Depth | 14 |
| Total Pixels | 9 MP |
| Full Well Capacity | 58 |
| Image Buffer | 1 |
| Amplifier Glow | Zero |
| Sensor Size | 11.29 mm |
| Read Noise | 1.3 to 3.4 |
| Sensor diagonal | 15.97 |
| Dark Current at -20C | 0.0005 |
| Weight | 845 lb |
| Off-Axis Guider Thickness | 10 mm |
| Pixel Size | 3.76 μm |
| Frame Rate 8-bit | 27 fps |
| Interface | USB 3.0 |
| Frame Rate 16-bit | 18 fps |
| Temperature Delta Continuous (exp >1s) | -35 °C |
| Maximum Filter Thickness | 10 mm |
| Cooling Type | Dual Stage TE |
| Back Focus | 17.5 mm |
| Temperature Delta Continuous (exp <1s) | -30 °C |
| Filter Positions | 7 |
| Filter Wheel Type | CFW3 Small 7 Position |
| Filter Size | 1.25 in |
| Off-Axis Guider Center Point Distance | 35 mm |
| Filter Wheel Thickness | 20 mm |
