5III585M
QHY
From ~$363.65
3 stores

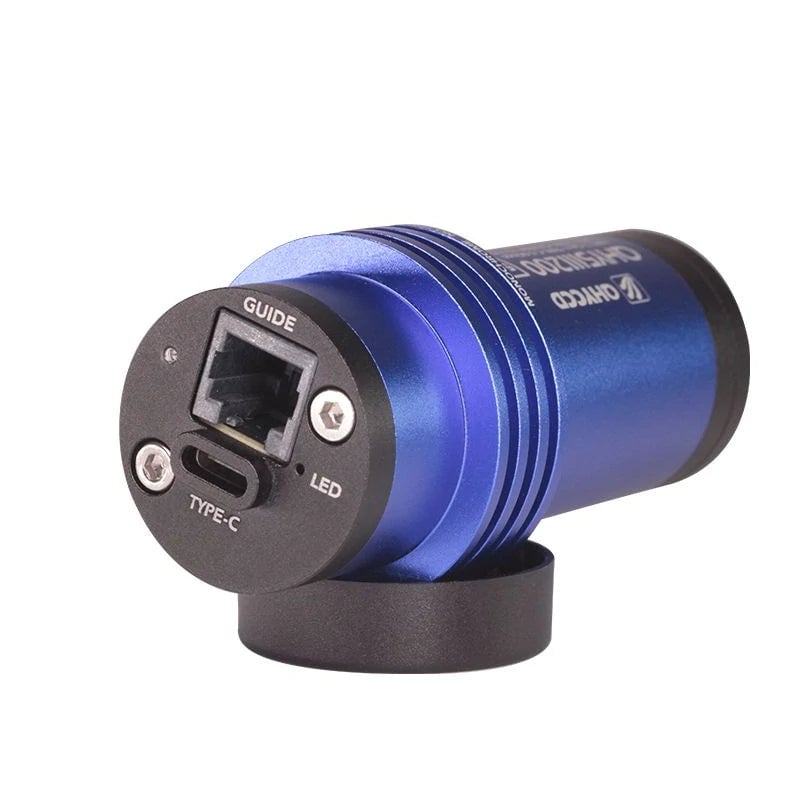

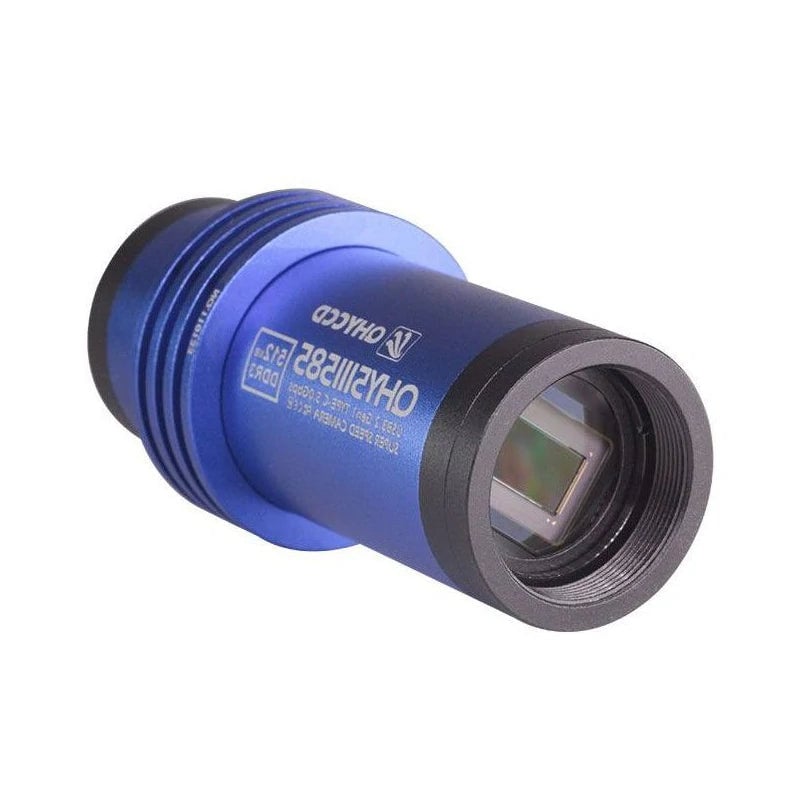

The QHY5III585M is a QHY5III V2 series planetary and guiding camera equipped with a Sony IMX585 sensor, delivering 8.4 megapixels with a pixel size of 2.9μm x 2.9μm. This enhanced version of the QHY5III485M offers high sensitivity in the near infrared with greatly improved dynamic range. Exceptional sensitivity to incoming photons provides highly detailed images of planetary objects like Jupiter and Mars, while offering quick detection of tracking errors when used for guiding. Weighing just 90 grams with a minimal footprint, it easily connects to telescopes with its 1.25" interface, making it ideal for lunar, planetary, and deep-sky astrophotography as well as precision autoguiding applications.
Astronomy Plus
QHY QHY5III585M Mono USB 3.0 Camera (QHY5III585M)
Worldwide shipping
CA$495.00
~$363.65
High Point Scientific
QHY5III585 Monochrome CMOS Planetary and Guide Camera
Ships to US only
$399.00
Astroshop.eu
Camera 5III 585M Mono
Worldwide shipping
€439.00
~$521.15
Specifications
| Sensor Size | 1 mm |
| Frame Rate (8-bit) | 41.5 fps |
| USB Interface | USB 3.2 Gen1 Type-C |
| Cooling | Uncooled |
| Resolution | 8.4″ |
| Full Well Capacity | 50 |
| Sensor Color Type | Monochrome |
| Back Focal Length (without adapter) | 8 mm |
| Sensor type | Back-illuminated CMOS |
| Frame Rate (16-bit) | 23.4 fps |
| Pixel Size | 2.9 μm |
| Memory Buffer | 512 |
| Included Filters | IR-Cut and IR850nm filters |
| Sensor Model | Sony IMX585 |
| Weight | 90 lb |
| Guiding Interface | ST-4 compatible |
| Amplifier Glow | Zero glow |
| Interface | 1.25-inch |
