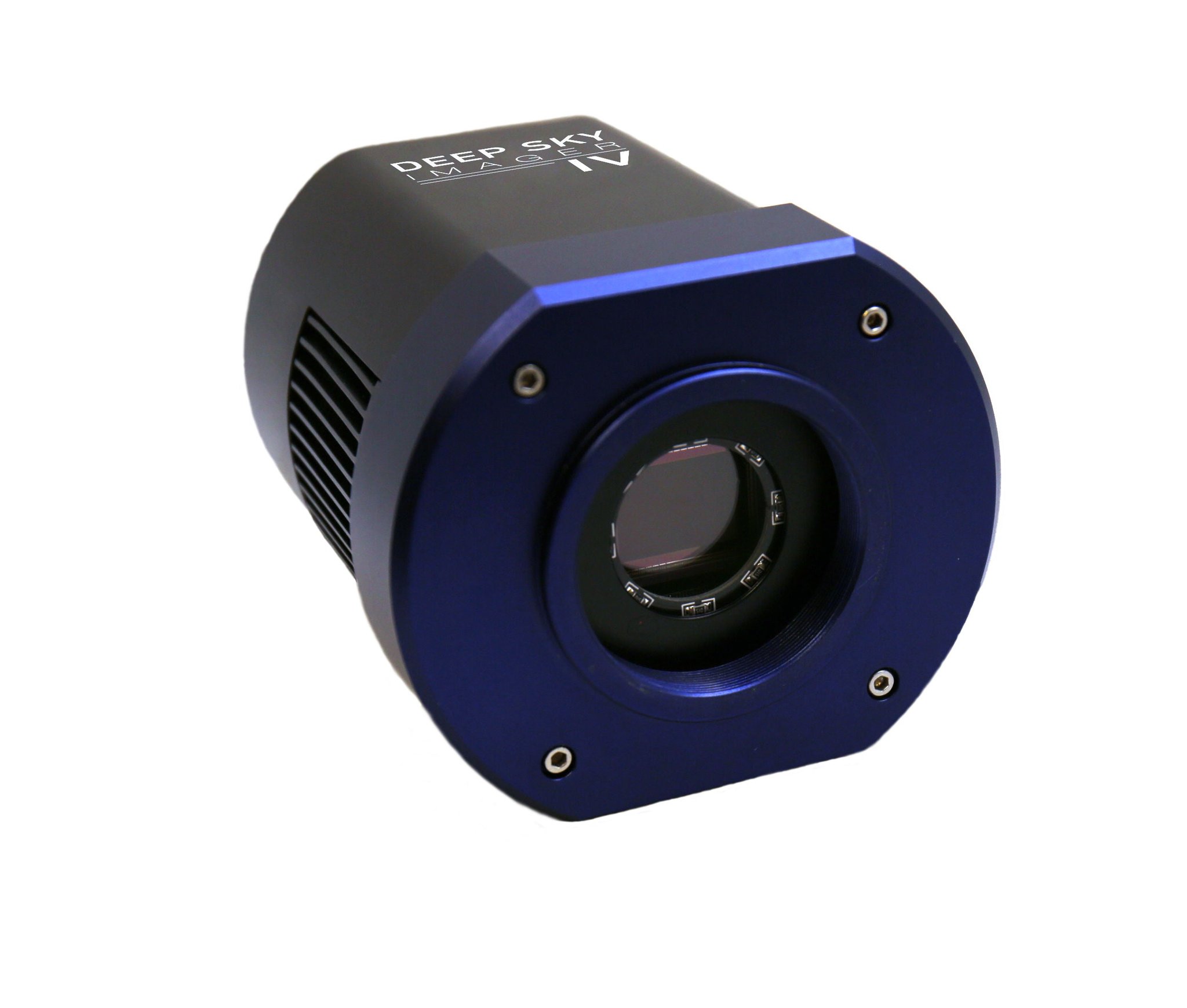

Deep Sky Imager DSI IV CMOS Camera - Color - 633001
Meade
From $1,235.00
3 stores
In stock

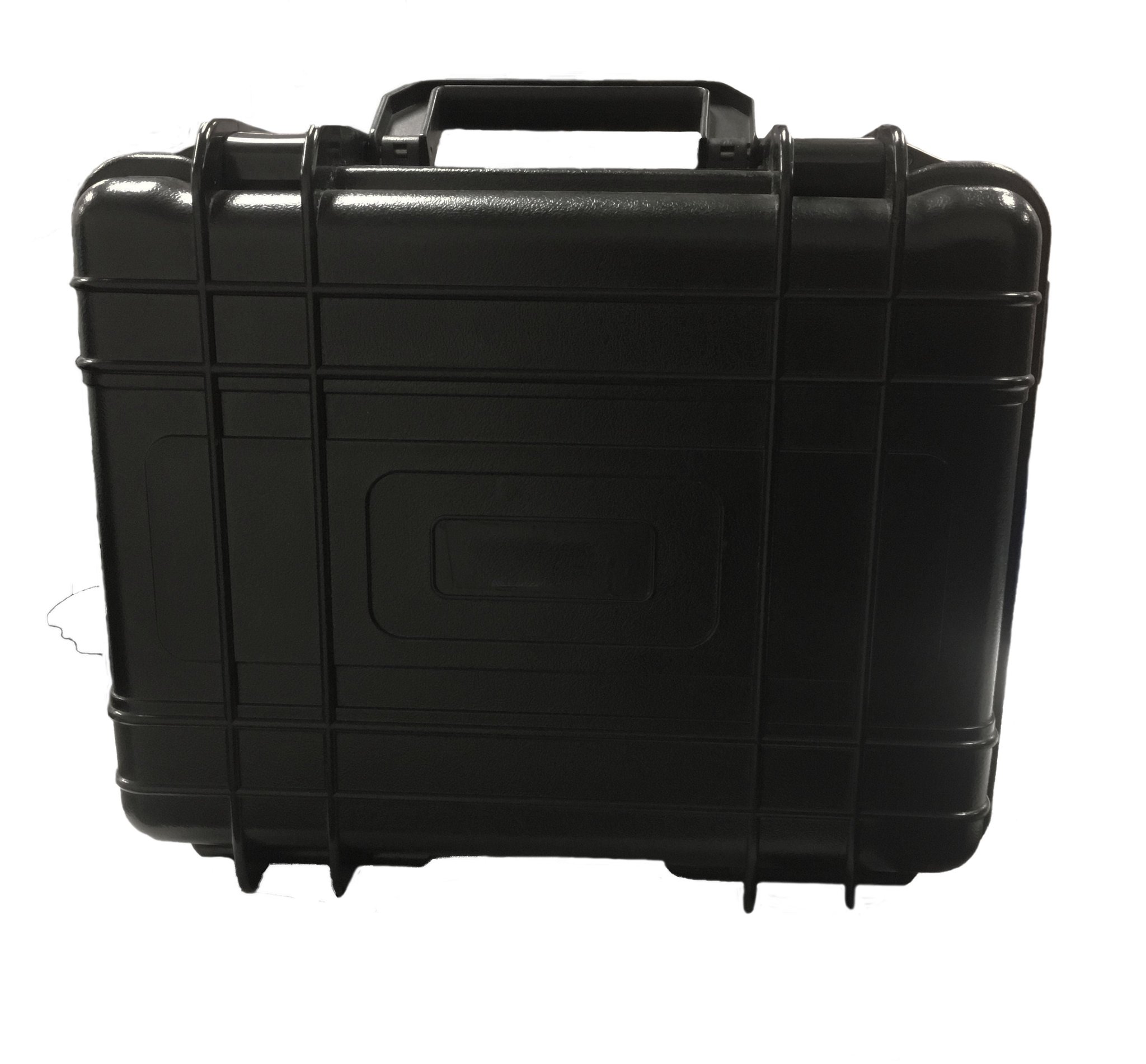

The Meade Deep Sky Imager IV is a versatile one-shot color CMOS camera designed for both planetary and deep-sky astrophotography. Featuring a 16MP Panasonic sensor with 3.8-micron pixels and regulated two-stage thermoelectric cooling, this camera delivers low-noise, high-resolution imaging with fast USB 3.0 readout suitable for lunar, planetary, and deep-space objects. Its broad exposure range from 0.15 milliseconds to 3,600 seconds, combined with included SkyCapture software and weather-resistant carrying case, makes it an excellent all-in-one imaging solution for astronomers of all experience levels.
Specifications
| Pixel Size | 3.8 μm |
| Full Well Capacity | 20 |
| Back Focus | 17.5 mm |
| Sensor type | CMOS |
| Sensor Format | 4/3 |
| Read Noise | 1.2 e- at 30 dB gain |
| Dimensions | 8.75 x 8.16 x 10.49 cm |
| Mount type | M42x0.75 |
| Resolution | 16″ |
| Frame Rate | 23 fps |
| Peak Quantum Efficiency | 60% |
| Interface | USB 3.0 and 2x USB 2.0 |
| Included Software | Meade SkyCapture |
| Sensor resolution | 4640 |
| Exposure Time Range | 0.00015 - 3600 |
| Spectral Range | 405 |
| Cooling System | Two-stage thermoelectric (Peltier) |
| Sensor Size | 17.6 mm |
| ADC | 12-bit |
| Weight | 690 lb |
| Color Type | One-shot color (Bayer array) |
