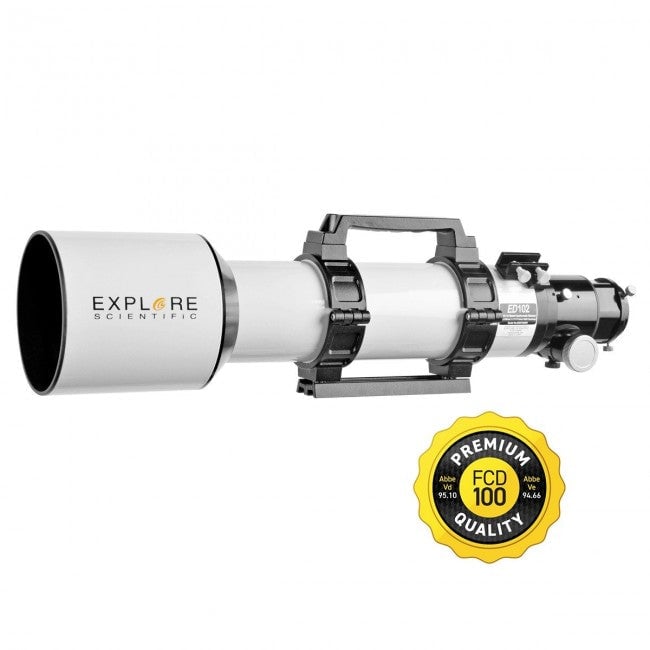

ED102 - FCD100 Series Air-Spaced Triplet Refractor

Explore Scientific

From $1,199.00

2 stores

In stock

The Explore Scientific ED102 FCD100 Series is a premium 102mm air-spaced triplet apochromatic refractor featuring premium HOYA FCD100 extra-low dispersion glass, delivering exceptional color correction and virtually eliminating chromatic aberration for crisp, high-contrast images across the full field. The precision 2.5-inch HEX Crayford-style focuser with dual-speed adjustment supports up to 10 pounds of imaging gear, making it equally capable for visual observation of lunar and planetary detail or astrophotography of deep-sky objects. Lightweight and portable with options in classic aluminum or carbon fiber construction, this f/7 refractor combines diffraction-limited performance with practical versatility for both serious amateurs and dedicated astrophotographers.

Specifications

Aperture 102 mm
Optical design Air-Spaced Triplet Apochromat
Tube Length with Dew Shield 774 mm
Focal length 714 mm
Optical Glass HOYA FCD100 Extra-Low Dispersion
Tube Length without Dew Shield 603 mm
Focal ratio f/7
Focuser Type 2.5-inch HEX Crayford Dual-Speed
Weight (Carbon Fiber) 4.3 lb
Dovetail Plate 45mm Vixen-Style
Resolution 1.14″
Focuser Payload Capacity 10 lb
Diagonal Reflectivity 99%
Limiting Magnitude 12.5
Tube Diameter 119 mm
Weight (Aluminum) 5.4 lb
Multi-Coatings EMD Enhanced Multi-Layer
Explore Scientific ED102 - FCD100 Series Air-Spaced Triplet Refractor
