SQA106
Askar
From $3,395.00
4 stores

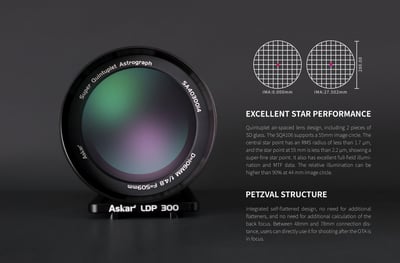

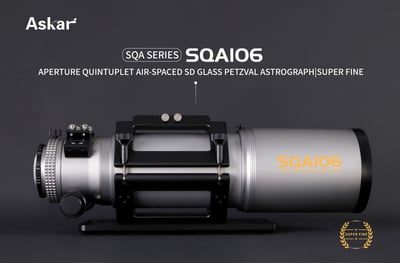

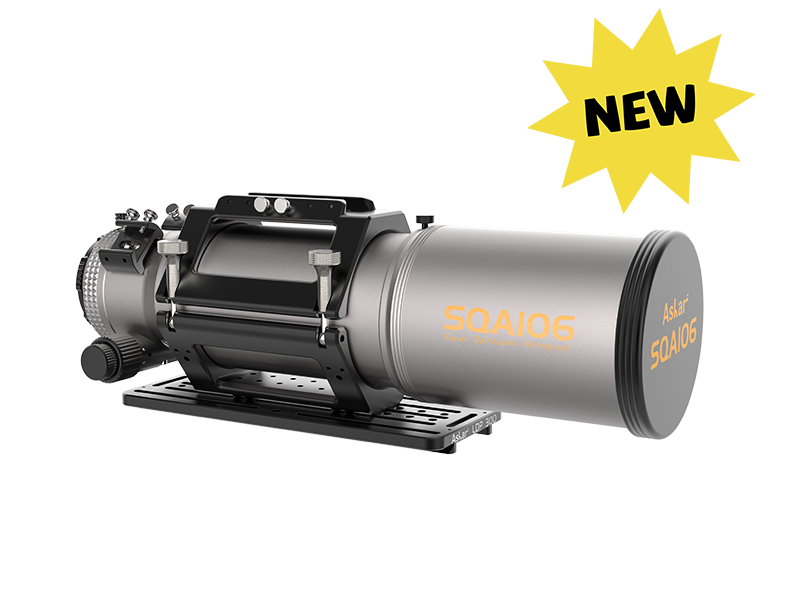

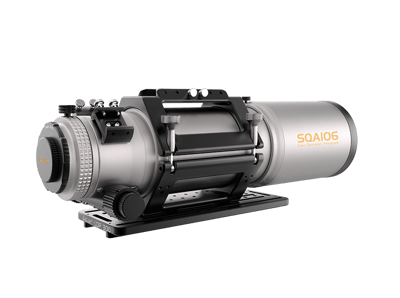

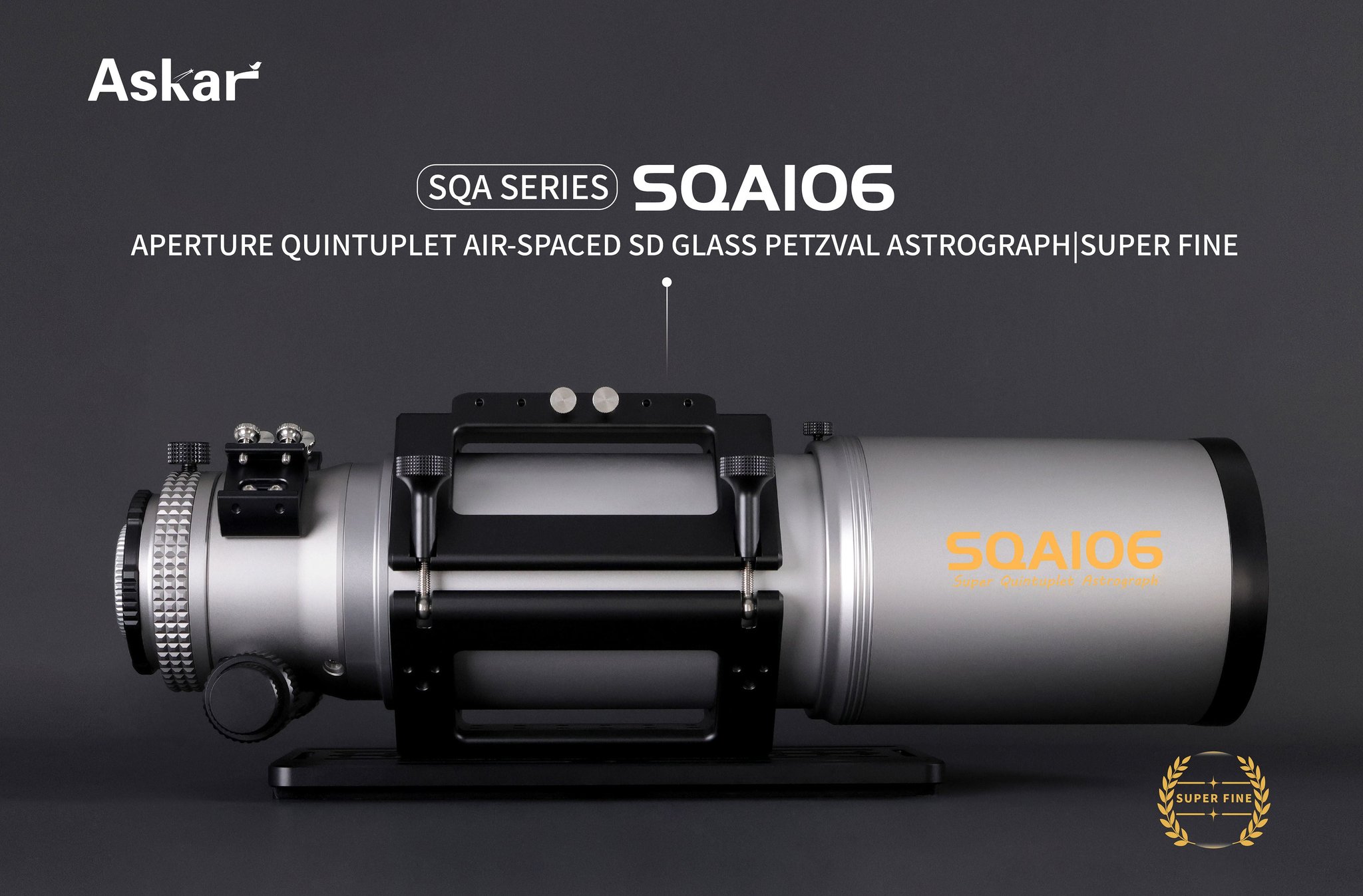

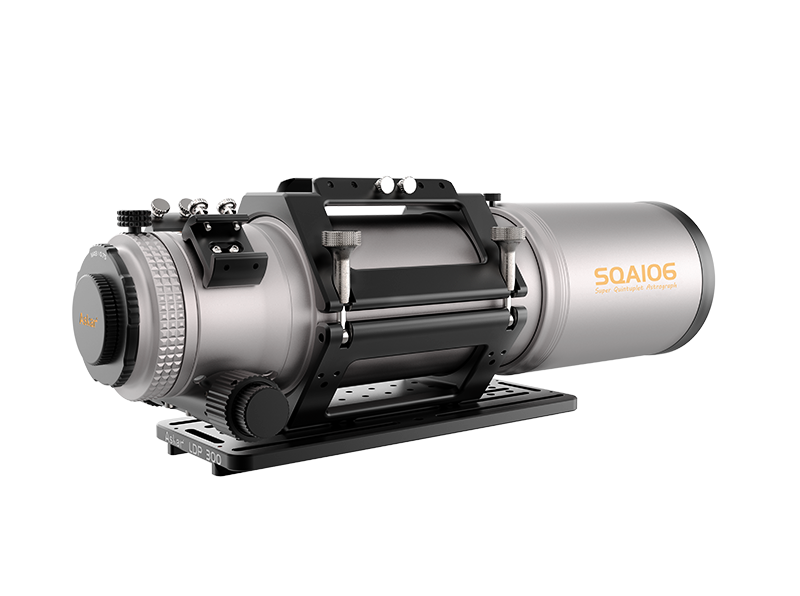

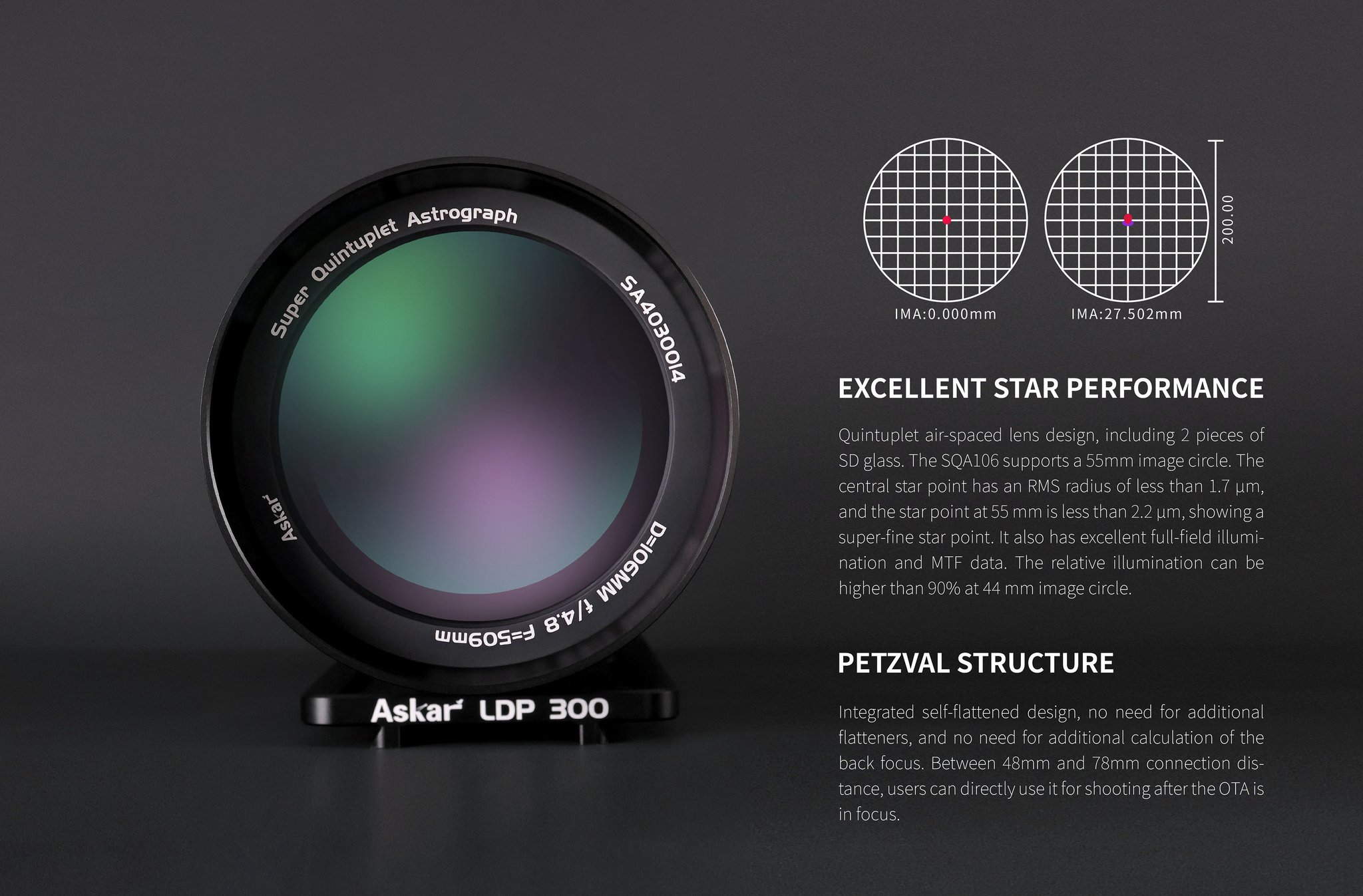

The Askar SQA106 is a quintuplet Petzval astrograph with a focal length of 509mm at F/4.8, featuring a 106mm aperture quintuplet air-spaced SD glass design with a 55mm image circle, making it an excellent choice for imaging with full frame cameras. This integrated flat field design requires no backfocus calculation and no separate field flattener, providing inherent flat fields perfect for full frame sensors. The telescope features a 360° high-precision rotator and a dual-speed 2.8-inch rigid rack-and-pinion focuser compatible with motorized systems, making it an ideal premium choice for serious astrophotographers capturing wide-field nebula imagery and deep-sky objects.
Agena Astro
Askar SQA106 f/4.8 Quintuplet Petzval Refractor Telescope
Worldwide shipping
$3,395.00
Starizona
SQA106 Petzval Astrograph
Worldwide shipping
$3,395.00
High Point Scientific
SQA106 Quintuplet Refractor
Ships to US only
$3,395.00
Astronomy Plus
SQA106 f/4.8 Quintuplet APO (SQA106)
Worldwide shipping
CA$4,753.00
~$3,491.76
Specifications
| OTA Weight | 5.82 lb |
| Image Circle | 55 mm |
| Total Weight with Accessories | 8.12 kg |
| Dovetail | 300mm Losmandy-style |
| Lens Design | Quintuplet Petzval APO with 2 SD glass elements |
| Rotator | 360-degree high-precision with precision scale |
| OTA Length (Dew Shield Extended) | 586 mm |
| Dew Shield | Retractable |
| Focal ratio | f/4.8 |
| Corner Star Point RMS Radius | 2.2 μm |
| Focuser Travel | 30 mm |
| Focal length | 509 mm |
| Focuser Size | 2.8 in |
| Aperture | 106 mm |
| OTA Length (Dew Shield Retracted) | 516 mm |
| Focuser Type | Dual-speed rack-and-pinion |
| Relative Illumination at 44mm | 90% |
| Central Star Point RMS Radius | 1.7 μm |
| Rear Adapters | M68, M54, M48 |
