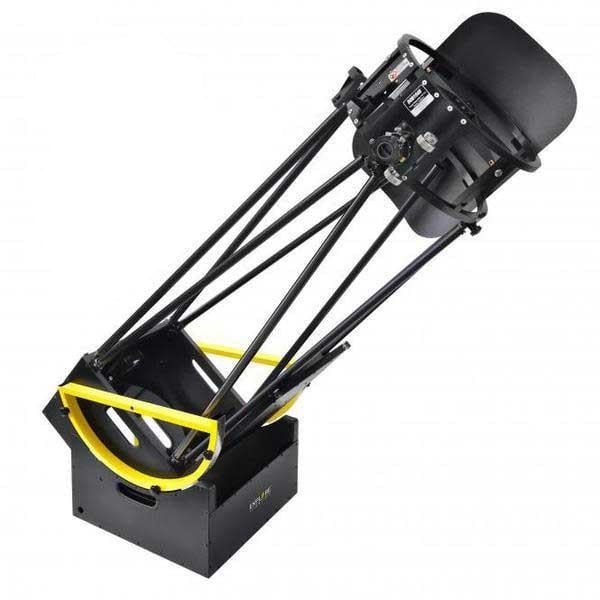

16" Truss Tube Dobsonian- F/4.5
Explore Scientific
$3,599.99
1 stores
The Explore Scientific 16" Truss Tube Dobsonian f/4.5 is a premium large-aperture reflector designed for serious deep-sky observation and lunar-planetary viewing. Its 406mm parabolic primary mirror features a highly reflective coating that corrects spherical aberration across the entire field of view, while the lightweight truss tube design enables surprising portability for a 16-inch telescope. Equipped with a dual-speed 2-inch helical focuser (10:1 reduction), LED red-dot finder, collimation assist tool, soft light baffle, and rear-mounted cooling fans, this Dobsonian delivers exceptional light-gathering power with convenient accessories for fast thermal equilibration and precise focusing at high magnifications.
Specifications
| Focal ratio | f/4.5 |
| Mirror Cell Support Points | 9 |
| Theoretical Limiting Stellar Magnitude | 0.29″ |
| Truss Pole Diameter | 25 mm |
| Secondary Cage Assembly Weight | 8 lb |
| Height to Eyepiece at Zenith | 167 cm |
| Focal length | 1826 mm |
| Focuser Size | 2 in |
| Finderscope | LED Red Dot |
| Secondary Obstruction | 25% |
| Theoretical Maximum Magnification | 800 |
| Truss Pole Length | 140 cm |
| Secondary Cage Assembly Height | 17 cm |
| Mirror Box Weight | 66 lb |
| Design Type | Truss tube Newtonian reflector |
| Theoretical Limiting Magnitude | 15.74 |
| Theoretical Rayleigh Limit | 0.34″ |
| Secondary Cage Assembly Diameter | 48 cm |
| Mirror Box Height | 42.5 cm |
| Focuser Type | Dual-speed helical rack and pinion with 10:1 reduction |
| Mount type | Alt-Azimuth rocker box |
| Aperture | 406 mm |
