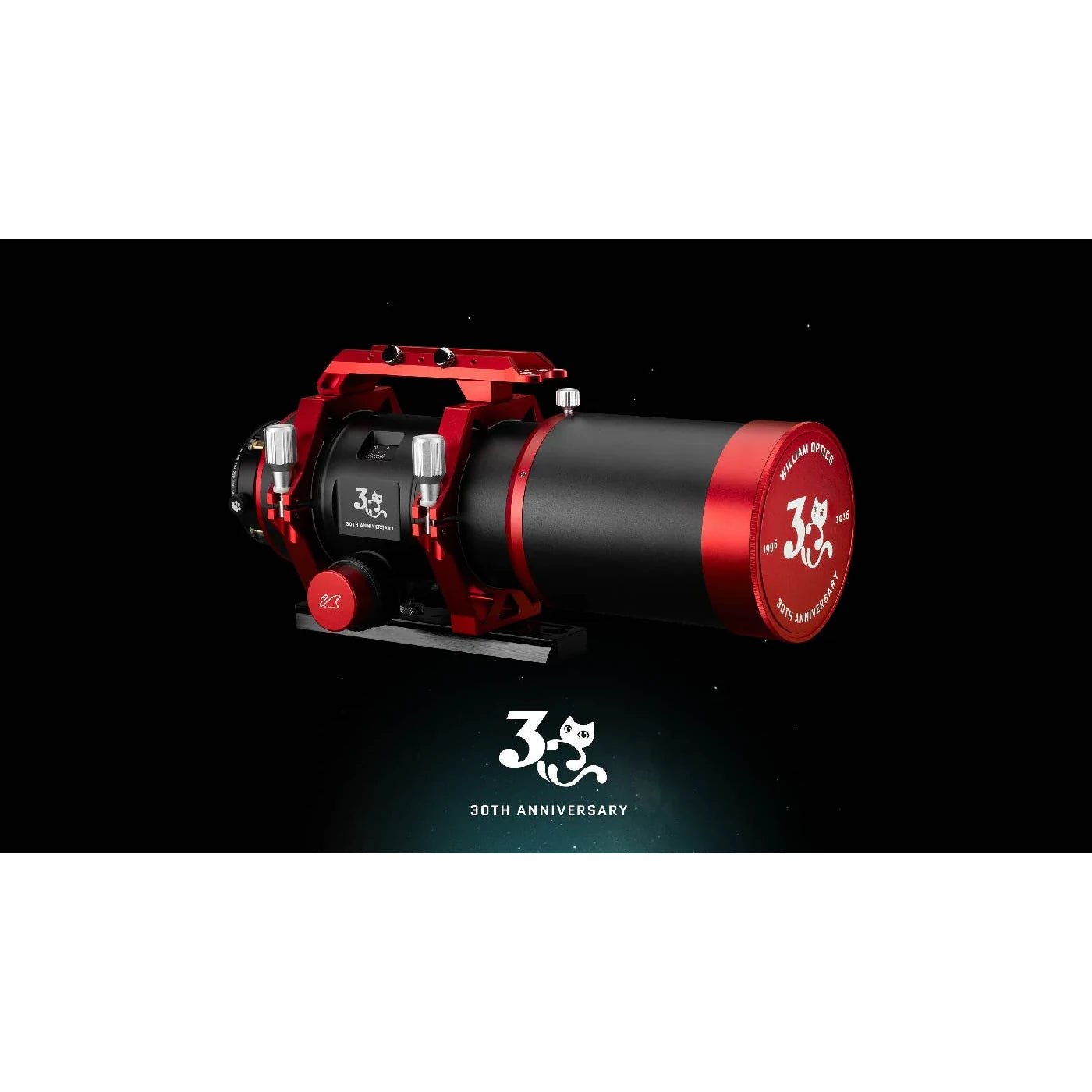

Ultra-Cat 76

William Optics

~$2,089.38

1 stores

In stock

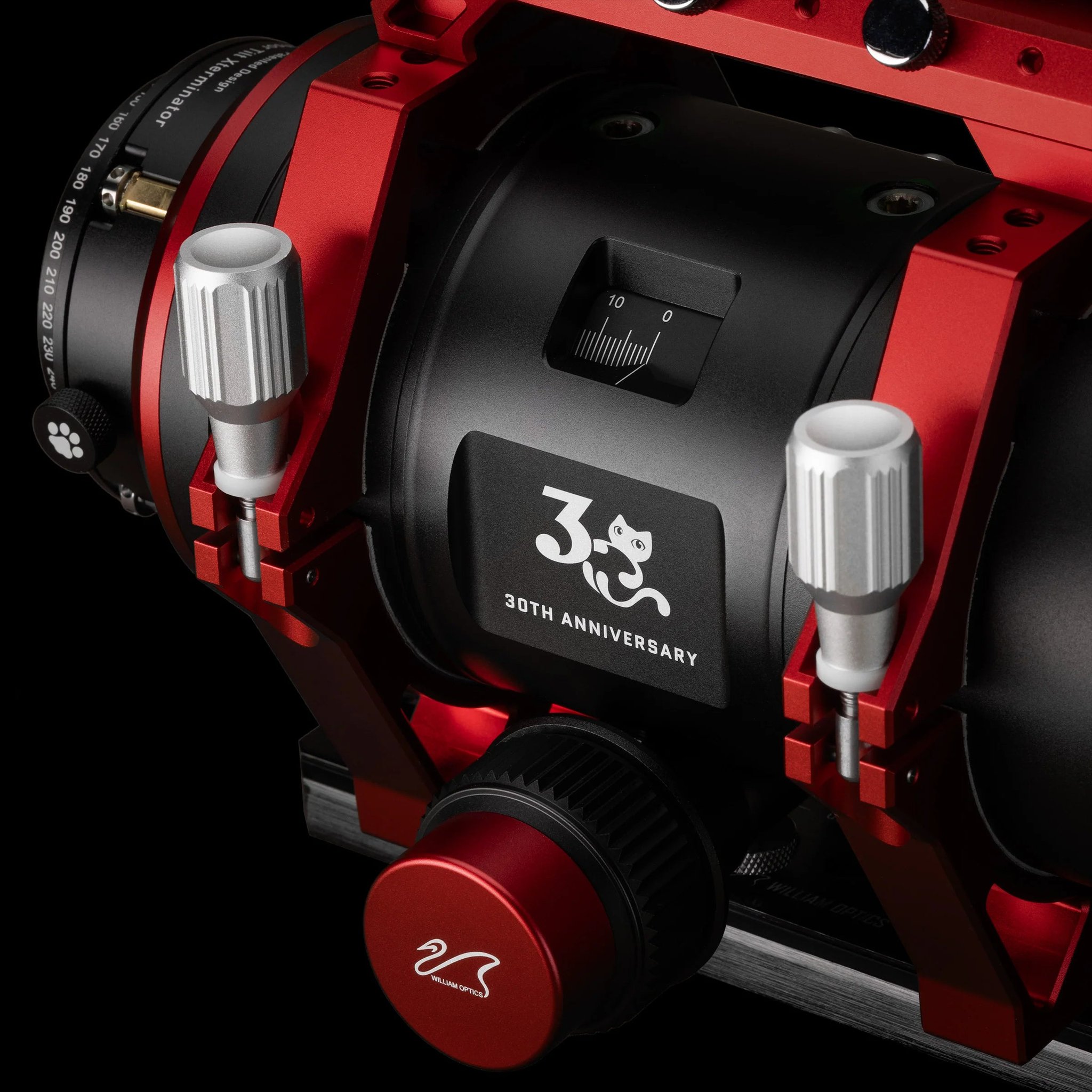

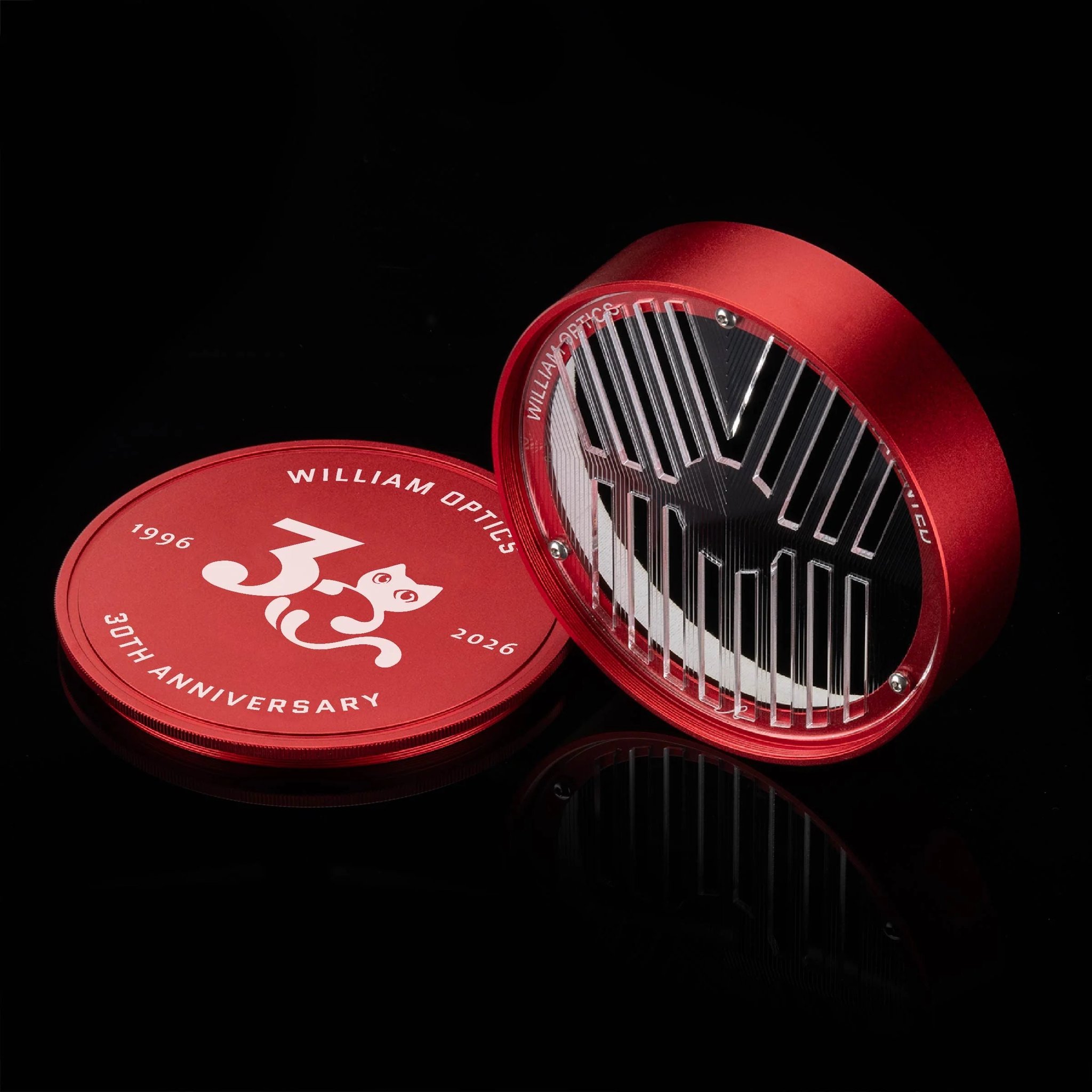

The Ultra-Cat 76 is a high-performance 76mm apochromatic refractor designed for astrophotographers who demand exceptional clarity and true color accuracy, featuring a 5-element advanced Petzval optical design with super ED and lanthanum glass and a fast f/4.8 focal ratio that delivers stunningly sharp, flat-field images across its 50mm image circle. Optimized for Full Frame, APS-C, and M4/3 sensors, it also offers compatibility with Medium Format cameras for outstanding wide-field astrophotography. The patented WIFD focusing design relocates the focuser to the center of the telescope, eliminating tube tilt caused by the weight of cameras and accessories, and by removing the need for a traditional rear drawtube, the optical path remains fully unobstructed. This limited edition of 100 units worldwide combines uncompromising astrophotography performance with a symbolic anniversary finish, featuring a unique laser-engraved emblem of a cat embracing "30" and personally hand-signed by founder William Yang on the lens cover.

Specifications

Limited Edition 100 units
Aperture 76 mm
Glass Elements 2 Super ED, 1 ED, 1 Lanthanum, 1 X-Element
Total Weight 4.98 kg
Focal ratio f/4.8
Focus Travel 20 mm
Dovetail Type Vixen / Arca-Swiss
Included Accessories 32mm UniGuide guide scope, M48 and M54 adapters, Sensor Tilt Xterminator, Bahtinov mask, rotator
Focal length 365 mm
Focuser Type WIFD Rack-and-Pinion
Flattener Required false
Anniversary Edition 30th Anniversary
Image Circle 50 mm
Tube Length 363 mm
Field Flattener Not required
Optical design 5-Element Advanced Petzval
OTA Weight 3.81 lb
