$1,699.99
1 stores

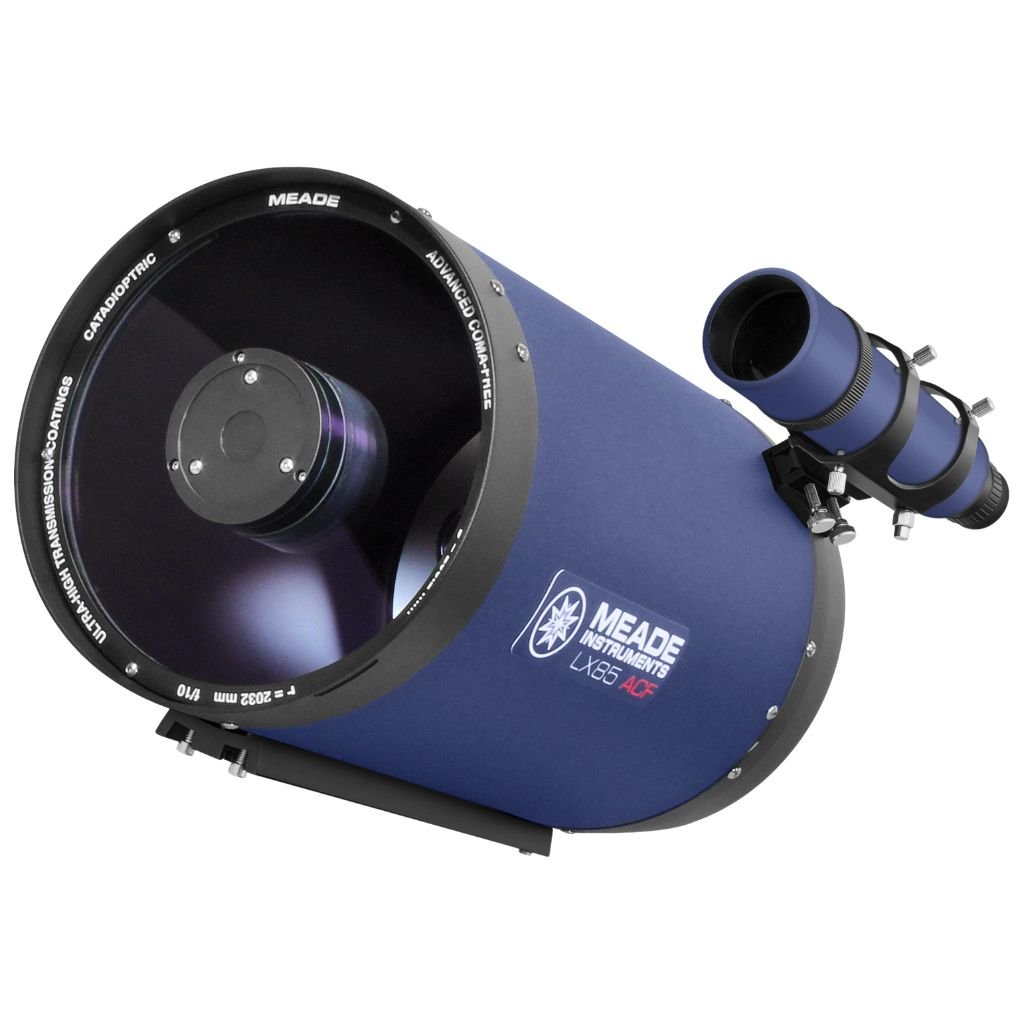

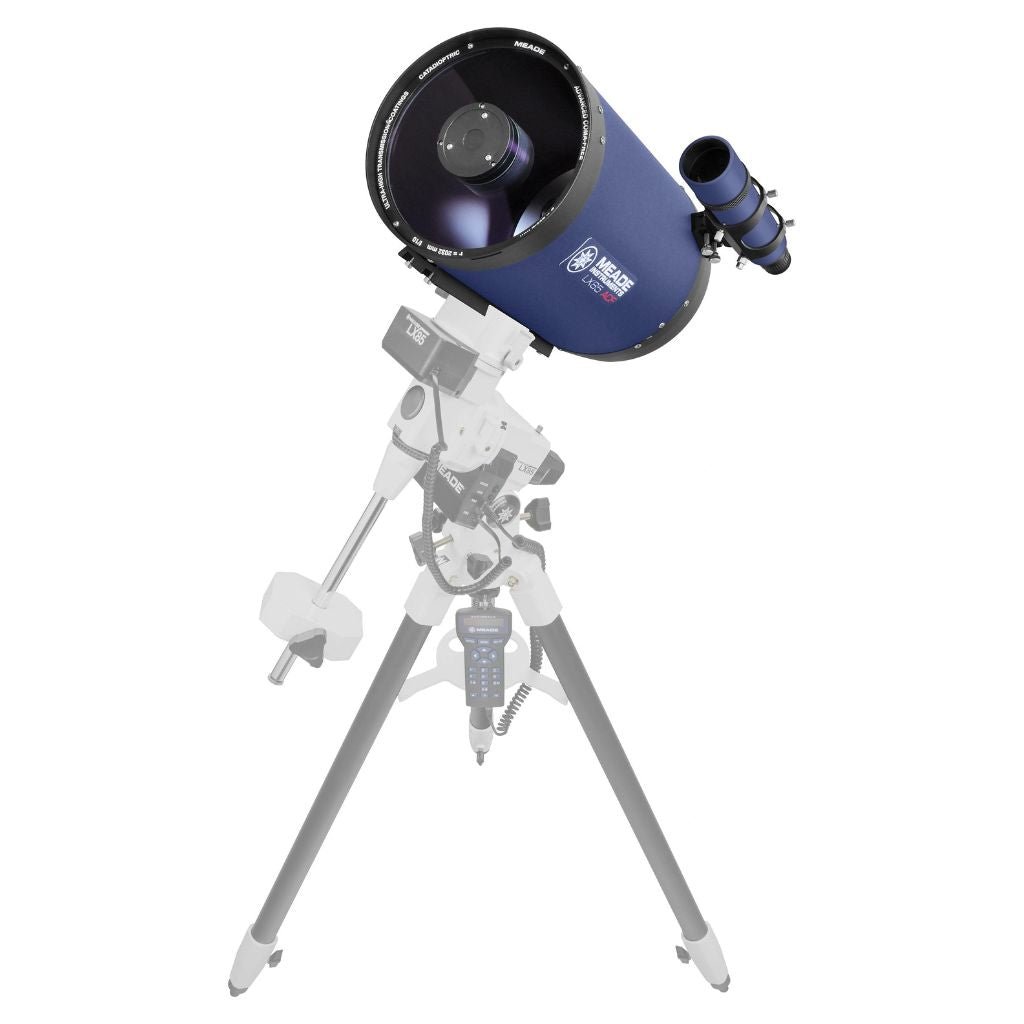

The Meade 8" f/10 LX85 ACF optical tube assembly offers large aperture in a very compact form, featuring an Advanced Coma-Free (ACF) optical system with Ultra-High Transmission Coatings (UHTC), an oversized low-expansion Borosilicate primary mirror, and a Schott Borofloat glass corrector plate. ACF optics achieve aplanatic performance with a flatter field, reduced astigmatism and no diffraction spikes. Designed to be portable and lightweight, the OTA includes a Vixen-style dovetail bar for attachment to any Vixen compatible mount. This telescope utilizes Meade's Advanced Coma-Free catadioptric light path to reduce color fringing and off-axis comas, enabling it to clearly resolve dim deep-sky objects and easily split binary stars with tack-sharp clarity.
| Highest magnification | 406 |
| Optics type | Reflector |
| Focal length | 2032 mm |
| Focal ratio | f/10 |
| Optical design | Advanced Coma-Free (ACF) Catadioptric |
| Aperture | 203 mm |
| Coating | Ultra-High Transmission Coatings (UHTC) |
| Primary Mirror | Low-expansion Borosilicate |
| Corrector Plate | Schott Borofloat Glass |
| Weight | 5.2 lb |
| Optical Tube Length | 460 mm |
| Optical Tube Diameter | 250 mm |
| Focuser Type | Internal Single-Speed |
| Nosepiece Size | 1.25" |
| Dovetail Type | Vixen-Style |
