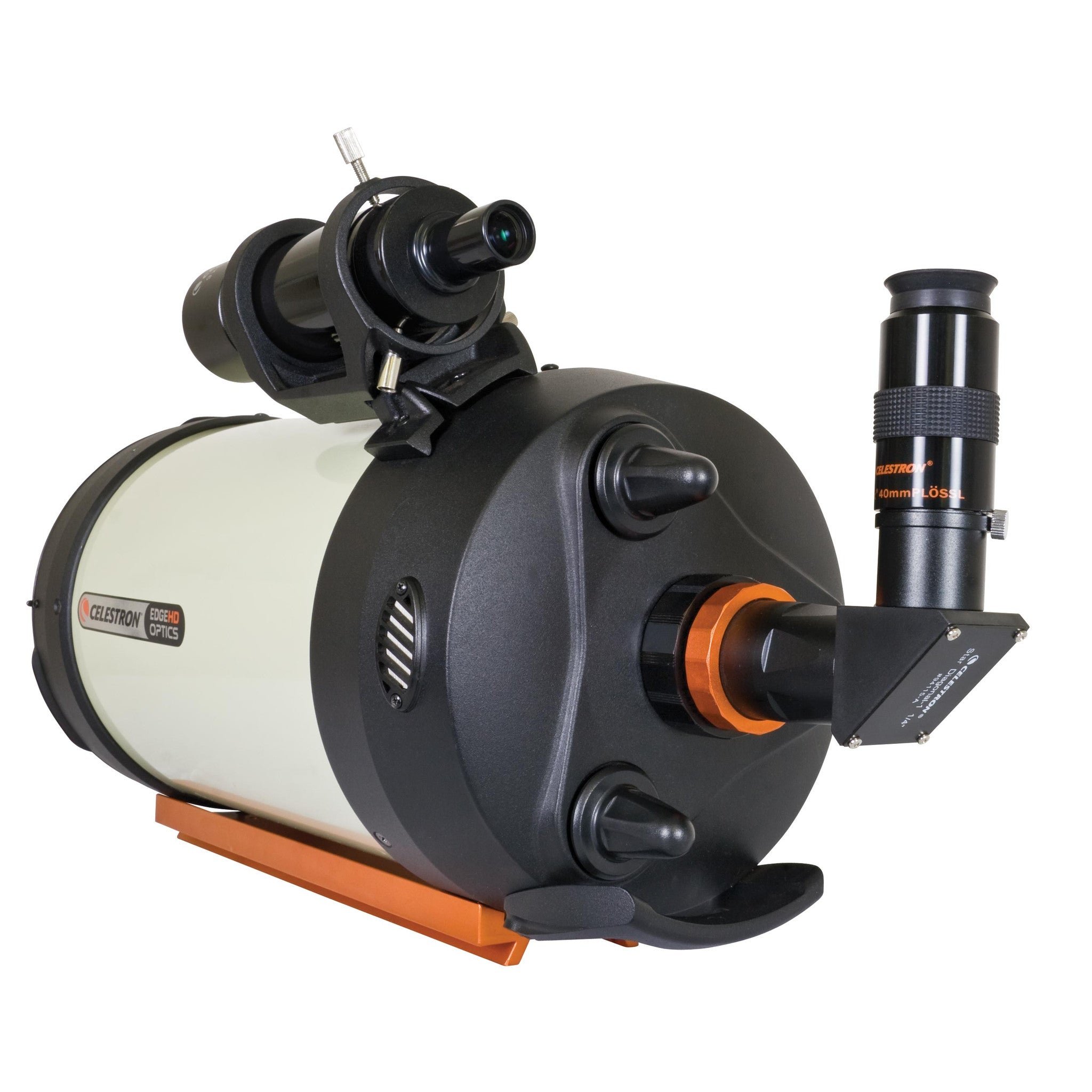

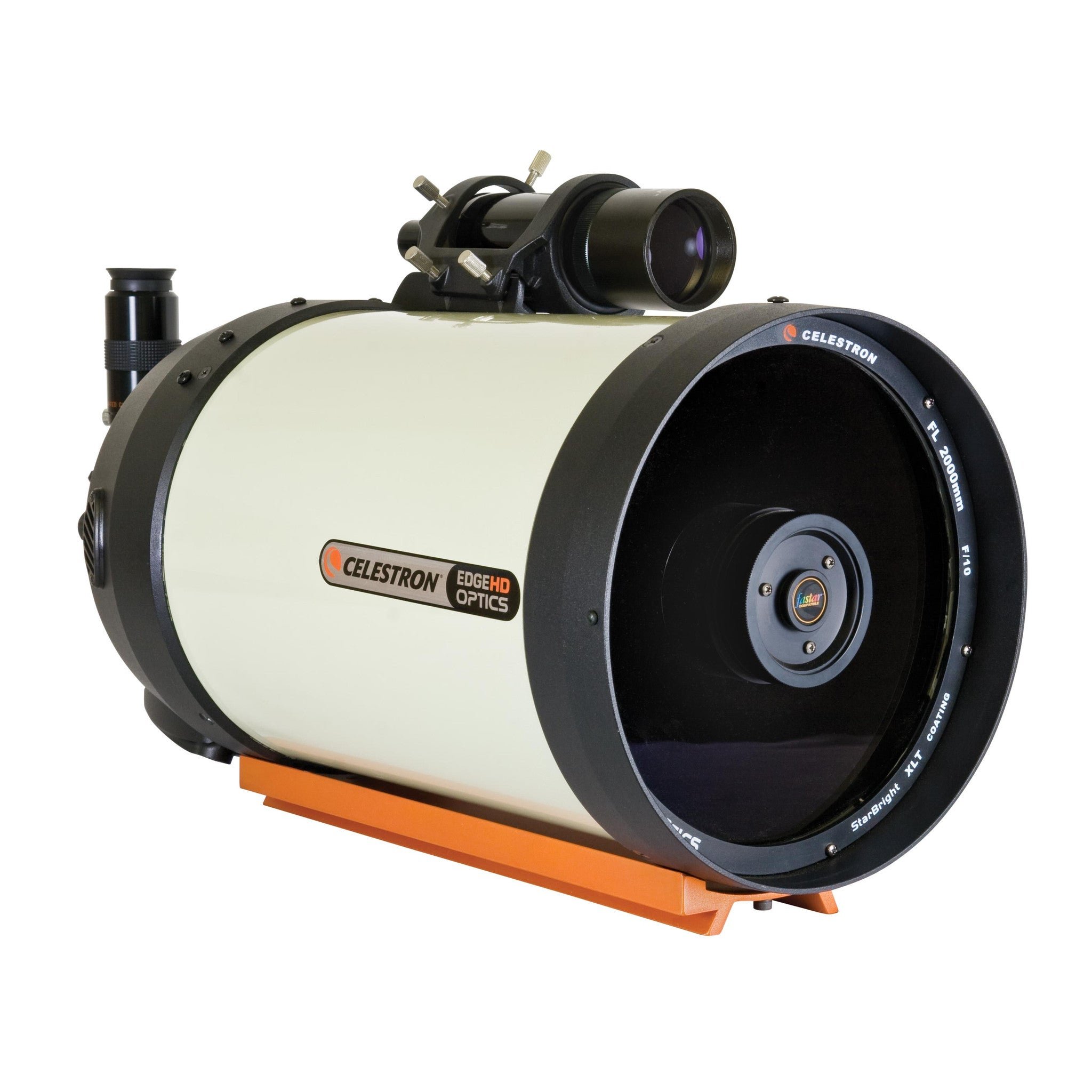

14 Inch EdgeHD OTA Optical Tube - 91060-XLT
Celestron
From $6,299.00
2 stores

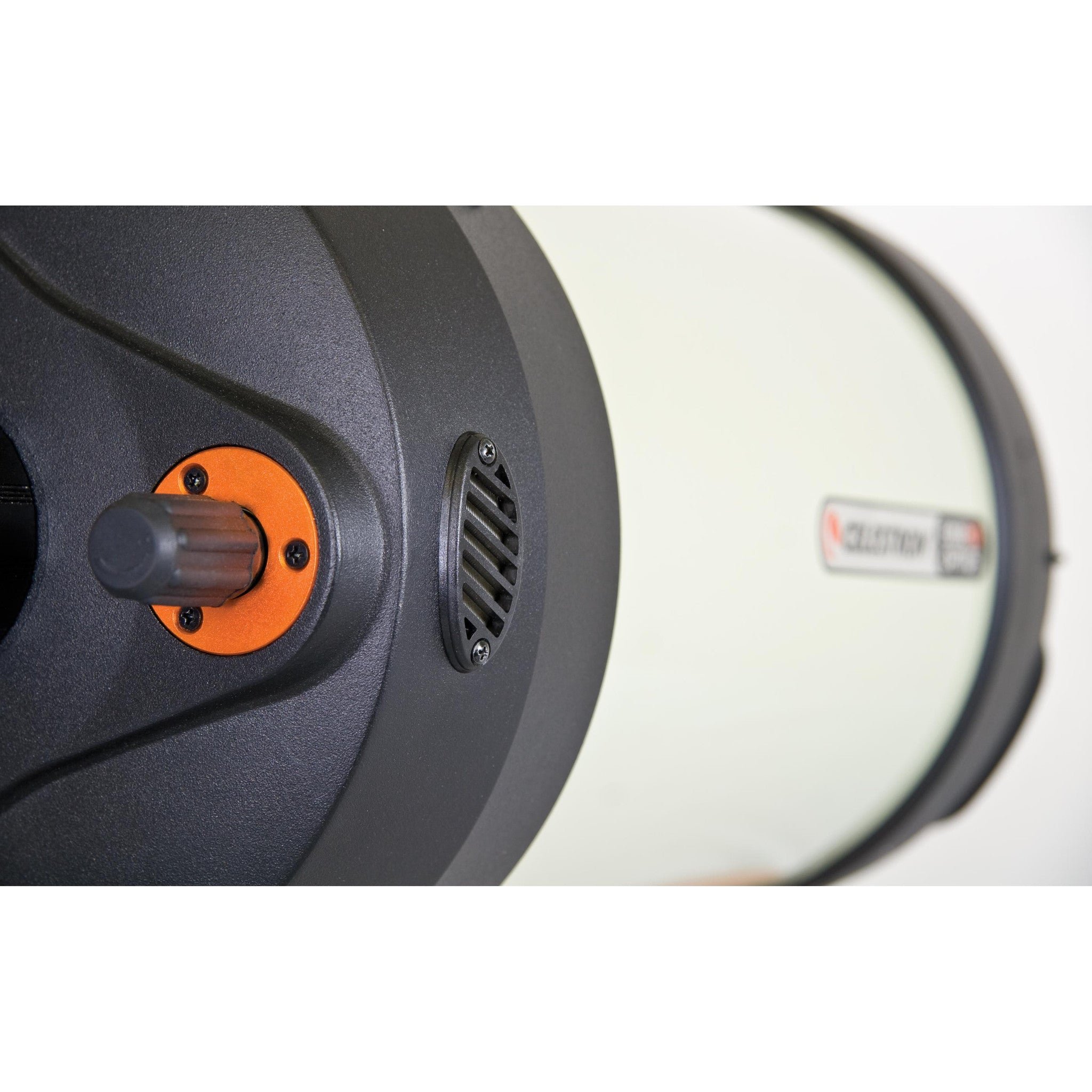

The Celestron EdgeHD 14" is the largest optical tube in Celestron's aplanatic flat-field Schmidt-Cassegrain line, designed specifically for high-resolution astrophotography and visual observation. Featuring a 3910mm focal length at f/11 with proprietary StarBright XLT coatings delivering 97.4% light transmission, this scope produces aberration-free images across a flat focal plane all the way to the edges of large-format imaging sensors. The versatile optical design accommodates three focal ratios (native f/11, f/7 with focal reducer, or ultra-fast f/2 with Fastar accessory) and includes mechanical refinements such as flexible mirror clutches to minimize image shift during long exposures, along with ventilated cooling systems for thermal stability.
Specifications
| Secondary Mirror Obstruction | 4.5% |
| Mirror Diagonal | 2-inch |
| Optical Coatings | StarBright XLT |
| Tube Construction | Aluminum |
| Aperture | 14 mm |
| Dovetail Mount | CGE |
| Focal length | 3910 mm |
| Focal ratio | f/11 |
| Resolution Rayleigh | 0.39″ |
| Fastar Compatible | ✓ |
| Resolution Dawes | 0.33″ |

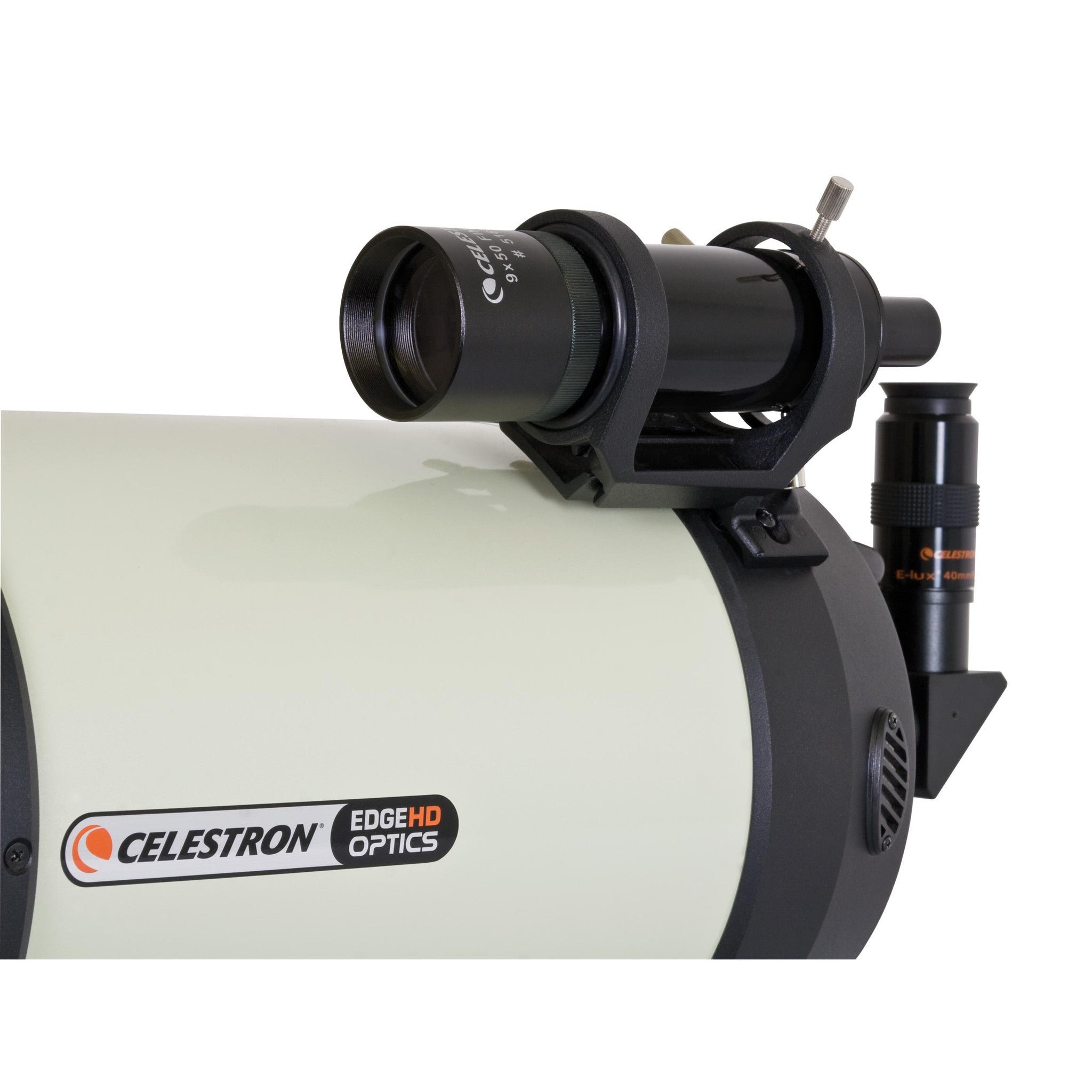

| Included Finderscope | 9x50 |
| Light Transmission | 97.4% |
| Included Eyepiece | 23mm Luminos 2-inch |
| Optical design | Aplanatic Schmidt-Cassegrain |
| Warranty | 2 |
