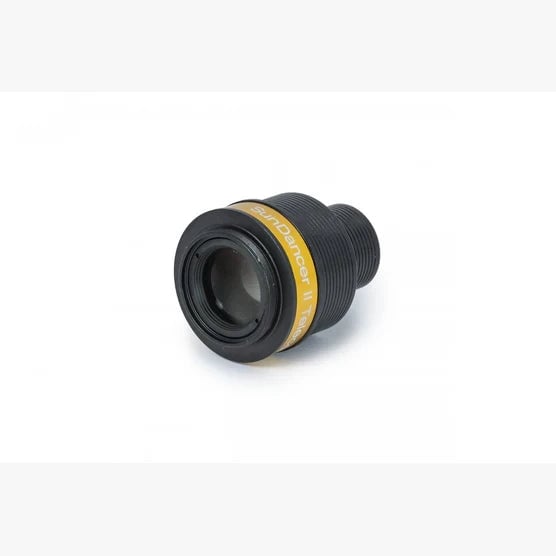

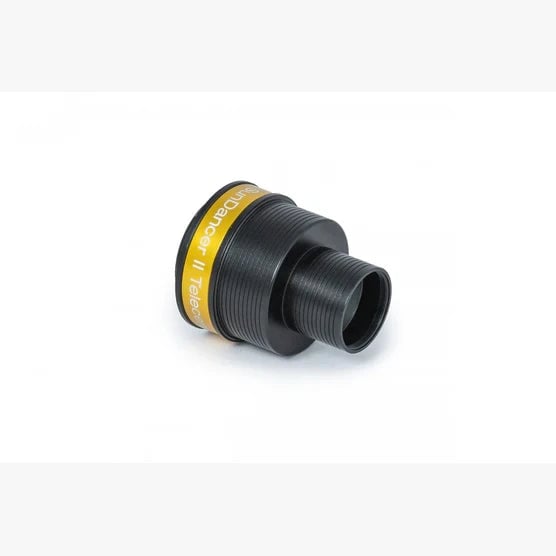

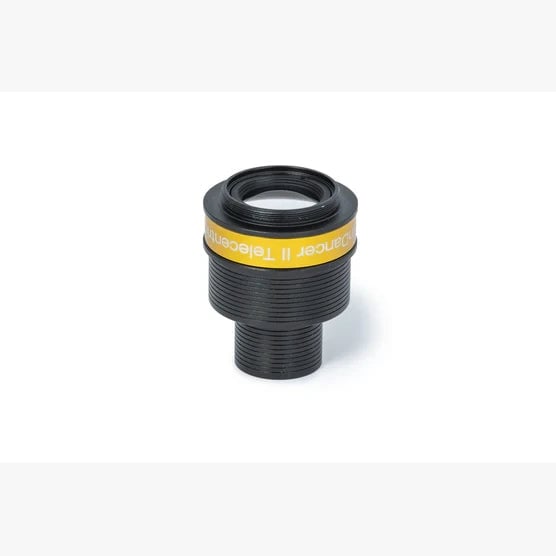

SunDancer II Telecentric System TZ-3S
Baader
From ~$386.11
2 stores
In stock
The Baader SunDancer II TZ-3S is an achromatic 3x telecentric system designed for H-alpha solar observation and planetary imaging that uses parallel light rays to maintain consistent magnification and image quality independent of working distance. Unlike standard Barlow lenses, this four-lens optical design with BBAR coating provides superior contrast and can serve as a high-quality magnification multiplier for both H-alpha filtered and broadband visual observation. Ideal for small-sensor planetary cameras, the system features dual 1.25"/2" nosepieces for telescope connection and a T-2 thread for camera attachment, achieving an f/30 focal ratio on f/10 telescopes.
Specifications
| Optical design | Four-lens achromatic |
| Input Focal Ratio | f/10 |
| Focus Position Offset | 3 mm |
| Clear Aperture | 27.5 mm |
| Magnification Factor | 3 |
| Output Focal Ratio | f/30 |
| Coating | BBAR (Broad-Band Anti-Reflection) |
| Warranty | 5 |
| Working Distance | 95 mm |
| Filter Thread | 1.25 inch |
| Image Circle | 27.5 mm |
| Camera Connection | T-2 thread |
