$4,499.00
1 stores

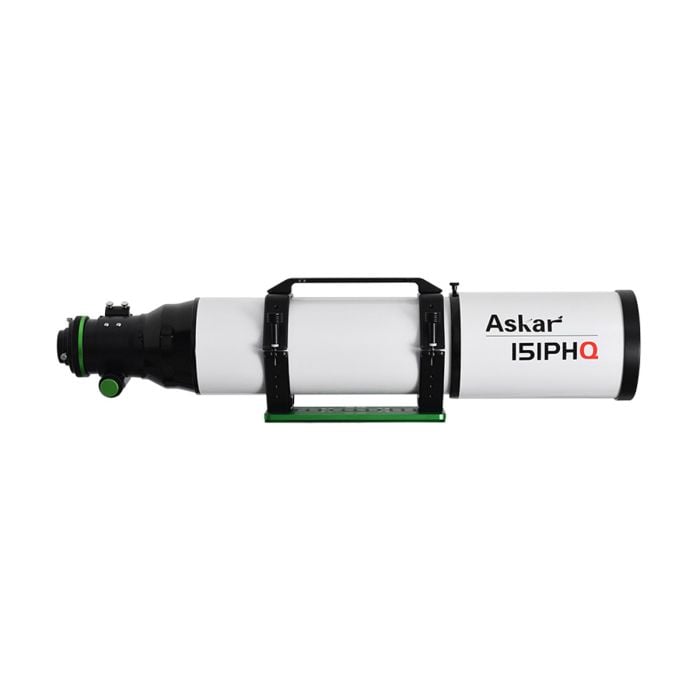

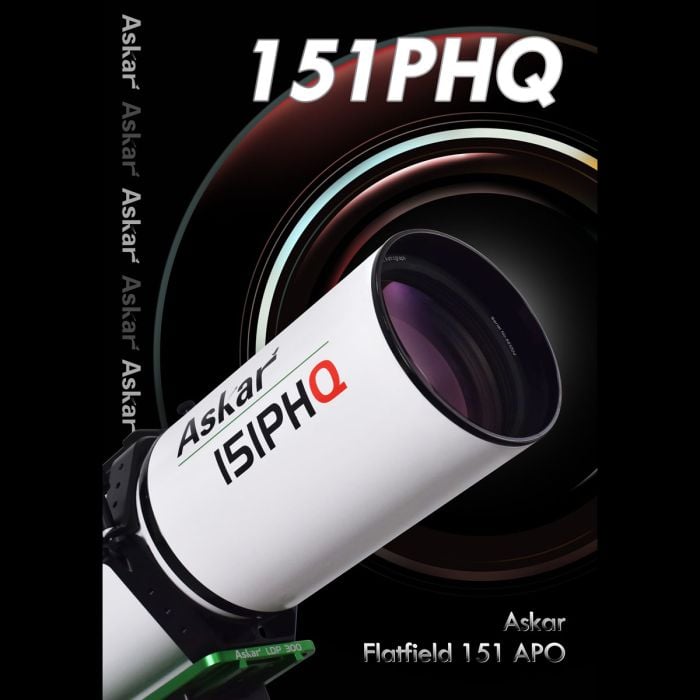

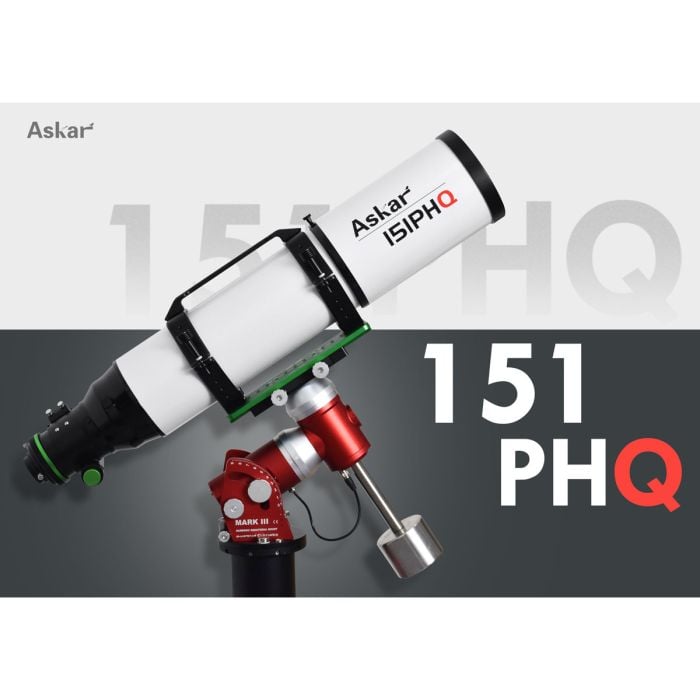

The Askar 151PHQ is a quadruplet astrograph refractor featuring a 151mm aperture and 1057mm focal length for an f/7 focal ratio, designed to produce stunning flat field images of deep sky objects with a 60mm image circle that can handle sensors larger than full frame into medium format territory. This quadruplet design features a built-in field flattener, eliminating the need for separate flattening optics and making it ready for imaging right out of the box. With two ED elements, the scope offers excellent chromatic aberration control, and independent testing confirms an impressive Strehl ratio of 0.97. The scope comes standard with a large 3.4" rack & pinion focuser, a 360° rotator, and includes interchangeable M68, M54, and M48 photographic adapters, making it versatile for both astrophotography and visual observation.
| Focal length | 1057 mm |
| Back Focus (Imaging Mode) | 78 mm |
| Reduced Focal Ratio (with 0.7x Reducer) | f/4.9 |
| Strehl Ratio | 0.97% |
| Dovetail Plate Length | 300 mm |
| Optical design | Quadruplet with 2 ED Elements |
| Focal ratio | f/7 |
| RMS Radius | 2 μm |
| Field Flattener | Built-in |
| Image Circle | 60 mm |
| Weight | 13 lb |
| Reduced Focal Length (with 0.7x Reducer) | 740 mm |
| Aperture | 151 mm |
| Focuser Size | 3.4 in |
