AM3N
ZWO
From $1,848.00
2 stores

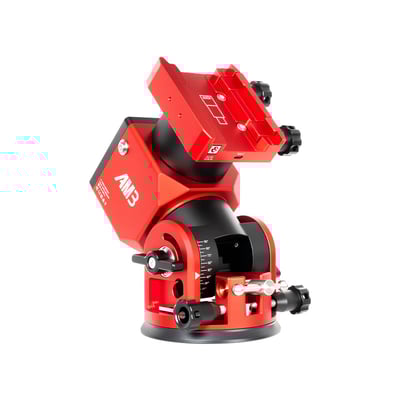

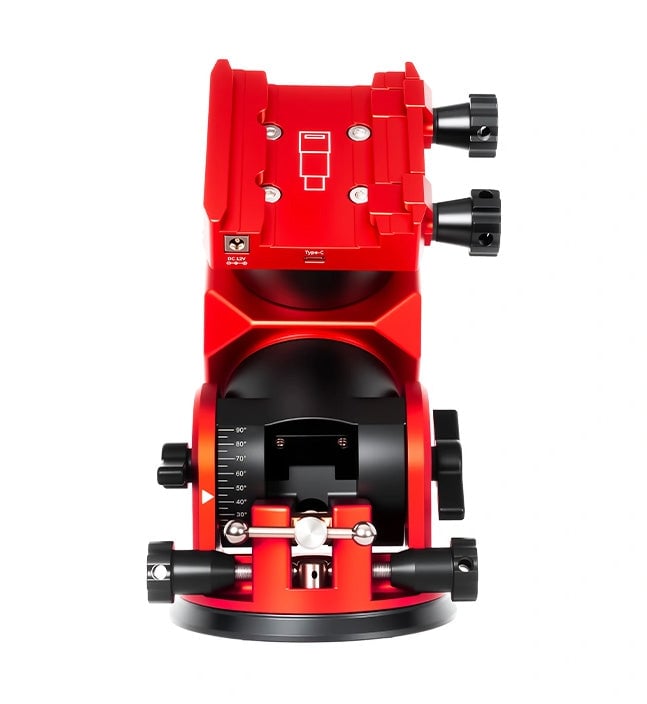

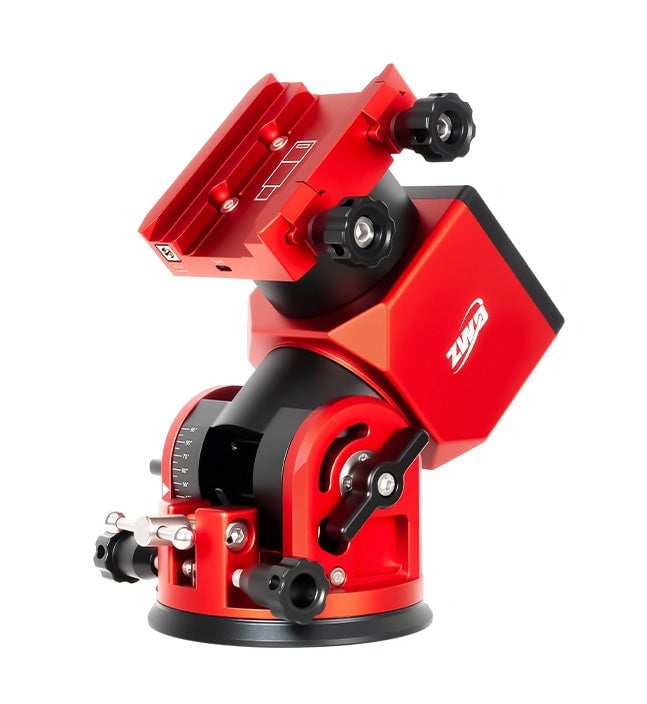

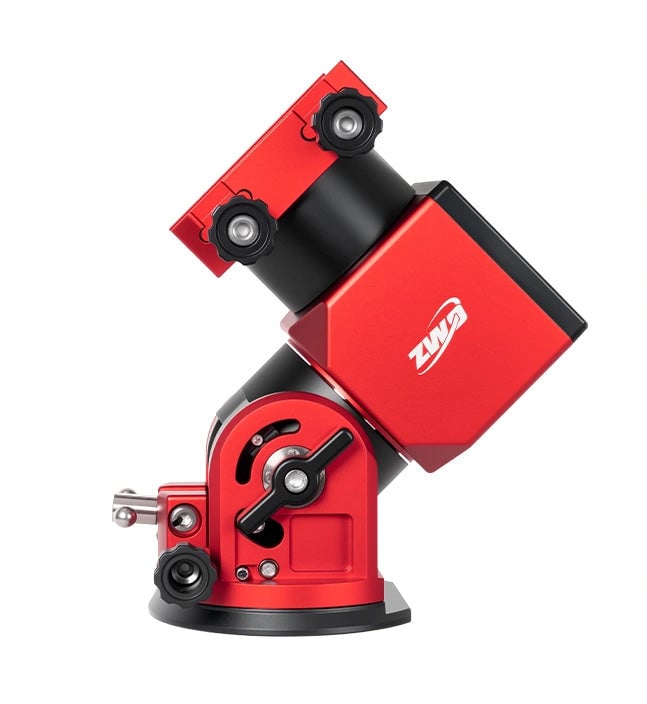

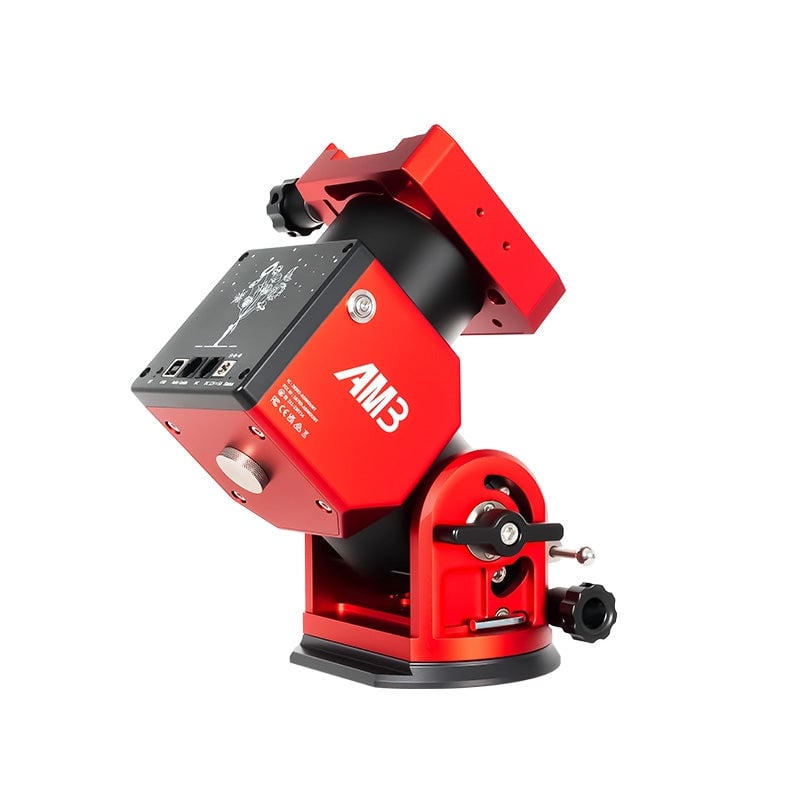

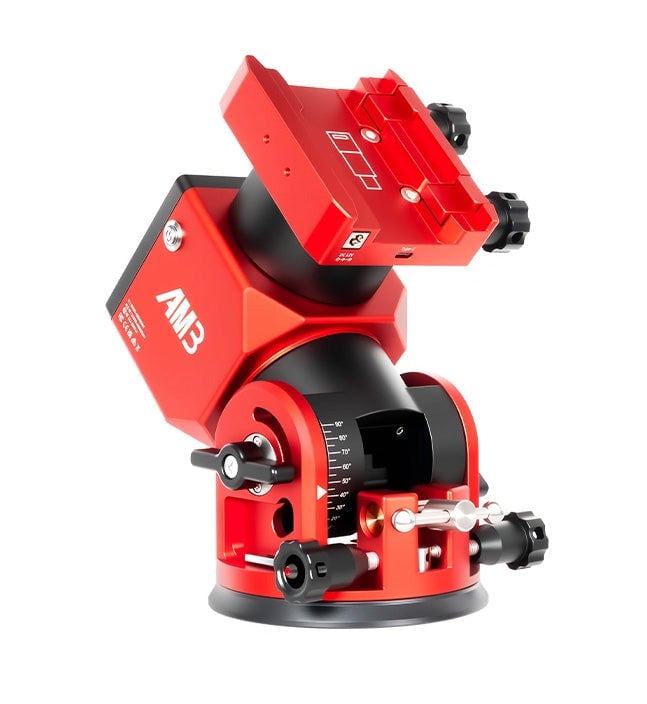

The ZWO AM3N is a lightweight GoTo equatorial mount featuring advanced strain wave gear technology, eliminating the need for counterweights while delivering exceptional tracking precision for deep-sky astrophotography. Weighing just 9 lbs, it supports payloads up to 17.6 lbs without counterweights or 28.7 lbs with an optional counterweight, making it ideal for portable imaging rigs. The mount features dual equatorial and altazimuth modes, a 300:1 gear reduction ratio, and seamless integration with ZWO's ASIAIR ecosystem via WiFi and Bluetooth control through smartphone apps. With integrated USB-C and 12V power ports, improved cable management, and reliable periodic error performance within ±15 arcseconds, the AM3N balances portability with professional-grade tracking accuracy for astrophotographers on the go.
Specifications
| Payload Capacity With Counterweight | 13 kg |
| Mount type | Equatorial with GoTo |
| Payload Capacity Without Counterweight | 8 kg |
| Gear System | Strain Wave (Harmonic Drive) |
| Operating Temperature Range | -20 °C |
| Latitude Adjustment Range | 0° |
| Control Methods | Hand Controller, WiFi, Bluetooth |
| Dovetail Type | Vixen-style Compatible (Dual V and D-Style) |
| Weight | 4.1 lb |
| Gear Reduction Ratio | 300 |
| Mount Modes | Equatorial and Altazimuth |
| Power Input | 12 V |
| Integrated Ports | USB-C and 12V DC power output |
| Counterweight Support | Optional M12 threaded shaft (max 25 cm length) |
| Included Accessories | Hand controller, Magnetic hex wrench |
