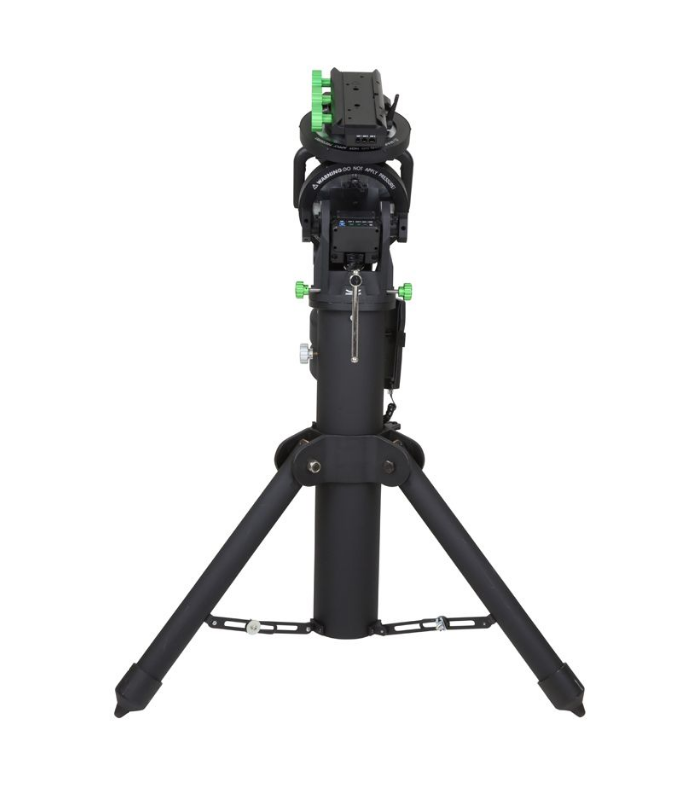

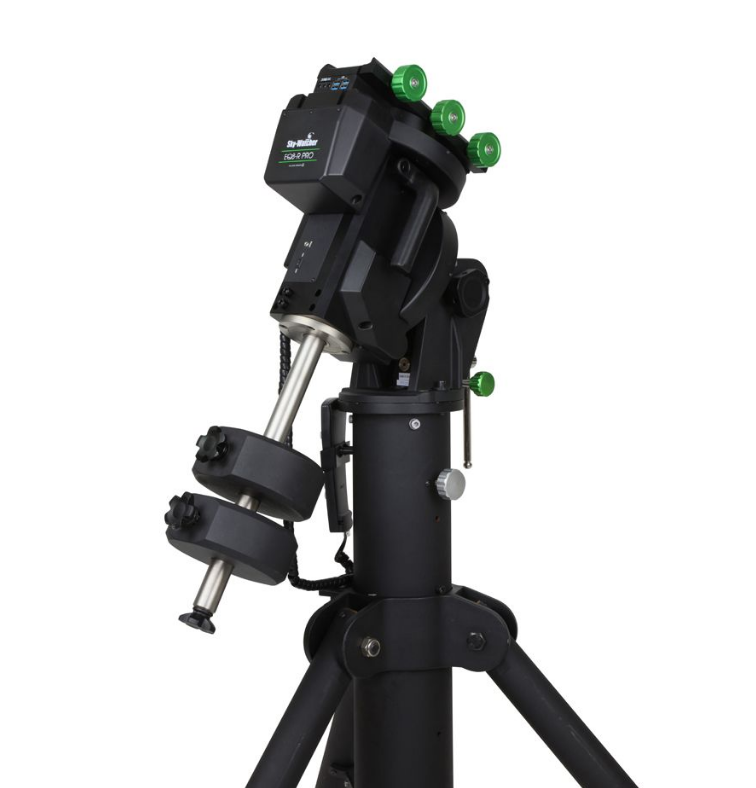

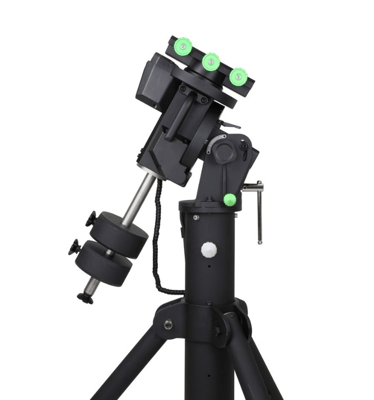

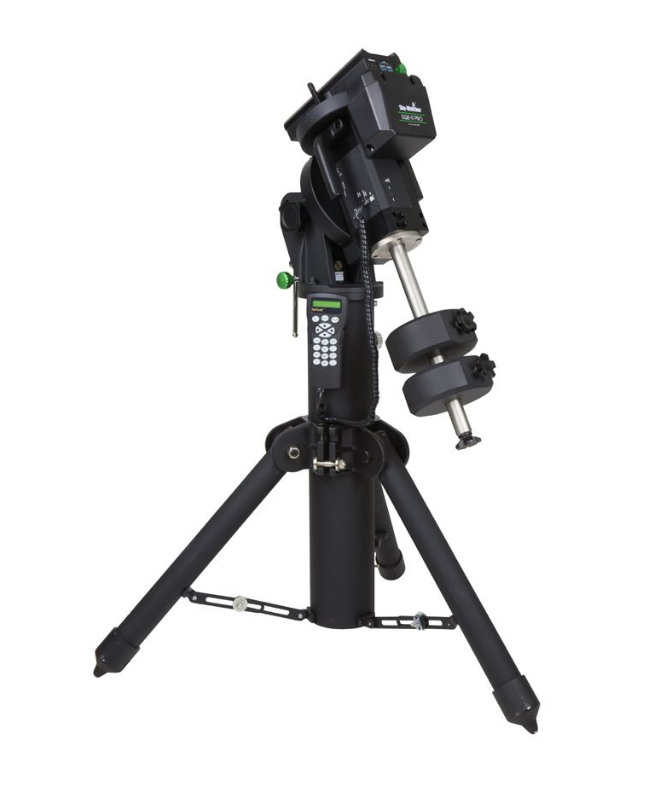

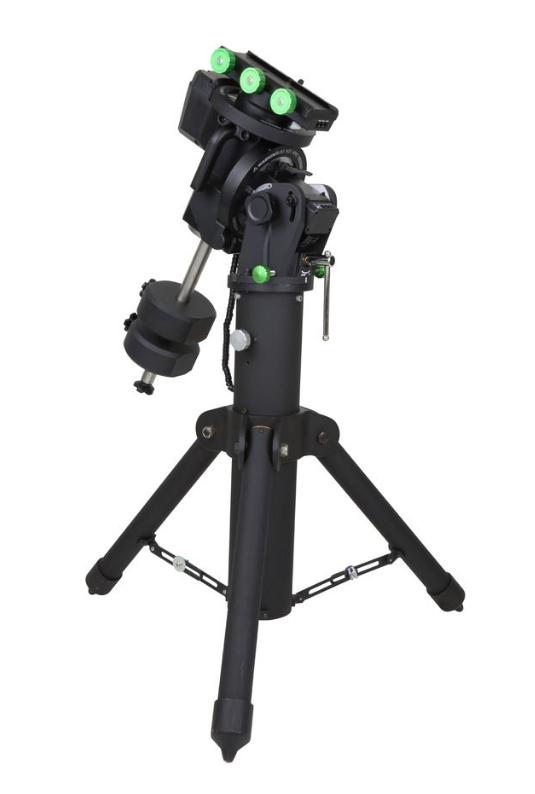

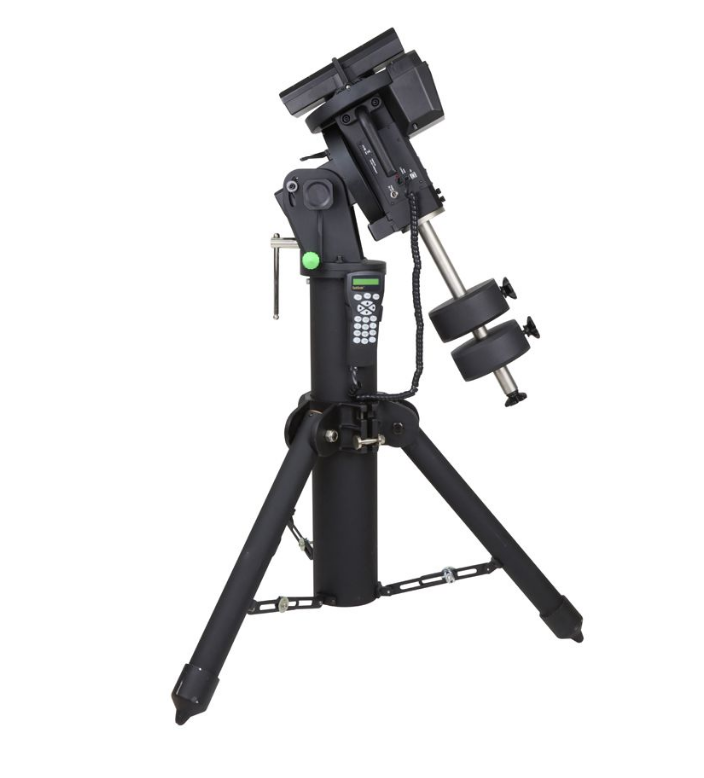

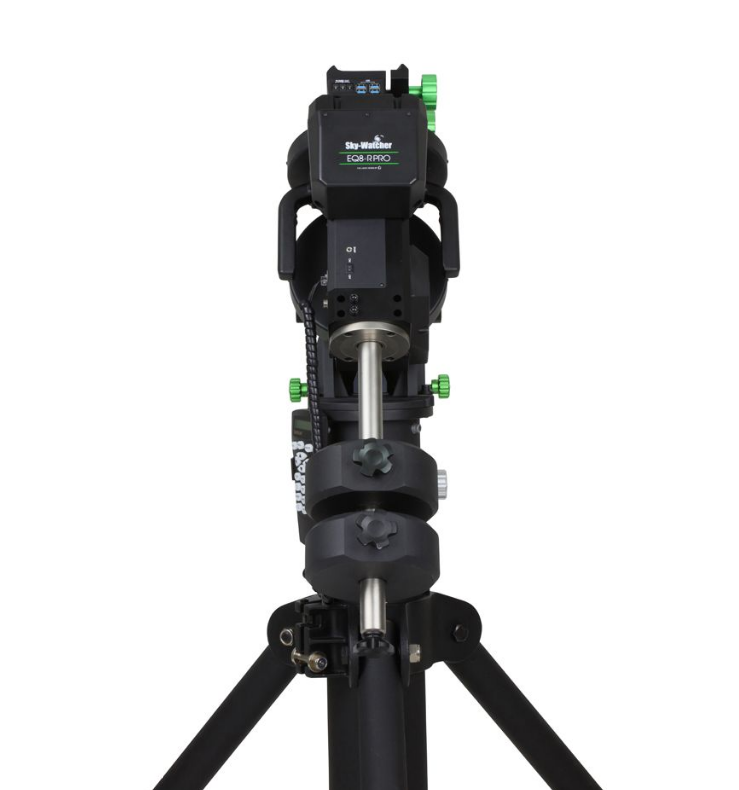

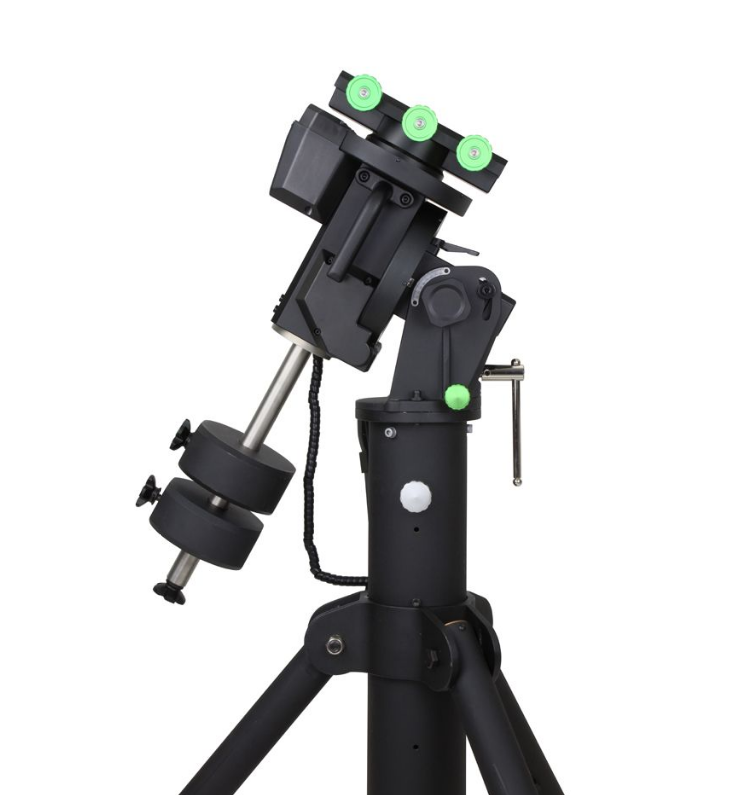

EQ8-R Pro Computerized German Equatorial Mount Head with Counterweights
Sky-Watcher
$5,895.00
1 stores
The Sky-Watcher EQ8-R Pro is an observatory-class GoTo mount designed for large payloads and long-exposure astrophotography. With an impressive 110-pound (50 kg) payload capacity supported by a robust right ascension axis driven by a dual belt system that eliminates backlash and minimizes periodic error, this mount accommodates the largest telescopes and heavy imaging rigs. The EQ8-R Pro is powered by Sky-Watcher's SynScan GoTo system with a database of over 42,000 objects and supports multi-star alignment, PEC training, and polar alignment assistance. An integrated cable management system with built-in power, USB, and serial data ports that rotate with the RA axis keeps cables tidy and reduces wear and tear.
Specifications
| Drive System | Dual belt drives on both axes |
| EQMOD Compatible | ✓ |
| Object Database | 42900 |
| Serial Ports | 3 |
| PC Direct Control | ✓ |
| Mount Head Weight | 25.6 kg |
| Maximum Slew Speed | 1000° |
| GoTo System | SynScan V5 |
| Power Ports | 3 |
| Bearing Type | Precision roller bearings |
| Minimum Slew Speed | 1 |
| Payload Capacity | 50 lb |
| Counterweight Weight | 22 lb |
| Alignment Procedures | One, two, and three-star |
| Homing Sensors | 2 |
| Counterweight Quantity | 2 |
| User-Defined Objects | 25 |
| SNAP Port | ✓ |
| Motor Type | 0.9-degree hybrid stepper motor |
| Gear Diameter | 8 in |
| USB Ports | 4 |
| Dovetail Saddle Type | D-style |
| Polar Alignment Assistance | Built-in |
