NYX-101 Harmonic Gear Mount
Pegasus Astro
From $2,960.00
4 stores

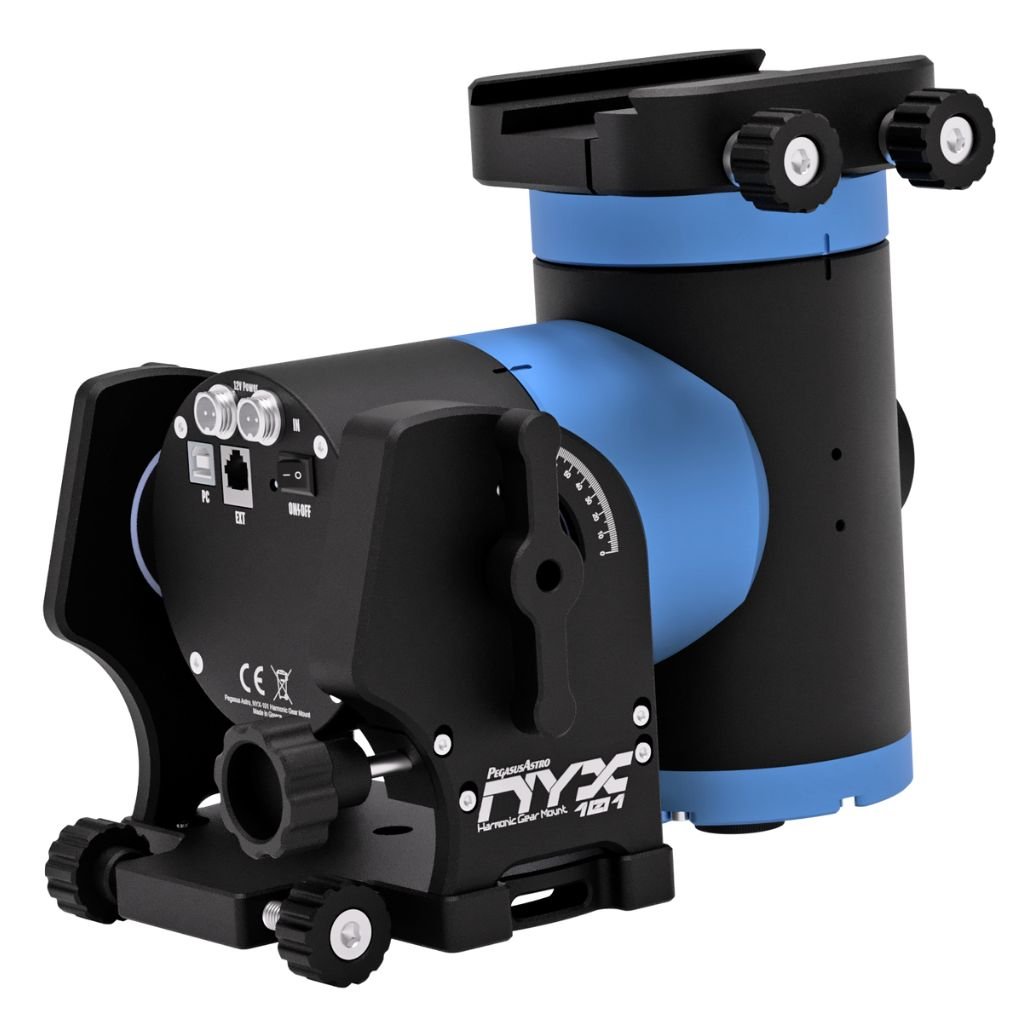

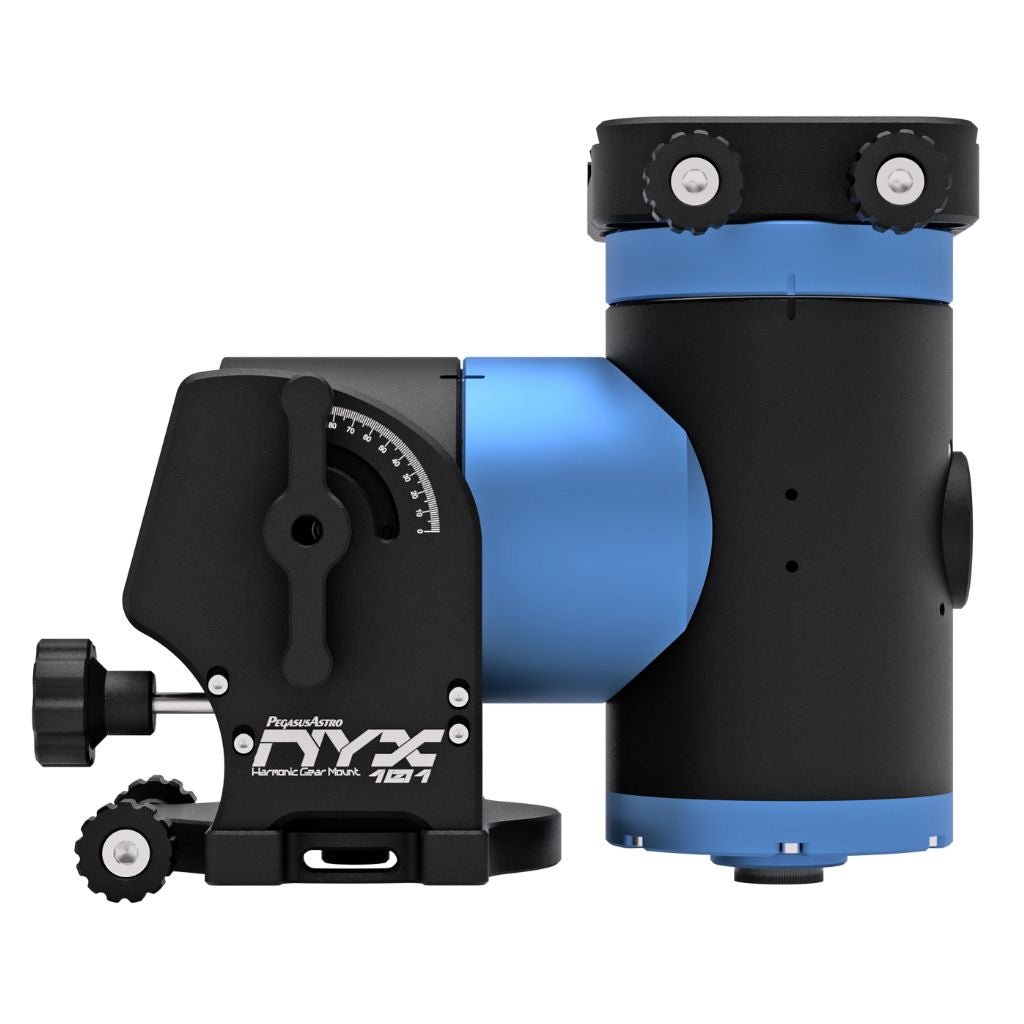

The Pegasus Astro NYX-101 is a high-performance equatorial/altazimuth GoTo mount featuring strain wave harmonic gears on both axes for backlash-free operation and exceptional tracking accuracy. Weighing only 6.4 kg, it can support payloads up to 20 kg without counterweights (66 pounds with counterweights), making it ideal for astrophotographers seeking a portable, high-payload mount. The mount integrates modern features including WiFi and USB connectivity, ASCOM Alpaca support, built-in atmospheric refraction corrections, and 0.10 arcsecond RA resolution for precision guided imaging of deep-sky objects with large telescopes and full imaging trains.
OPT
NYX-101 Harmonic Gear Mount
Worldwide shipping
$2,960.00
Astronomy Plus
NYX-101 Harmonic Gear Mount (NYX-101)
Worldwide shipping
CA$4,690.00
~$3,427.49
First Light Optics
Pegasus NYX-101 Harmonic Gear Mount
Worldwide shipping
£2,995.00
~$4,037.11
Astroshop.eu
NYX-101 Harmonic Geared Mount
Worldwide shipping
€3,589.00
~$4,231.06
Specifications
| DEC Axis Reduction Ratio | 300:1 |
| Material | CNC Machined Aluminum Alloy 6061 |
| Features | Electronic Brake (RA Axis), Safety Limit Stops, Atmospheric Refraction Corrections, Barometric/Temperature Sensor, Polemaster Adapter Included, Reverse Polarity Protection, Dual Mode Operation |
| Maximum Payload With Counterweights | 30 kg |

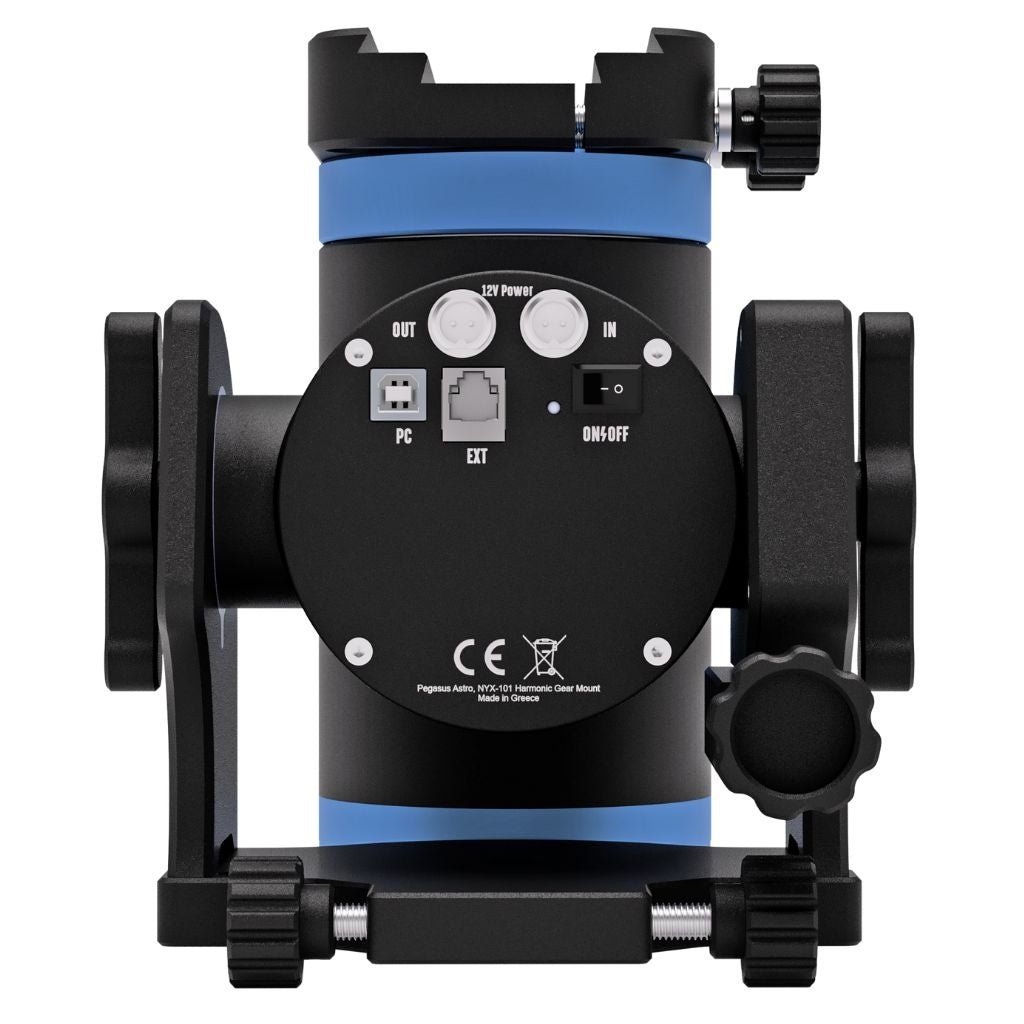

| Connectivity | WiFi, USB 2.0, ST-4 Autoguiding Port |
| Current During Tracking | 0.6 A |
| Power Supply Voltage | 12 V |
| Saddle Type | Universal (Vixen and Losmandy 3-inch Compatible) |
| Maximum Payload Without Counterweights | 20 kg |
| Mount type | German Equatorial / Altazimuth (Dual Mode) |
| RA Axis Resolution | 0.10″ |
| Software Compatibility | ASCOM 7, ASCOM Alpaca, INDI, LX200 Protocol, Sky Safari |
| Mount Weight | 6.4 lb |
| RA Axis Reduction Ratio | 500:1 |
| Current During Slewing | 2.5 A |
| Counterweight Shaft | M12 (Optional) |
