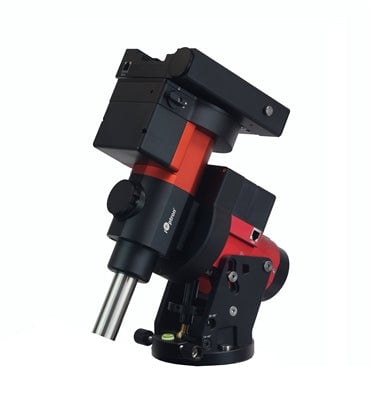

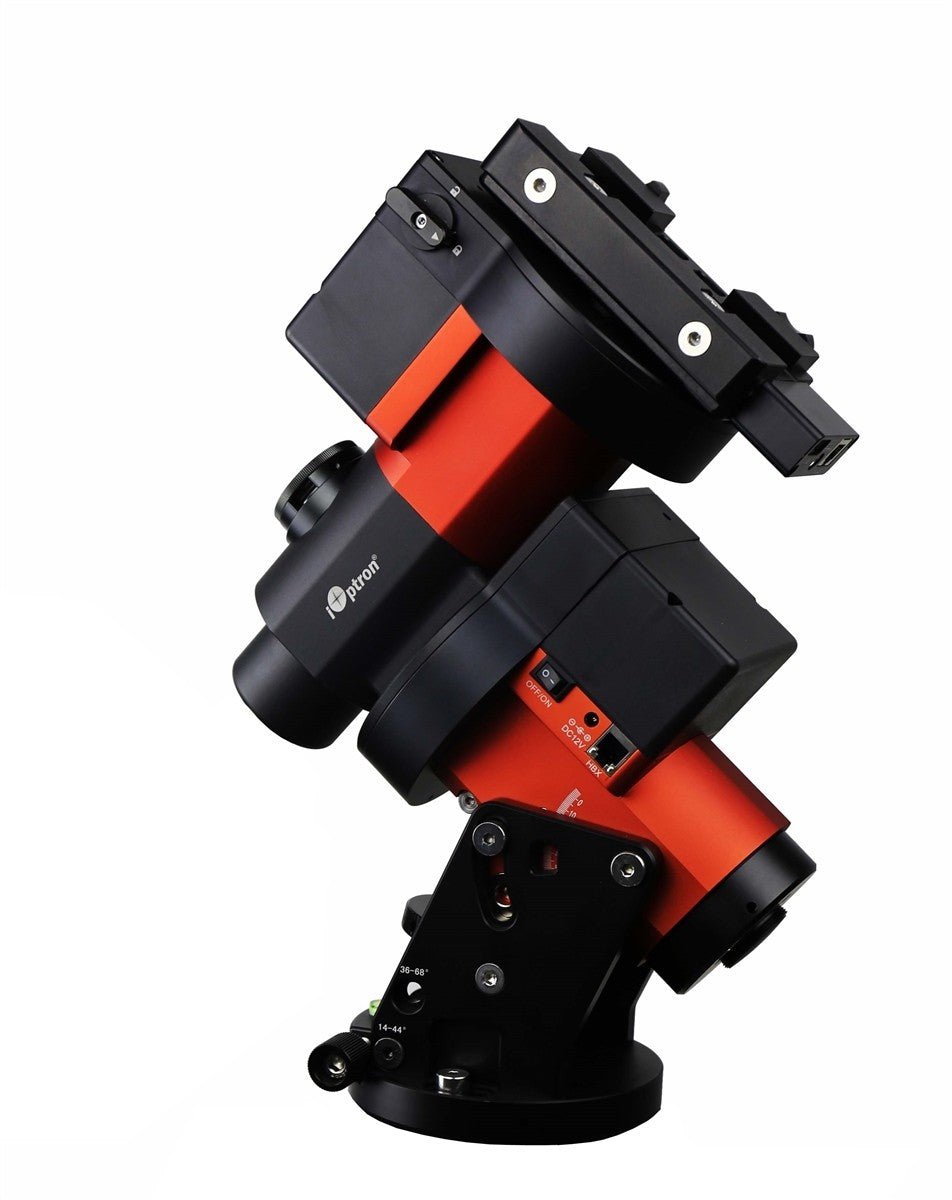

GEM45EC
iOptron
From $2,949.00
2 stores
The iOptron GEM45EC is a compact German equatorial mount engineered for astrophotographers and visual observers seeking observatory-grade tracking in a portable package. Equipped with high-resolution encoders and Real-Time Periodic Error Correction (RPEC), it delivers exceptional sub-arcsecond tracking accuracy ideal for long-exposure imaging without the need for autoguider training. The mount's integrated iPolar electronic polar scope enables precise polar alignment even when the pole star is obscured, while the Go2Nova 8407+ controller provides access to 212,000+ celestial objects with automated GoTo and tracking capabilities. Built on a lightweight CNC-machined aluminum frame weighing just 17.5 pounds, it maintains an impressive payload-to-weight ratio while supporting up to 45 pounds of equipment, making it an excellent choice for both mobile deep-sky imaging rigs and semi-permanent observatory installations.
Specifications
| Counterweight | 5 kg |
| Object Database | 212000 |
| Includes Tripod | ✓ |
| Payload Capacity | 20 lb |
| Polar Scope | iPolar Electronic |
| Power Consumption - GoTo | 0.9 A |
| Wi-Fi Capable | ✓ |
| Tripod Material | Stainless Steel |
| Motor Type | Stepper Motor |
| Periodic Error | 0.25″ |
| Tracking Correction | Real-Time Periodic Error Correction (RPEC) |
| Encoder | High-Resolution RA Encoder |
| GPS Module | 32-Channel |
| Latitude Adjustment Range | 14° |
| Maximum Slew Speed | 4.5° |
| Dovetail Saddle | Universal Self-Centering Saddle (USCS) |
| Worm Gear Teeth | 216 |
| Mount Weight | 7.9 lb |
| Dovetail Compatibility | Vixen and Losmandy |
| Slew Speeds | 9 |
| Mount type | German Equatorial |
| Hand Controller | Go2Nova 8407+ |
| Power Input | 12 V |
| Includes Hard Case | ✓ |
| Power Consumption - Tracking | 0.6 A |
| Tripod Diameter | 1.75 in |
| Azimuth Adjustment Range | 6° |
| ST-4 Autoguide Port | ✓ |
| Includes iPolar | ✓ |
