LRGB Filter Set - 1.25" Mounted

Optolong

From $229.00

2 stores

In stock

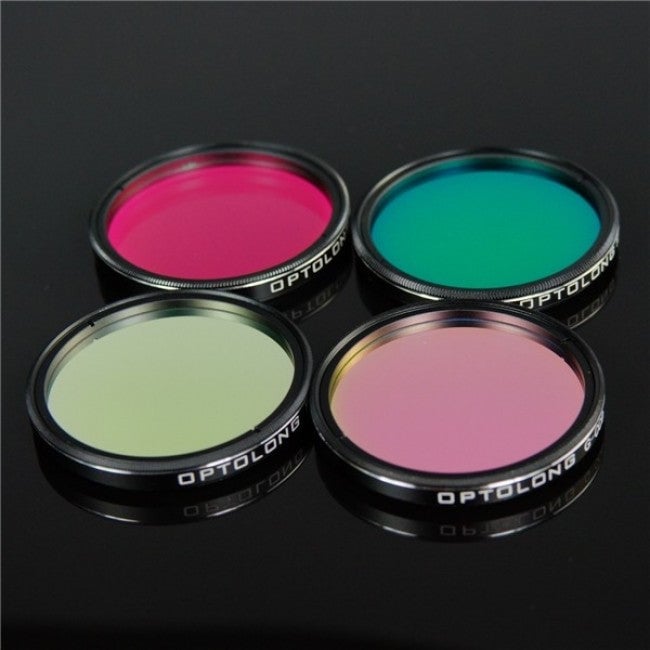

The Optolong LRGB Filter Set is a four-filter mounted set designed specifically for monochrome CCD and CMOS astrophotography, consisting of Luminance, Red, Green, and Blue filters that divide the spectrum into its key components for accurate color imaging. With optimized transmission curves featuring 95% passband transmission and infrared blocking from 700-1100nm, these filters eliminate the need for a separate IR-cut filter and provide maximum contrast in both deep-sky and planetary imaging. The set features a strategically designed gap between green and red filters to block sodium light pollution at 589nm while allowing OIII emission to overlap naturally on blue and green channels, ensuring superior color balance and natural color reproduction in light-polluted skies.

Specifications

Filter Type LRGB (Luminance, Red, Green, Blue)
Filter Size 1.25 in
Number of Filters 4
Filter Thread M28.5 x 0.6
Sodium Line Blocking 589
Filter Cell Material CNC-machined metal (black anodized)
Clear Aperture 26 mm
Stackable false
Filter Cell Diameter 31.3 mm
Passband Transmission 95%
Filter Cell Height 6.8 mm
Infrared Cut-off 700
Coating Technology Multi-layer ion-assisted deposition
Substrate Material Schott B270 Optical Glass
Substrate Thickness 2 mm
Optical Polishing 1/4 wavelength or better
Surface Parallelism 30″
Recommended Application Deep-sky and planetary imaging with monochrome CCD/CMOS cameras
