ZWO Filter Drawer for Canon EOS Lens
Starizona
From $99.00
4 stores

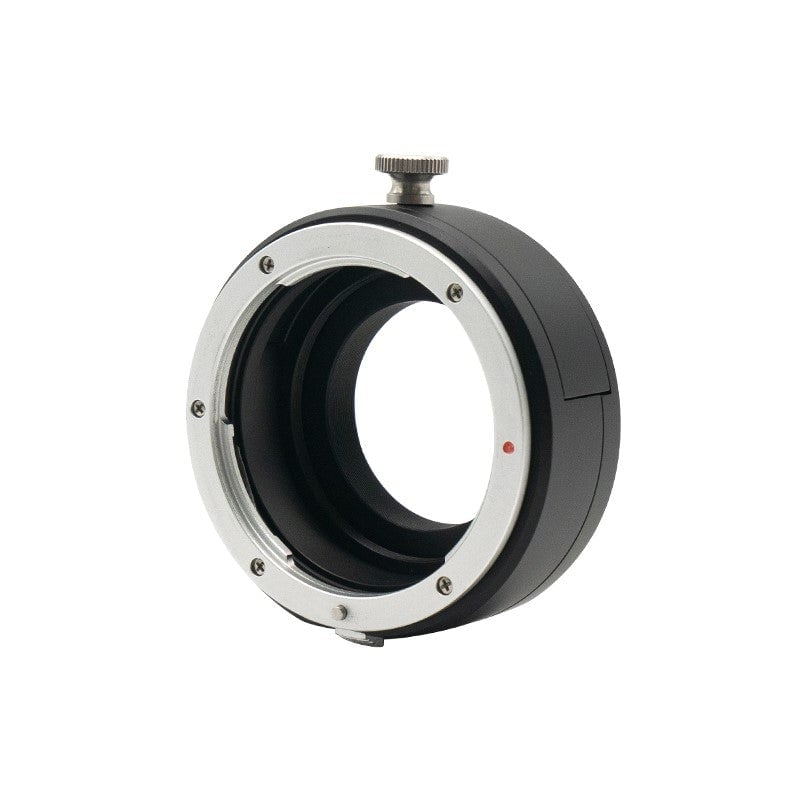

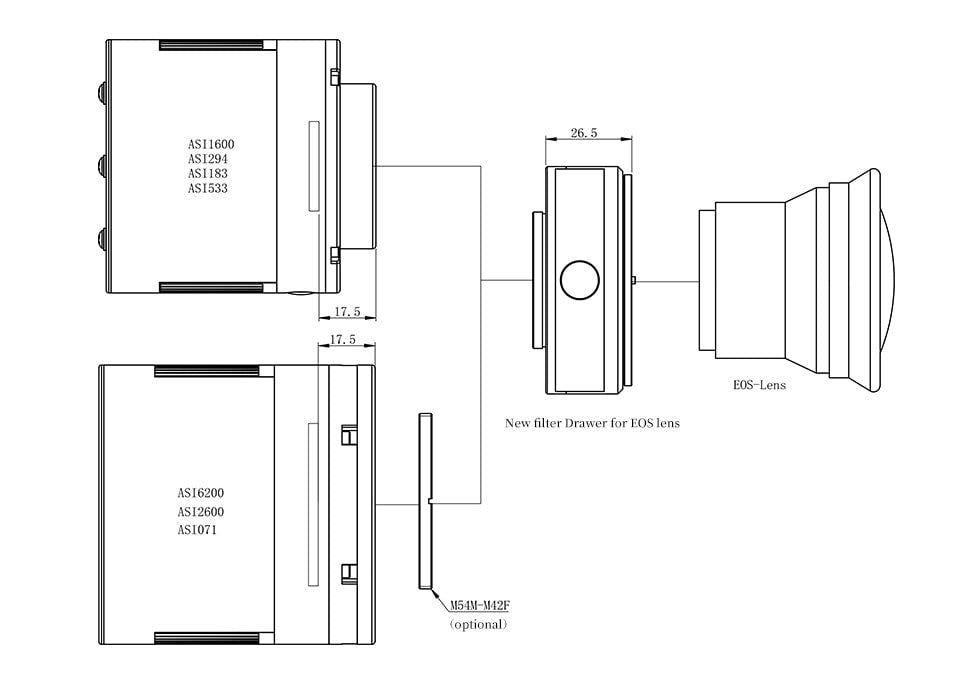

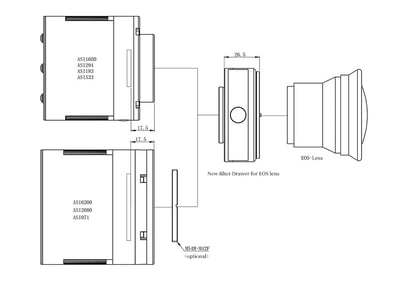

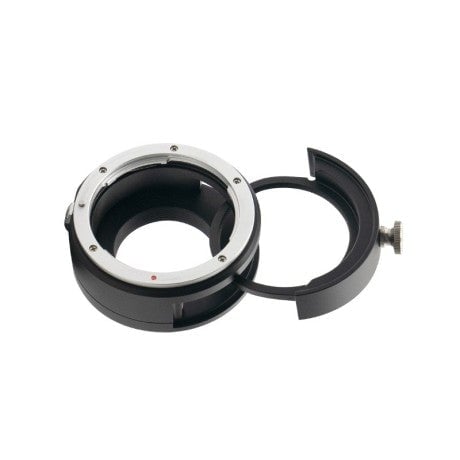

The ZWO Filter Drawer for Canon EOS Lens is a 26.5mm-thick optical adapter designed for astrophotographers using ZWO ASI cooled cameras with Canon EF-mount lenses. It enables convenient use of 2" optical filters during imaging sessions with magnetic filter holders for quick, tool-free swaps. Compatible with APS-C and smaller ASI cameras (17.5mm back focus), it includes an M54M-M42F adapter for full-frame camera compatibility and features a female EOS bayonet mount on the lens side with an M42x0.75 thread on the camera side.
Starizona
Filter Drawer for Canon EOS Lens
Worldwide shipping
$99.00
High Point Scientific
ZWO Filter Drawer for EOS Lens
Ships to US only
$99.00
Astronomy Plus
2" Filter Drawer for EOS Lens (FD-EOS)
Worldwide shipping
CA$139.00
~$101.58
First Light Optics
ZWO Filter Drawer for Canon EOS Lenses
Worldwide shipping
£111.00
~$149.62
Specifications

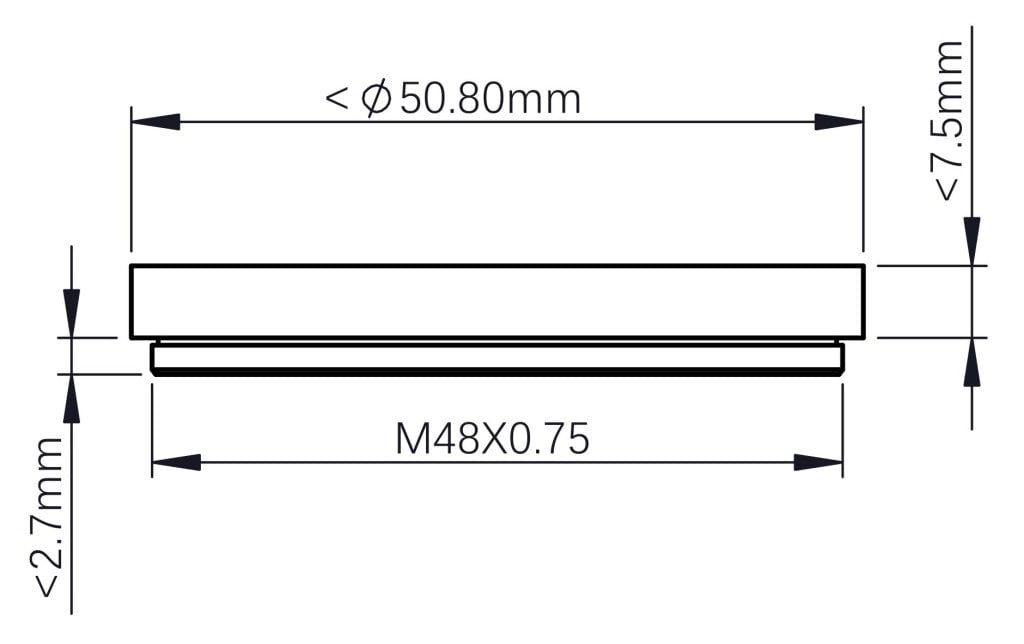

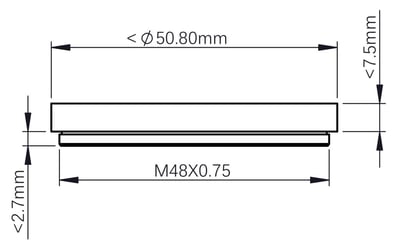

| Compatible Filter Cell Thickness | 7.5 mm |
| Filter Size | 2 in |
| Back Focus Length | 17.5 mm |
| Camera Interface Thread | M42x0.75 |
| Lens Mount | Canon EOS Bayonet |
| External Diameter | 70 mm |
| Thickness | 26.5 in |
| Includes M54M-M42F Adapter | ✓ |
