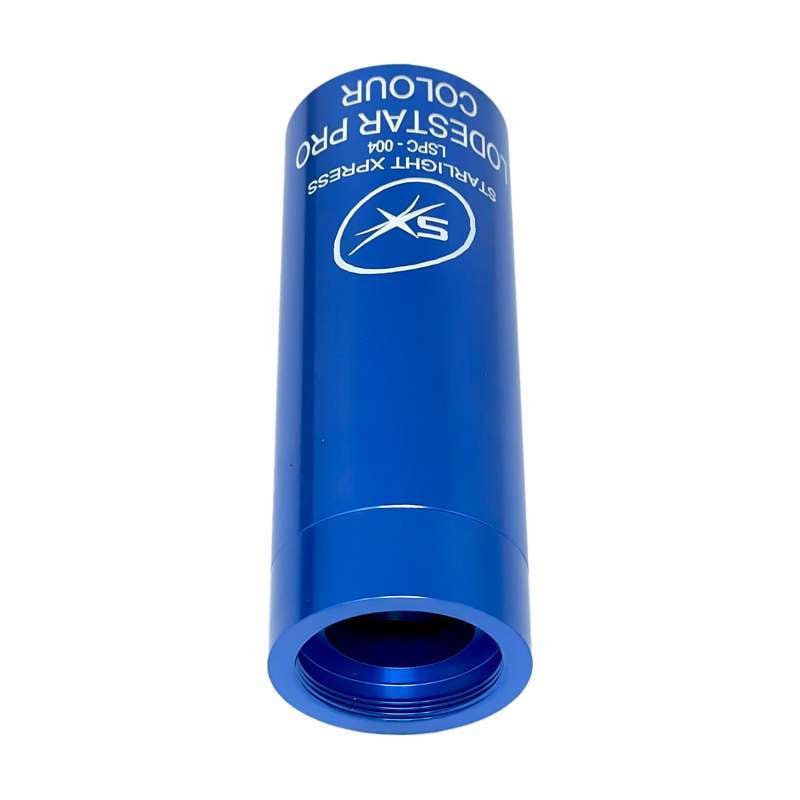

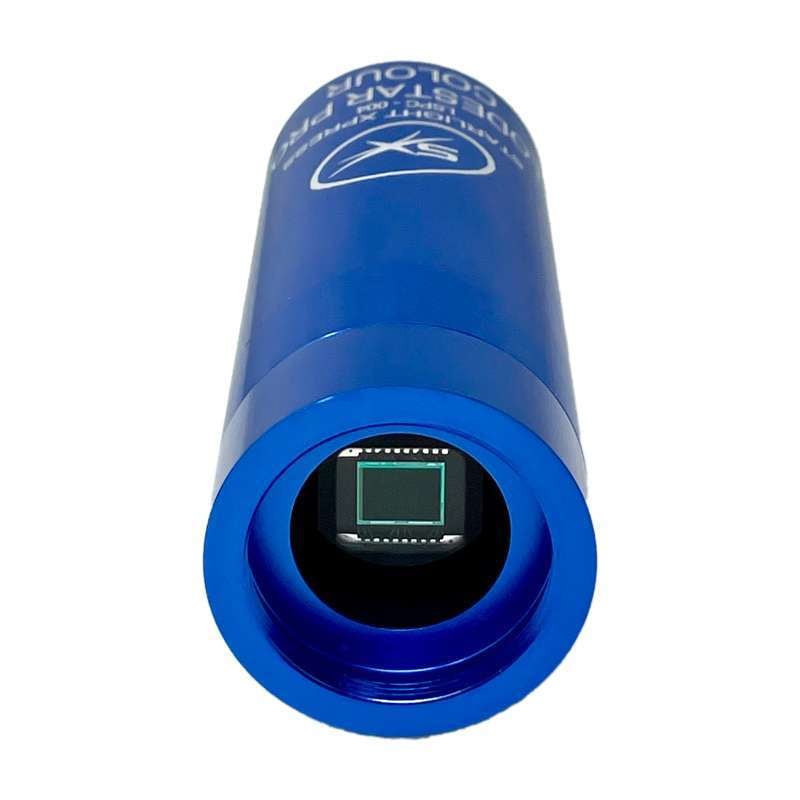

Lodestar PRO Autoguider Color
Starlight Xpress
From $542.50
2 stores

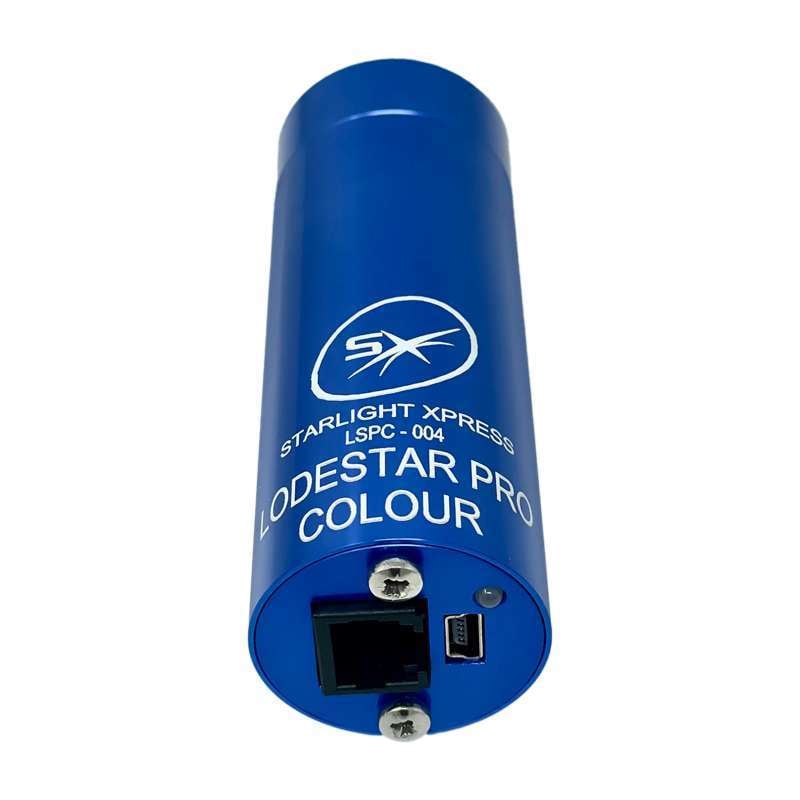

The Lodestar PRO Color features a Sony ICX829AK ExView2 color CCD that elevates imaging and autoguiding capabilities to unprecedented heights. This is an enhanced iteration of the widely acclaimed Lodestar X2 autoguider, featuring accelerated download times and advanced electronics resulting in reduced read noise. Although the chip is not cooled, it has a very low dark signal and very little readout noise, so it can be used to guide on faint stars that are beyond the reach of webcams and CMOS chip based guide cameras. The Lodestar PRO C is a very compact imager/guider which is powered and operated via a single USB2.0 computer connection and also provides an opto-isolated output connection for direct control of most mounts, via their 'Autoguider' sockets.
Specifications
| CCD Type | Sony ICX829AK ExView2 Interline CCD |
| Sensor Format | Half-inch |
| Resolution | 752″ |
| Pixel Size | 8.6 μm |
| Sensor Size | 6.47 mm |
| Read Noise | 5.5 |
| Full Well Capacity | >30000 |
| Quantum Efficiency | 77% |
| Data Format | 16-bit |
| Download Speed | 10 s |
| Color Filter Array | YMCG Secondary Color Filters |
| Exposure Time | 0.3 s |
| Barrel Diameter | 31.75 in |
| Barrel Length | 85 mm |
| Barrel Thread | 25.4 x 0.75 |
| Weight | 100 lb |
| USB Connection | USB 2.0 Mini-B |
| Autoguider Output | RJ12 ST4-compatible |
| Output Configuration | Opto-isolated 4-lines (N,S,E,W) pull-down with common return |
