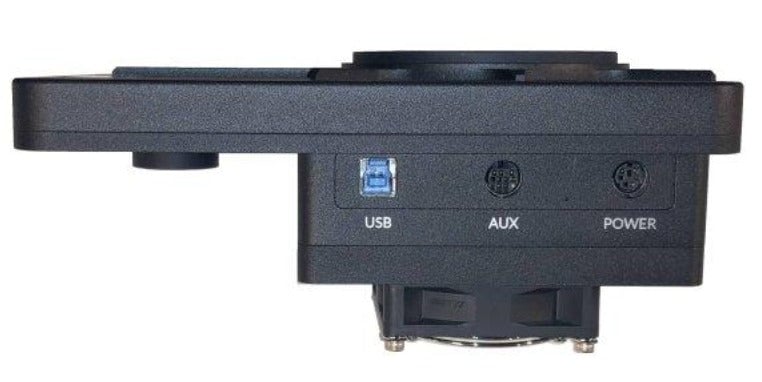

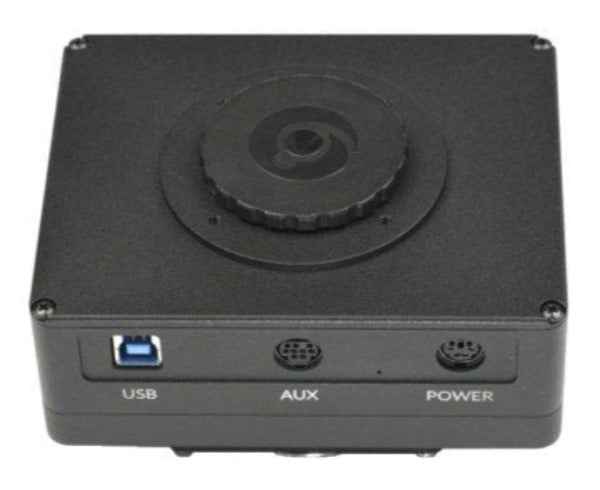

STC 428-P Photometric CMOS Camera Imaging System
SBIG
From $4,499.00
2 stores
The SBIG STC-428-P is a high-performance scientific CMOS photometric imaging system designed for astronomical photometry and astrophotography. It features a 7.1-megapixel Sony IMX428 sensor with 78% peak quantum efficiency and significantly lower read noise (2.5 e- typical) compared to traditional CCD cameras, along with 20x faster readout speeds. The integrated 8-position filter wheel accommodates standard 36mm unmounted filters or common 1.25" UBVRI filters via included adapters, and includes innovative StackPro in-camera stacking capability that automatically combines up to 16 sub-exposures for enhanced dynamic range without excessive data storage requirements. SmartCooling active temperature regulation maintains sensor stability to within 0.1°C for reliable photometric measurements.
Specifications
| Sensor Size | 14.4 mm |
| Read Noise Medium Gain | 2.5 |
| Cooling Delta | 30 °C |
| Dark Current | 0.1 |
| Power Supply | 12 V |
| Resolution | 7.1″ |
| Sensor diagonal | 17.6 |

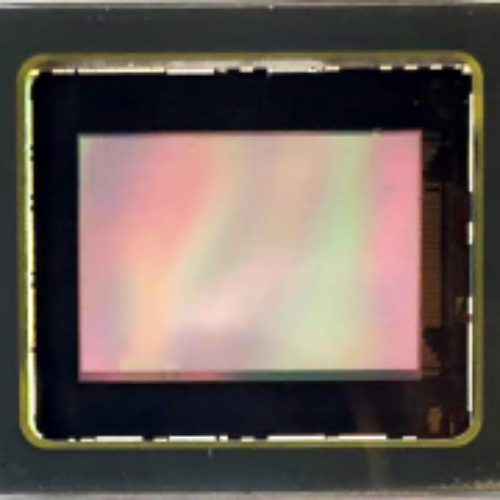

| Sensor type | Sony IMX428 CMOS |
| Peak Quantum Efficiency | 78% |
| Pixel Array | 3208 x 2200 |
| Full Frame Download | 90 ms |
| StackPro Capable | ✓ |
| Read Noise Low Gain | 5 |
| Binning Modes | 1x1, 2x2 |
| Temperature Regulation | 0.1 °C |
| Shutter Type | Electronic global shutter with dark frame filter slot |
| Color Filter Support | UBVRI |
| A/D Converter | 12-bit |
| Exposure Range | 0.001 - 3600 |
| Back Focus Distance | 1.5 mm |
| Filter Size | 36 in |
| Maximum Sub-exposures for Stacking | 16 |
| Read Noise High Gain | 1.9 |
| Dynamic Range | 80 |
| Filter Wheel | FW8-STC 8-position |
| Pixel Size | 4.5 μm |
| Computer Interface | USB 3.0 |
