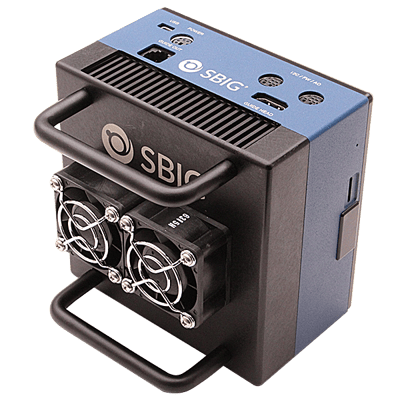

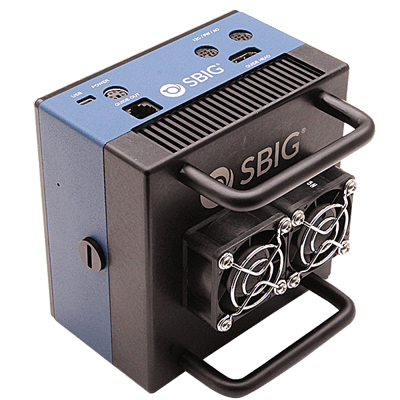

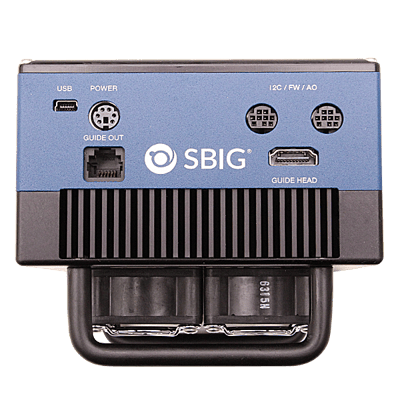

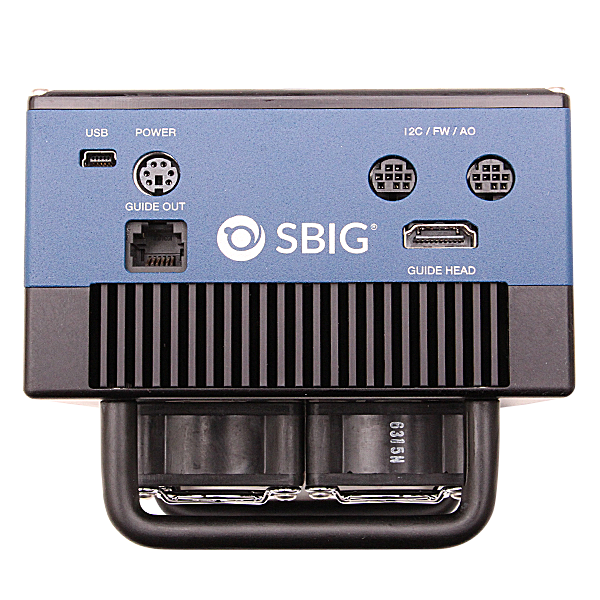

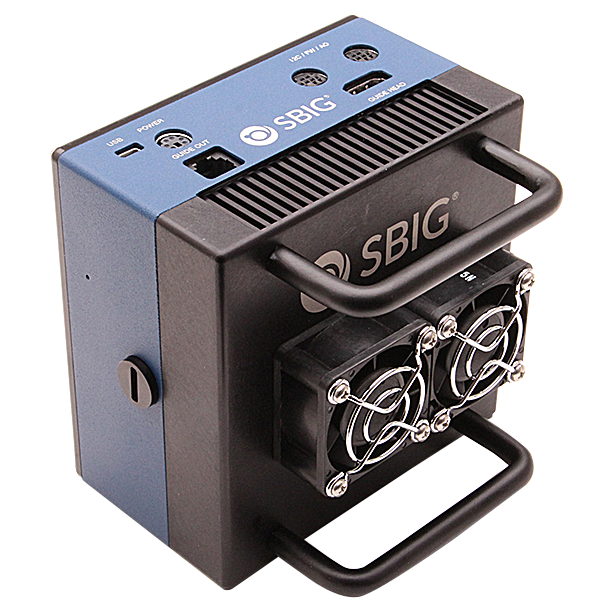

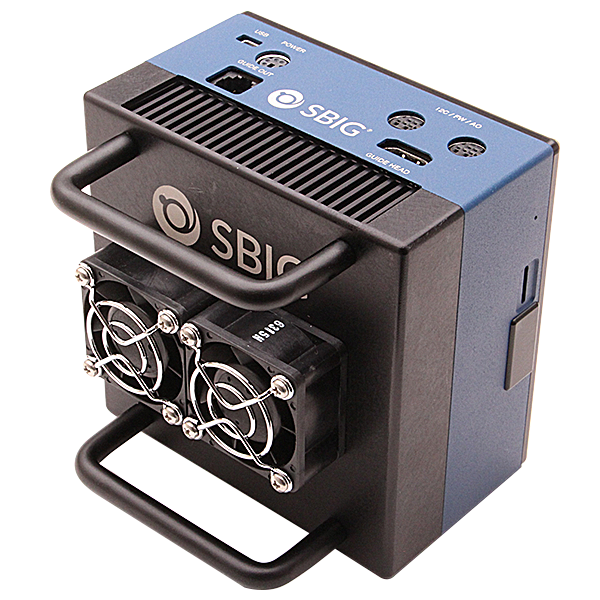

Aluma 694 Camera Pro Package with WiFi/USB Interface
SBIG
From $6,590.00
2 stores
In stock
The SBIG Aluma 694 features Sony's ICX-694ALG monochrome sensor which boasts exceptional high resolution and high speed performance with remarkably low read noise and dark current. This Pro Package includes the Aluma 694 camera, FW8S-Aluma filter wheel, StarChaser SC-2 guide camera, 36mm LRGB filter set, and 36mm Narrowband 3 filter set. Paired with SBIG's two stage TE cooling system, post processing times are greatly reduced. A compact body and lightweight make the Aluma cameras easy to integrate into your imaging system and are designed for easy remote operation.
Specifications
| Shutter Type | Mechanical, Even-illumination |
| Resolution | 6″ |
| Read Noise | 4.5 |
| Dimensions (with handles) | 4.25 in |
| Guide Camera | StarChaser SC-2 |
| Sensor Size | 14.6 mm |
| Dark Current at 0°C | 0.025 |
| Interface | USB 2.0 and WiFi 802.11 b/g/n |
| Filter Wheel | FW8S-Aluma 8-position |
| Cooling System | 2-Stage Thermoelectric |
| Weight | 2.2 lb |
| Filter Size | 36 in |
| Sensor type | Sony ICX-694ALG Monochrome CCD |
| Peak Quantum Efficiency | 75% |
| Pixel Array | 2750 x 2200 |
| Full Well Capacity | 18000 |
| A/D Converter | 16 |
| Included Software | MaxIm DL |
| Cooling Delta | -50 °C |
| Pixel Size | 4.54 μm |
| Operating Systems Supported | Windows, Macintosh, Linux, iOS, Android |
| Minimum Exposure Time | 0.001 s |
