Aluma 814
SBIG
From $4,699.00
2 stores
In stock

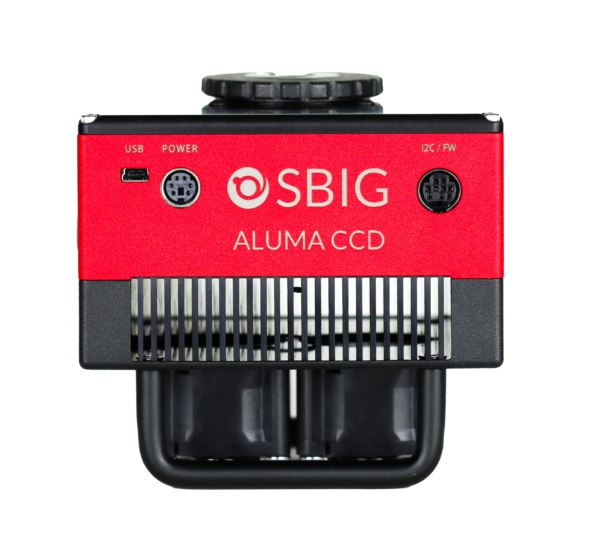

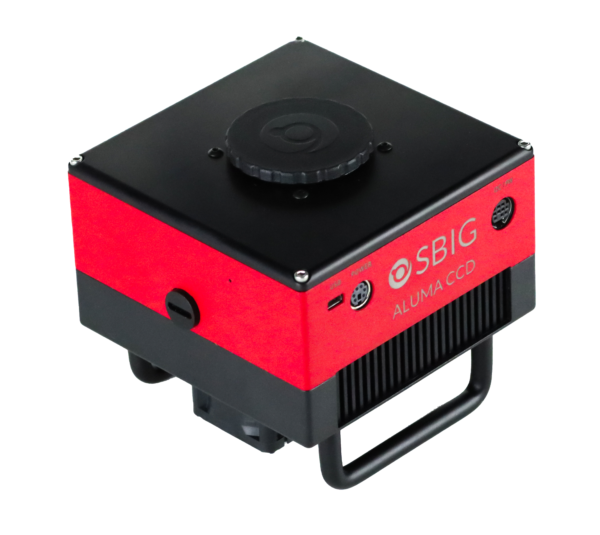

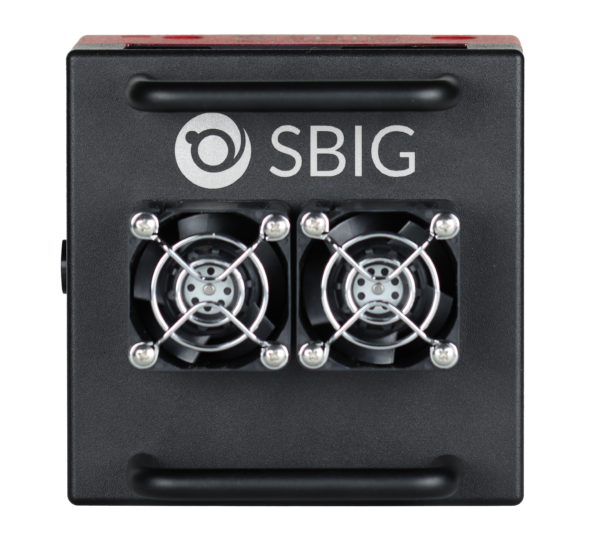

The SBIG Aluma 814 is a high sensitivity research grade Interline CCD camera using the Sony ICX-814ALG imaging sensor designed for deep sky astrophotography and scientific imaging. The camera uses a 9 megapixel SONY ICX-814ALG sensor with 3388 x 2712 pixels at 3.69 microns square, offering peak quantum efficiency over 75% with very broad spectral sensitivity and extraordinary blue sensitivity. The camera includes two-stage cooling, USB 2.0 and WiFi 802.11 b/g/n interfaces, ultra-reliable even-illumination shutter, and fast low-noise readout, making it exceptionally well-suited for extended exposures and detailed nebula and galaxy imaging.
Specifications
| Sensor pixel size | 3.69 |
| Sensor | 814 |
| Sensor type | CCD |
| Megapixels | 9.2 MP |
| Minimum Exposure Time | 0.001 s |
| Sensor resolution | 3388 |
| ADC Resolution | 16 |
| Sensor diagonal | 15.972 |
| Quantum Efficiency | 75% |
| Maximum Exposure Time | 49 s |
| Dark Current at 0 Celsius | 0.025 |
| Computer Interface | USB 2.0 and WiFi 802.11 b/g/n |
| Cooling System | Two-stage thermoelectric |
| Antiblooming | ✓ |
| Cooling Delta | -50 °C |
| Weight | 1 lb |
| Operating Systems Supported | Windows, Mac, Linux, iOS, Android |
| Dimensions | 114 x 114 x 102 |
| Shutter Type | Electronic and mechanical |
