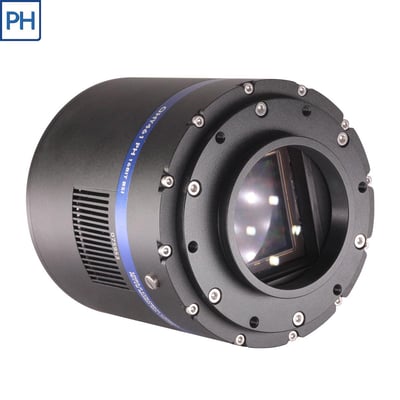

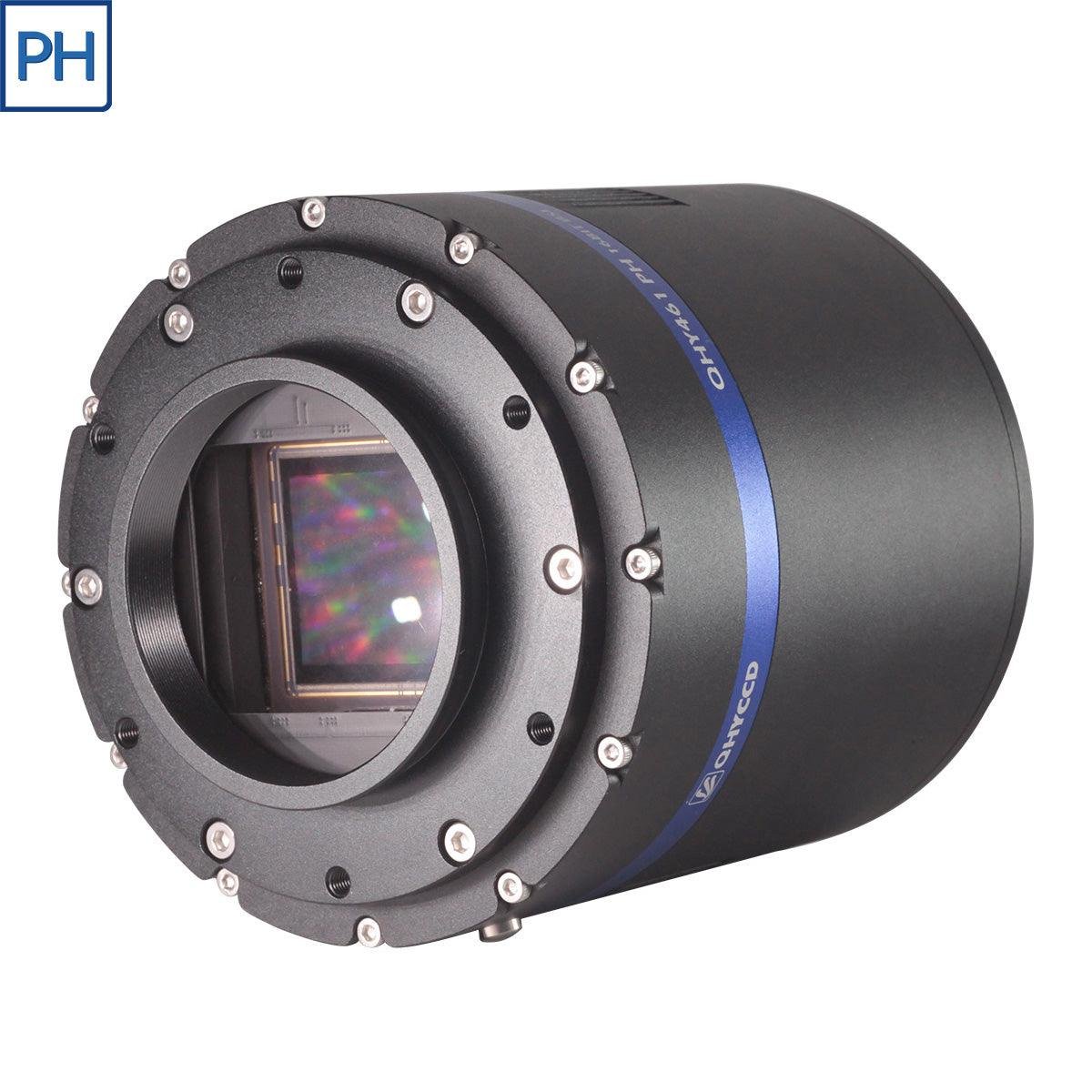

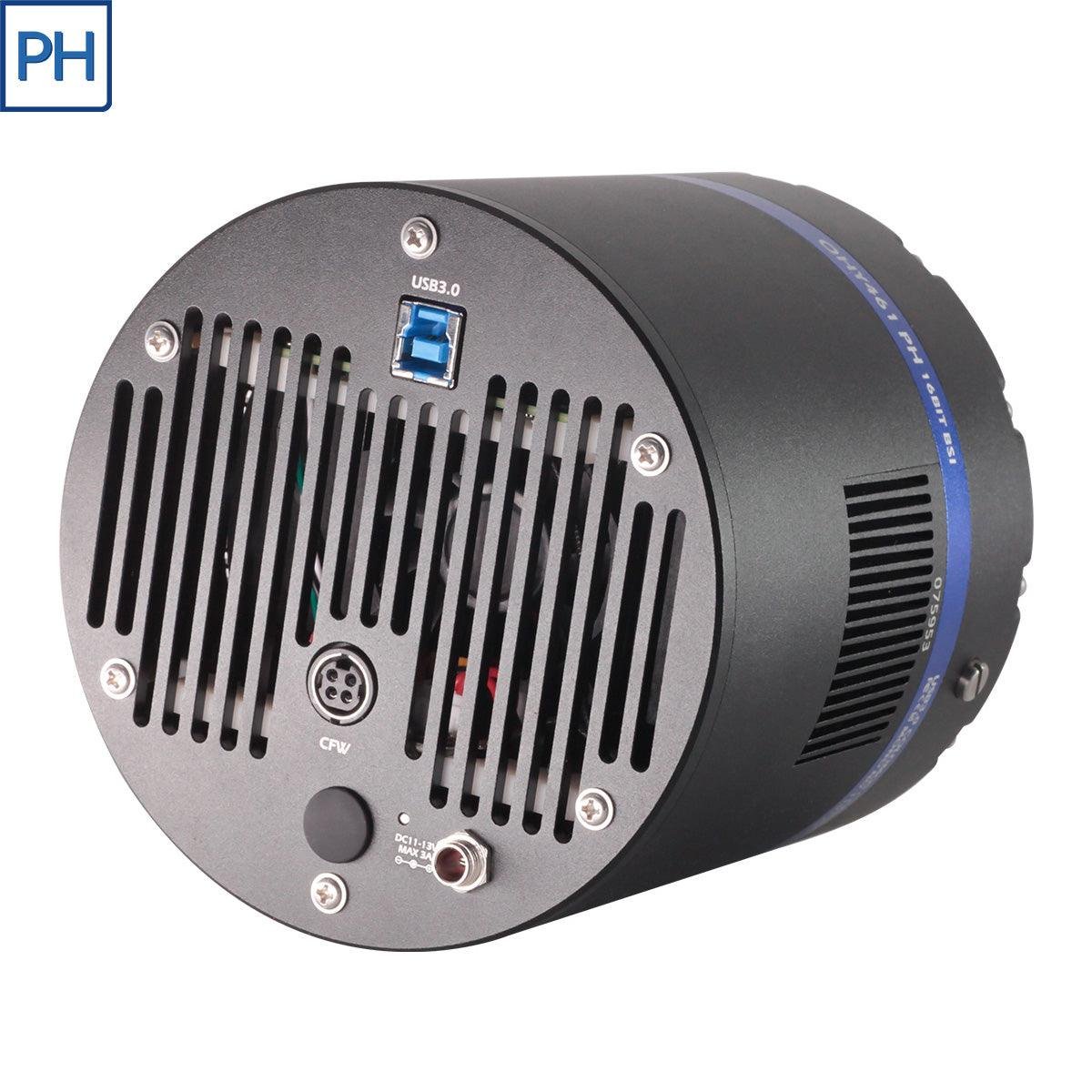

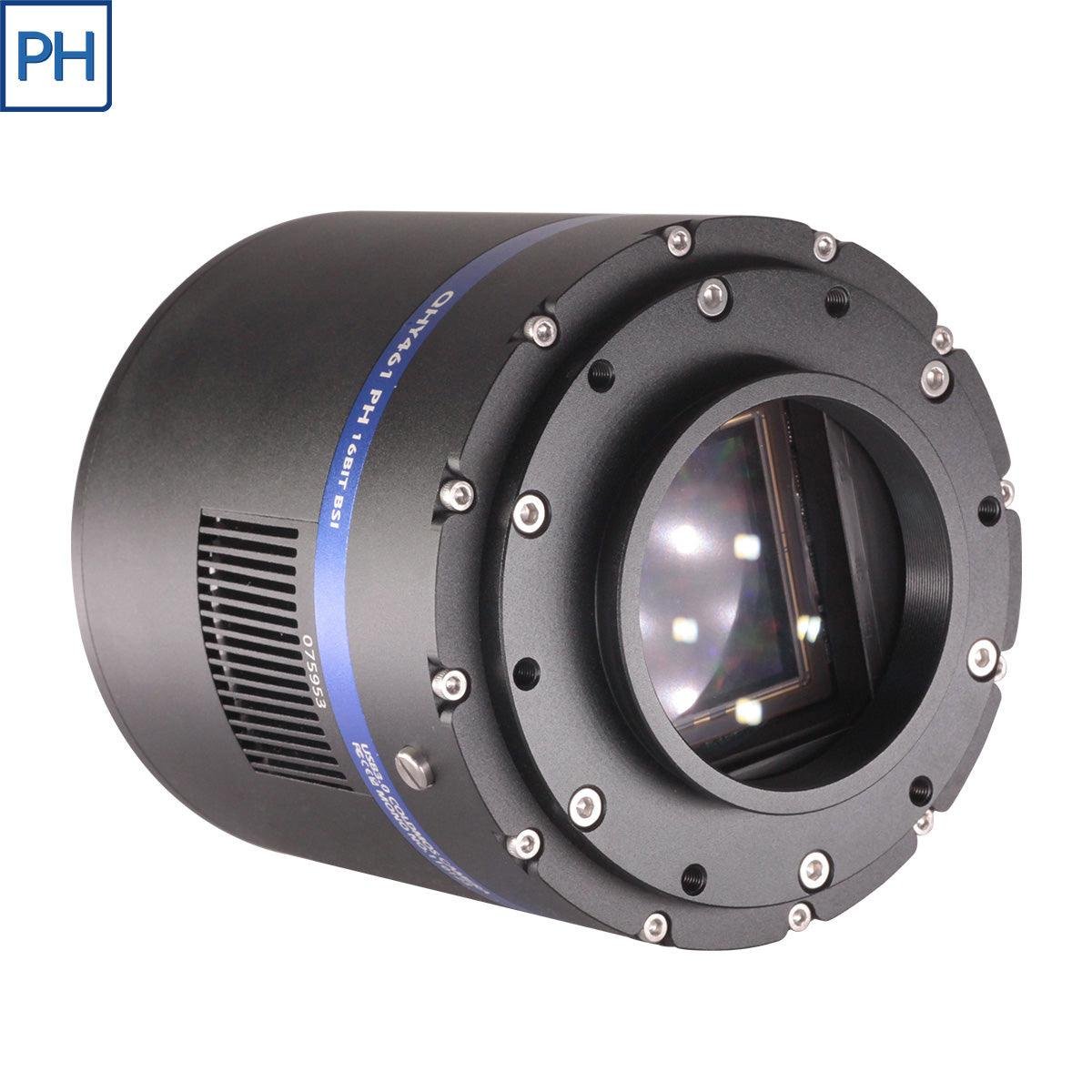

QHY 461M-PH
QHY
From ~$12,807.77
2 stores
The QHY 461M-PH is a high-resolution, back-illuminated monochrome CMOS camera designed for serious astrophotographers and astronomy professionals. Featuring a Sony IMX461 sensor with 102 megapixels and native 16-bit analog-to-digital conversion, it delivers ultra-low readout noise of 1 electron at high gain and exceptional quantum efficiency of up to 90% for maximum sensitivity to dim celestial objects. The compact photographic version offers the same optical performance as larger scientific models with dual-stage thermoelectric cooling, integrated dew prevention, and true RAW image output—making it an ideal medium-format imaging solution for deep-sky surveys and extended exposure work.
Specifications
| Pixel Array | 11656 x 8742 |
| Quantum Efficiency Peak | 90% |
| Readout Speed 16-bit | 1.3 fps |
| Full Well Capacity 3x3 Binned | 408 |
| Image Buffer | 1 |
| Zero Amplifier Glow | ✓ |
| Readout Noise High Gain | 1 |
| Full Well Extended Mode 3x3 | 720 |
| Resolution | 102″ |
| Readout Noise Low Gain | 3.7 |
| Data Interface | USB 3.0 |
| Anti-Dew Heater | ✓ |
| Sensor Size | 44 mm |
| ADC Conversion | 16 |
| Full Well Extended Mode 2x2 | 320 |
| Cooling System | Dual Stage Thermoelectric |
| Back Focal Length | 32.5 mm |
| Full Well Capacity 2x2 Binned | 204 |
| Sensor diagonal | 55 |
| Dark Current Temperature | -20 °C |
| Cooling Capability | 35 °C |
| Color Type | Monochrome |
| Sensor type | Sony IMX461 BSI |
| Full Well Extended Mode Unbinned | 80 |
| Quantum Efficiency Peak Wavelength | 450 |
| Pixel Size | 3.76 μm |
| Full Well Capacity Standard | 50 |
| Readout Speed 8-bit | 2.7 fps |
| Power Supply | 12 V |
| Dark Current | 0.003 |
